Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200AWMSP1T1A1M61RESWITCH TOGGLE SPDT 0.4VA 20V |
4,901 | 0.84 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMSP1T2A1M61RESWITCH TOGGLE SPDT 0.4VA 20V |
1,566 | 0.84 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMSP5T1A1M2QESWITCH TOGGLE SPDT 3A 120V |
4,128 | 0.84 |
|
Datasheet |
200A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

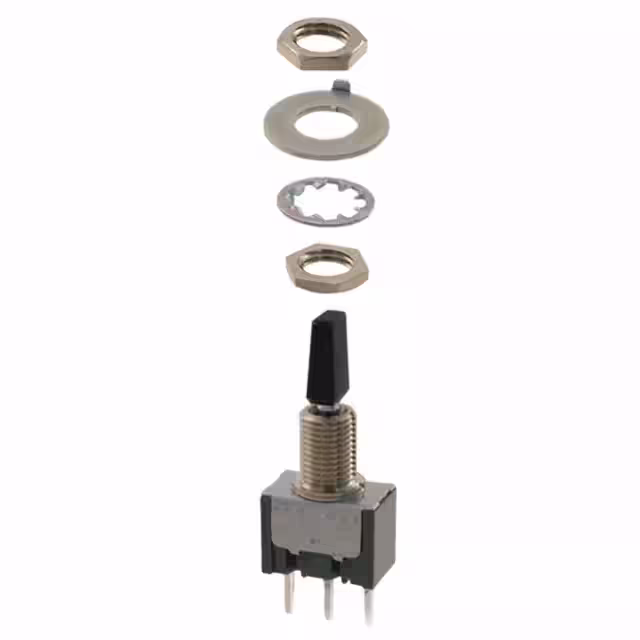

M2013K1S1W03-ASWITCH TOGGLE SPDT 6A 125V |
2,940 | 0.84 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
2S1-MSP1-T1-B4-M2QESWITCH TOGGLE SPDT 3A 125V |
1,319 | 0.76 |
|
- |
2S | Bulk | Active | Through Hole | SPDT | On-On | 3A (AC) | 125 V | 28 V | Standard Round | 9.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
200BWMSP4TAA1SM6RESWITCH TOGGLE SPDT 0.4VA 20V |
4,775 | 0.84 |
|
Datasheet |
200B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP67 - Dust Tight, Waterproof | Black Antistatic Actuator | -30°C ~ 85°C |
|
|
200MDP1T5B4M6QESWITCH TOGGLE DPDT 3A 120V |
2,919 | 0.84 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 7.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34DWMSP41B4M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,270 | - |
|
Datasheet |
34D | Bulk | Active | - | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.69mm | Non-Illuminated | - | - | Solder Lug | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP4T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
2,594 | 0.84 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMDP3T2A2M2RESWITCH TOGGLE DPDT 0.4VA 20V |
2,158 | 0.84 |
|
Datasheet |
200A | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T8B13M2REHSWITCH TOGGLE DPDT 0.4VA 20V |
2,011 | 1.01 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP7T8B13M1RESWITCH TOGGLE DP3T 0.4VA 20V |
2,579 | 0.84 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100SP4T1B4VS31RESWITCH TOGGLE SPDT 0.4VA 20V |
1,863 | 0.84 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T7B18M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
4,577 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.98mm | Non-Illuminated | - | - | Solder Lug | - | - | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T6B11VS3REHSWITCH TOGGLE SPDT 0.4VA 20V |
4,299 | 1.01 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T1B1M2CESWITCH TOGGLE DPDT 5A 120V |
2,762 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP3T1B4VS21RESWITCH TOGGLE SPDT 0.4VA 20V |
3,916 | 0.84 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP1T2B2M7QESWITCH TOGGLE DPDT 3A 120V |
2,295 | 0.84 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1K1B25M2QEHSWITCH TOGGLE DPDT 5A 120V |
2,726 | 1.01 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 14.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T6B12M7RESWITCH TOGGLE SPDT 0.4VA 20V |
1,747 | 0.84 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
