Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATE1F-2M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
4,074 | 0.48 |
|
Datasheet |
ATE | Tray | Active | Through Hole | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
100DP3T3B2VS3QESWITCH TOGGLE DPDT 5A 120V |
1,701 | 0.79 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T8B13M2RESWITCH TOGGLE SPDT 0.4VA 20V |
3,287 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWDP1T1B1M2RESWITCH TOGGLE DPDT 0.4VA 20V |
2,329 | - |
|
Datasheet |
100A | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

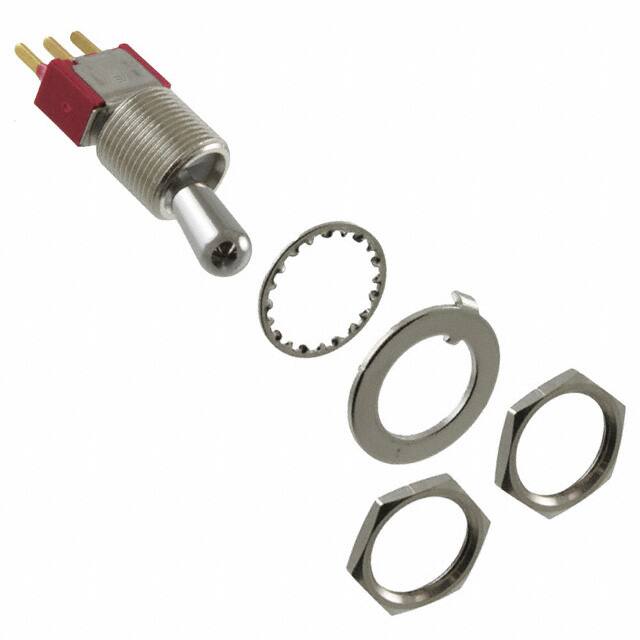

100SP1T7B13M3REHSWITCH TOGGLE SPDT 0.4VA 20V |
4,786 | 0.94 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMD1T5B2M6RESWITCH TOGGLE DPDT 0.4VA 20V |
3,942 | 1.17 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.48mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
100SP4T8B13VS3QESWITCH TOGGLE SPDT 5A 120V |
4,355 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T1B4VS21RESWITCH TOGGLE SPDT 0.4VA 20V |
4,946 | 0.79 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825137-3SWITCH TOGGLE SPDT 5A 120V |
2,669 | 0.78 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T7B13M2REHSWITCH TOGGLE SPDT 0.4VA 20V |
1,507 | 0.94 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T8B13M1QEHSWITCH TOGGLE SPDT 5A 120V |
2,527 | 0.82 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 18.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T3B3M6QESWITCH TOGGLE SPDT 3A 120V |
3,115 | 0.79 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP7T1B1M2QEHSWITCH TOGGLE DP3T 5A 120V |
2,996 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100AWDP6T1B1M1QEHSWITCH TOGGLE DP3T 5A 120V |
4,634 | - |
|
Datasheet |
100A | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ATE1E-5M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
1,182 | 0.48 |
|
Datasheet |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
100SP5T6B11VS3RESWITCH TOGGLE SPDT 0.4VA 20V |
3,011 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
AE101MD1ABSWITCH TOGGLE SPDT 0.4VA 20V |
2,509 | - |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|
|
100SP1T7B13VS2REHSWITCH TOGGLE SPDT 0.4VA 20V |
2,513 | 0.94 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T8B13M2QESWITCH TOGGLE SPDT 5A 120V |
4,036 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

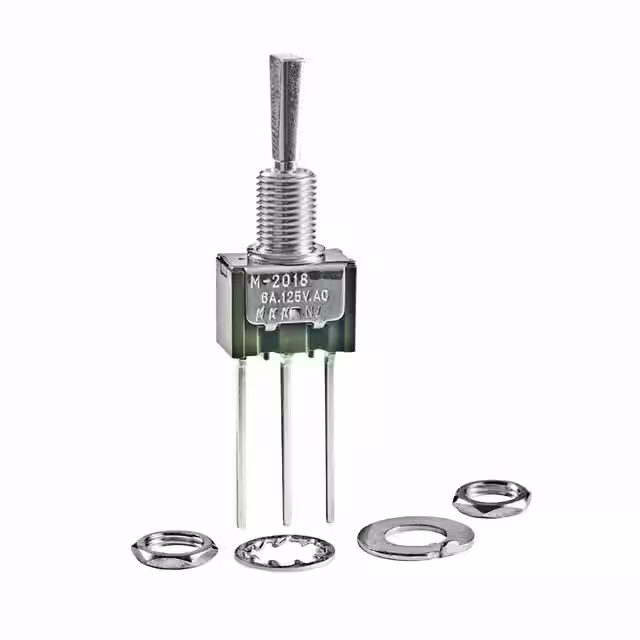

M2018ES1W06SWITCH TOGGLE SPDT 6A 125V |
3,641 | 0.79 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
