Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

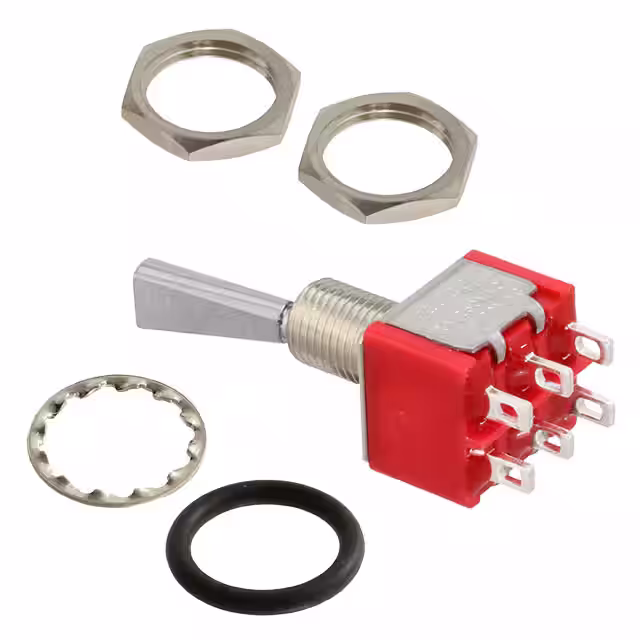

3-1825139-2SWITCH TOGGLE SP3T 5A 120V TE Connectivity ALCOSWITCH Switches |
2,643 | 4.45 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flatted | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

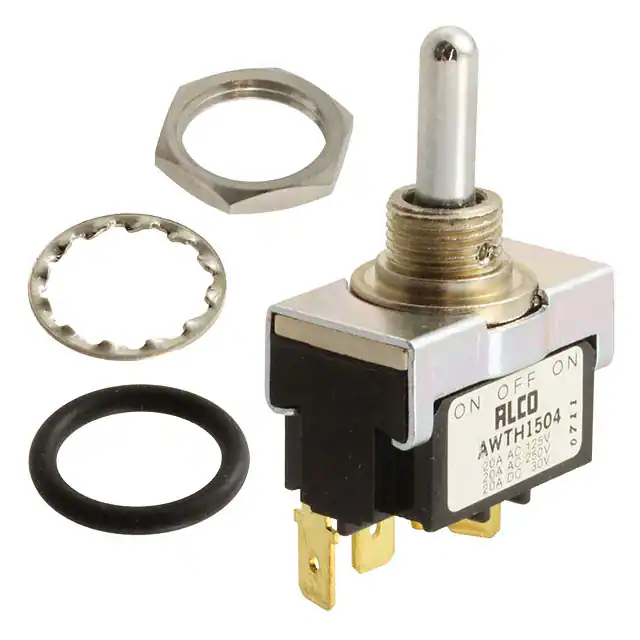

7-6437630-6SWITCH TOGGLE SPDT 20A 125V TE Connectivity ALCOSWITCH Switches |
1,781 | 18.56 |
|
Datasheet |
AW | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
2-1825136-5SWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,973 | 4.98 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

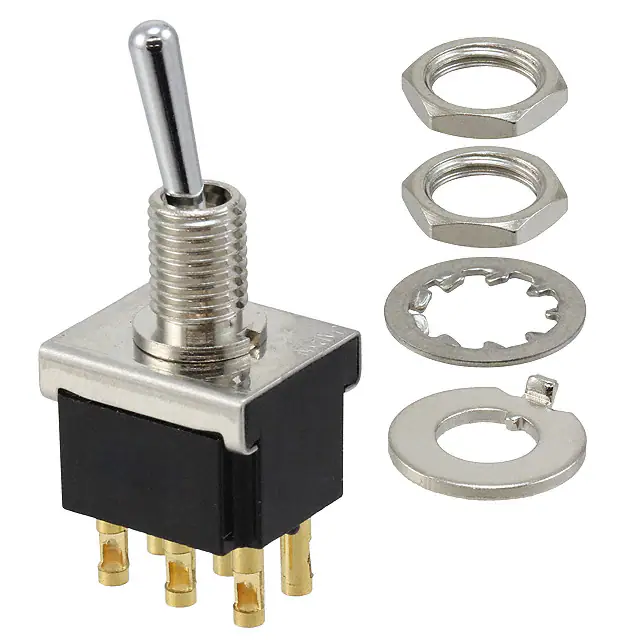

4-6437630-2SWITCH TOGGLE DPDT 6A 250V TE Connectivity ALCOSWITCH Switches |
1,523 | 9.85 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
|
TBS1T2A1MZRESSWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,991 | 3.10 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | SMD (SMT) Tab | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
1-1825138-2SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
2,200 | - |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825139-5SWITCH TOGGLE DPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,059 | 3.68 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825137-7SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
2,694 | 3.06 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825138-5SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
2,292 | 3.12 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 18.03mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825142-8SWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,380 | 3.33 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Process Sealed | -30°C ~ 85°C |
