Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2M1-DP1-T6-B1-M1QESWITCH TOGGLE DPDT 5A 125V |
1,022 | 5.54 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

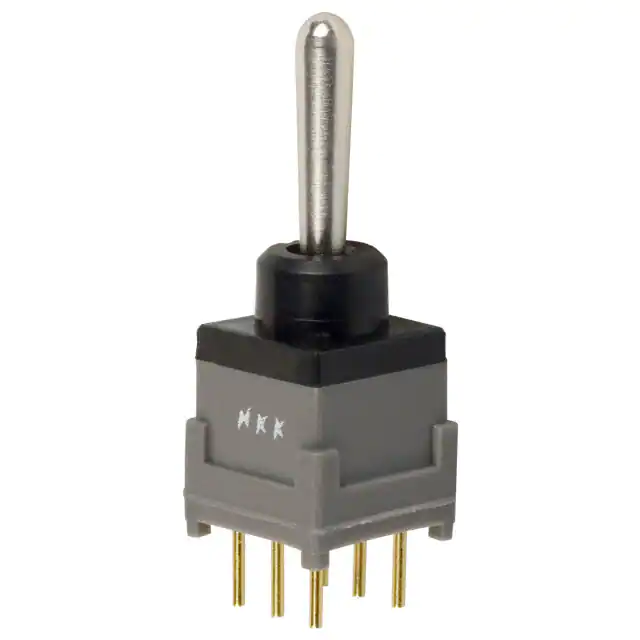

B23APSWITCH TOGGLE DPDT 0.4VA 28V |
1,067 | 4.58 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

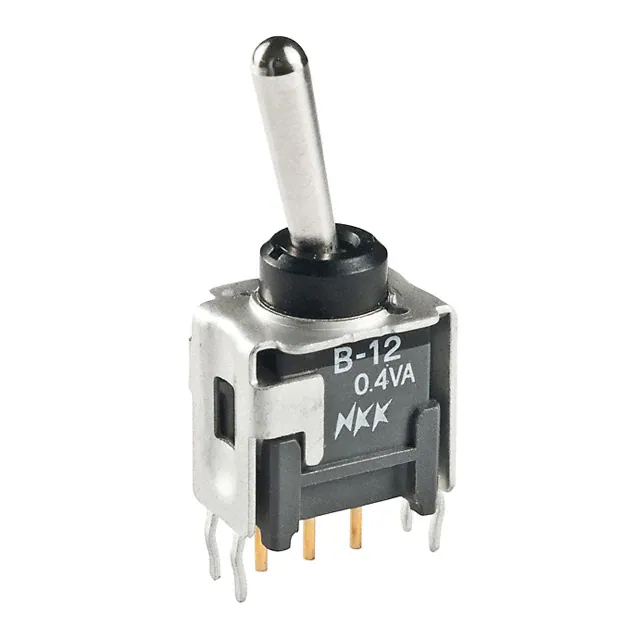

B12ABSWITCH TOGGLE SPDT 0.4VA 28V |
1,724 | 3.74 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

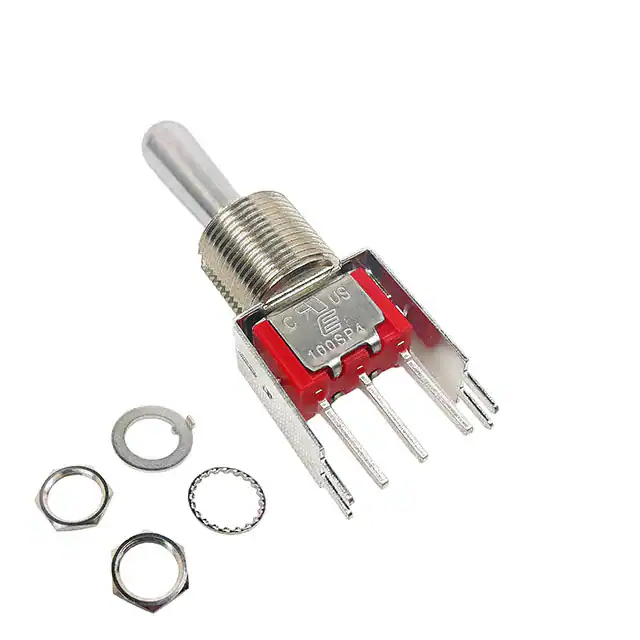

100SP4T8B13VS3QEHSWITCH TOGGLE SPDT 5A 120V |
1,682 | 5.01 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS448F301AHRSWITCH TOGGLE DPST 16A 250V |
1,058 | 4.68 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 250 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|

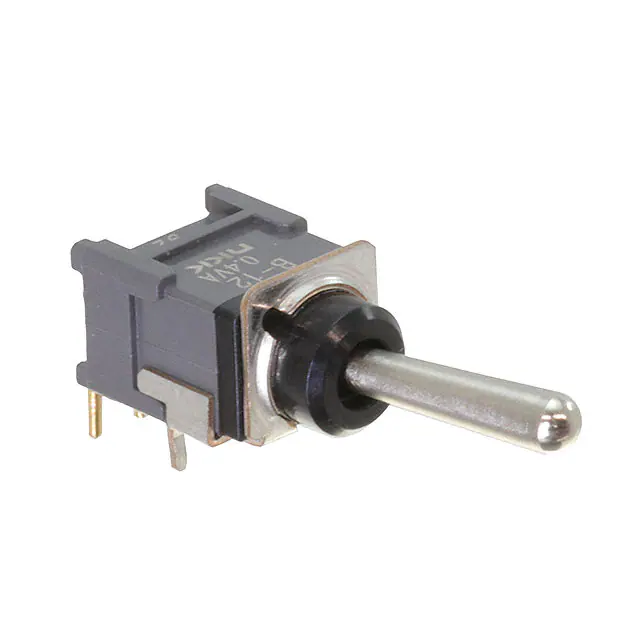

B12AHSWITCH TOGGLE SPDT 0.4VA 28V |
934 | 4.06 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP6T1B1M6QEHSWITCH TOGGLE SP3T 5A 120V |
433 | 3.45 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

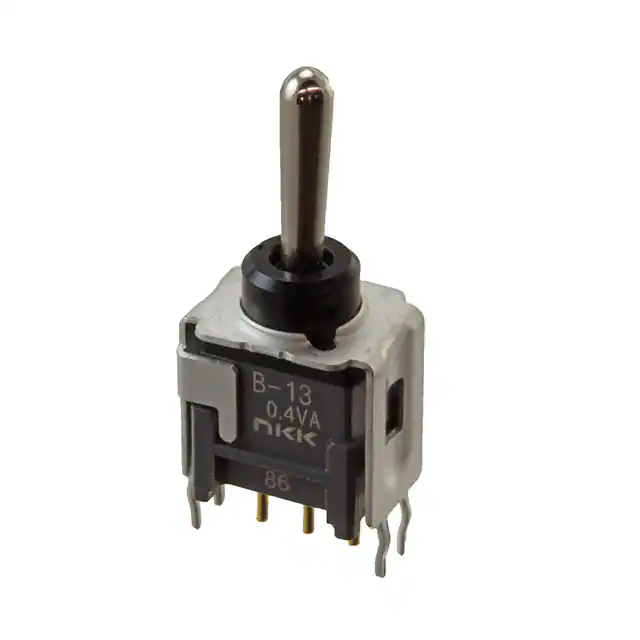

B13ABSWITCH TOGGLE SPDT 0.4VA 28V |
1,347 | 3.86 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1-1825139-8SWITCH TOGGLE DPDT 5A 120V |
156 | 4.94 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

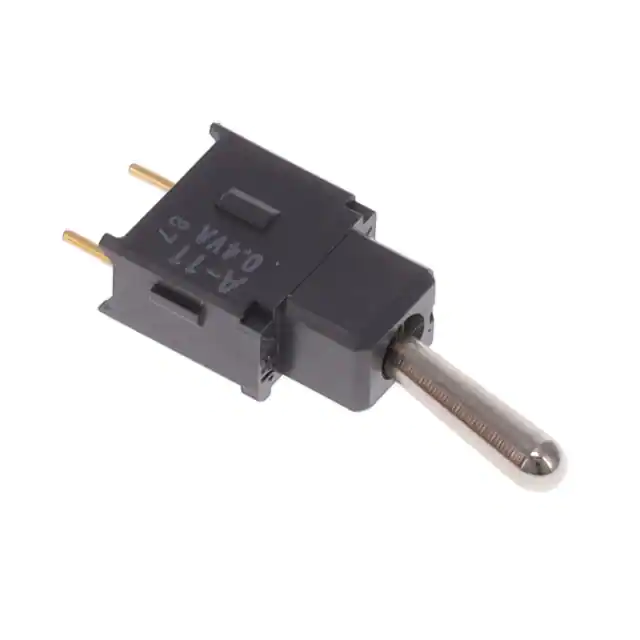

A11APSWITCH TOGGLE SPST 0.4VA 28V |
286 | 3.82 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

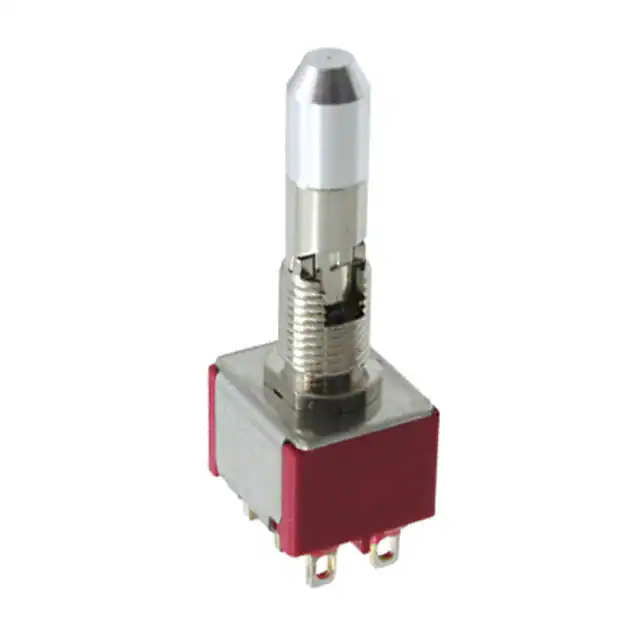

100DP6K2B25M1QESWITCH TOGGLE SP3T 5A 120V |
398 | 5.31 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 14.73mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
GTS448E101AHRSWITCH TOGGLE DPDT 12A 250V |
374 | 4.74 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 12A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS448B101A1HRSWITCH TOGGLE DPDT 12A 250V |
871 | 4.90 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | On-On | 12A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
1-1825138-5SWITCH TOGGLE DPDT 5A 120V |
228 | 5.10 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flatted | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

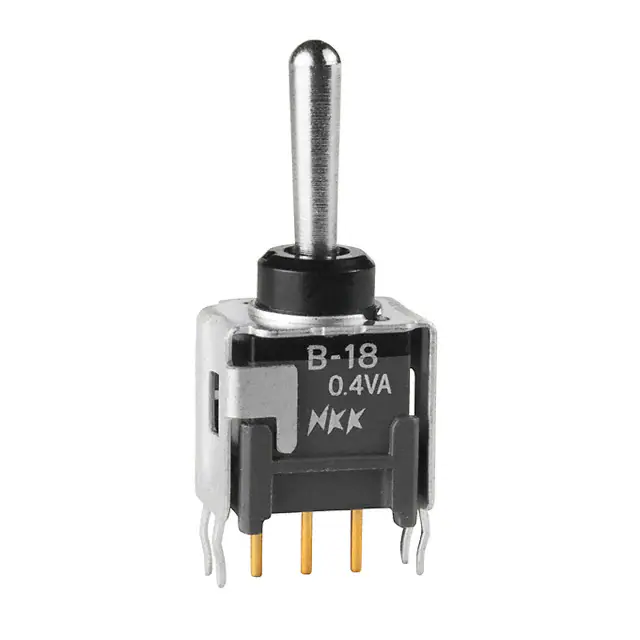

B18ABSWITCH TOGGLE SPDT 0.4VA 28V |
550 | 4.38 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

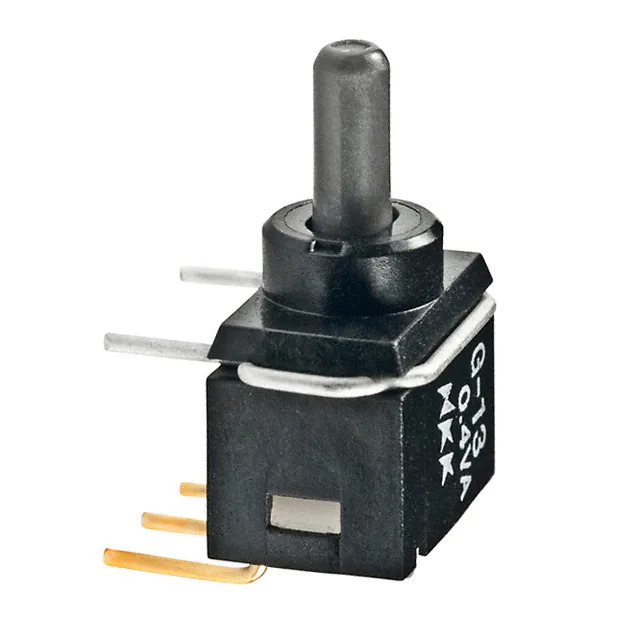

G13AHSWITCH TOGGLE SPDT 0.4VA 28V |
133 | 4.72 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

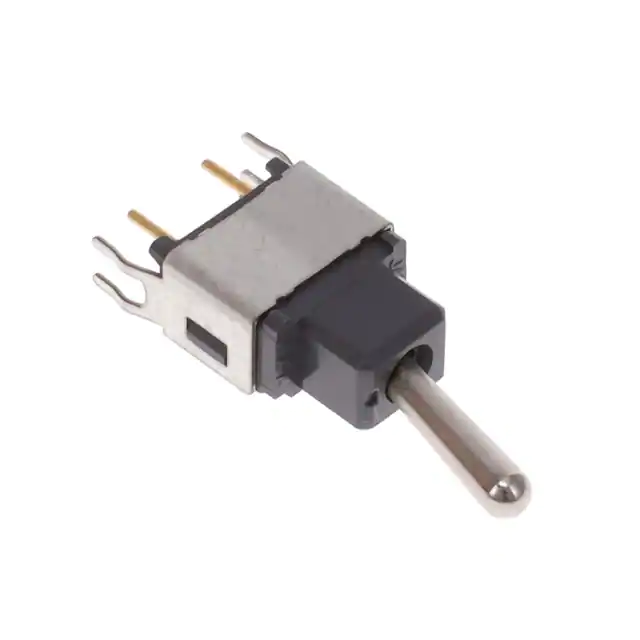

A11ABSWITCH TOGGLE SPST 0.4VA 28V |
381 | 4.22 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

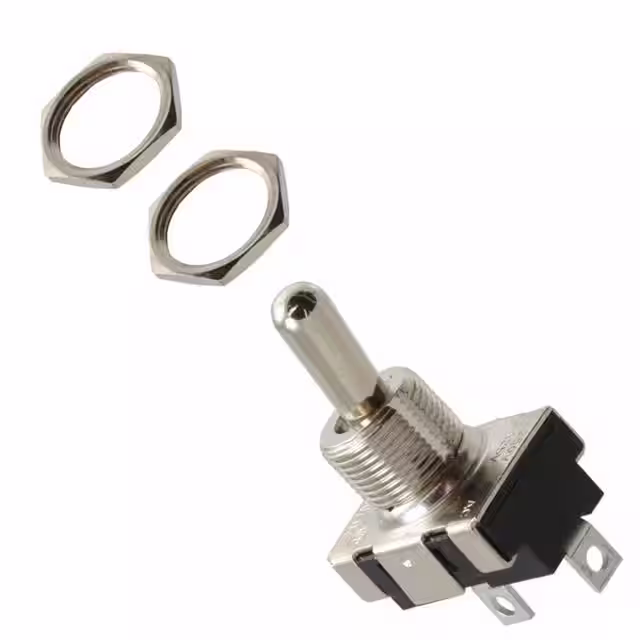

7105DSWITCH TOGGLE SPST 6A 125V |
256 | 4.57 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
GTS448B301AHRSWITCH TOGGLE DPDT 12A 250V |
815 | 6.21 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | On-On | 12A (AC) | 250 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|

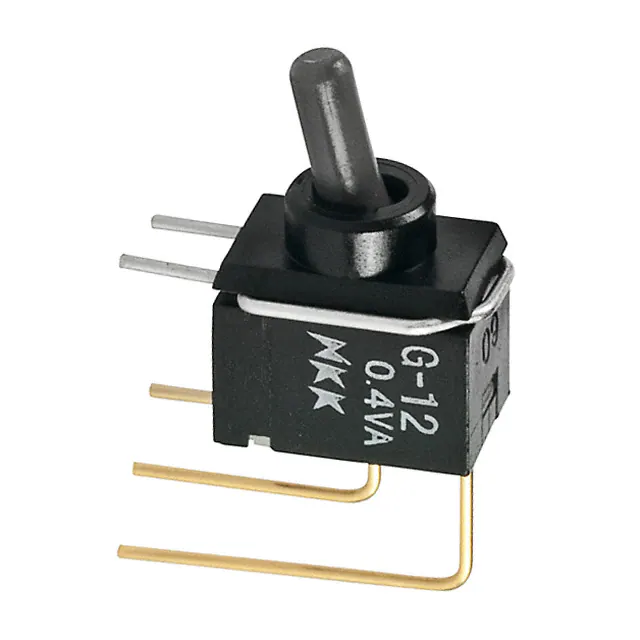

G12AVSWITCH TOGGLE SPDT 0.4VA 28V |
653 | 4.46 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
