Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

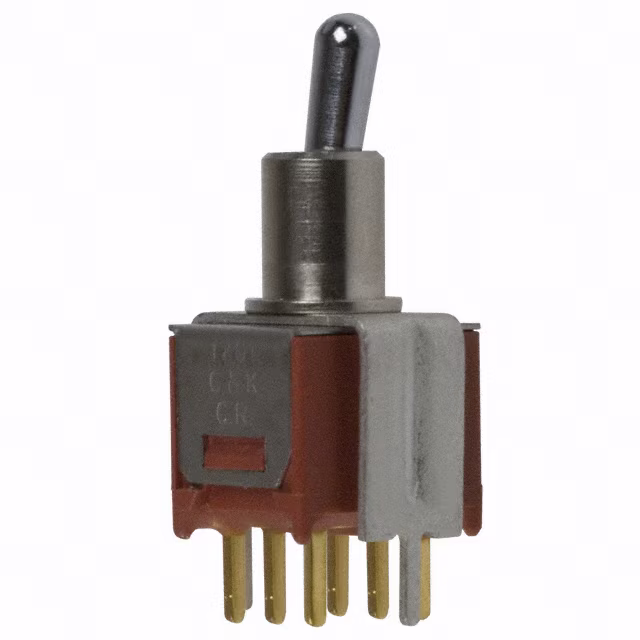

T201MH9V3BESWITCH TOGGLE DPDT 0.4VA 20V |
2,680 | 2.85 |
|
Datasheet |
T | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7205TCWZQESWITCH TOGGLE DPDT 5A 120V |
4,673 | 3.71 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203MD9V3BESWITCH TOGGLE DPDT 0.4VA 20V |
1,553 | 2.93 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL39WW05000SWITCH TOGGLE SPDT 0.4VA 20V |
4,533 | 2.61 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

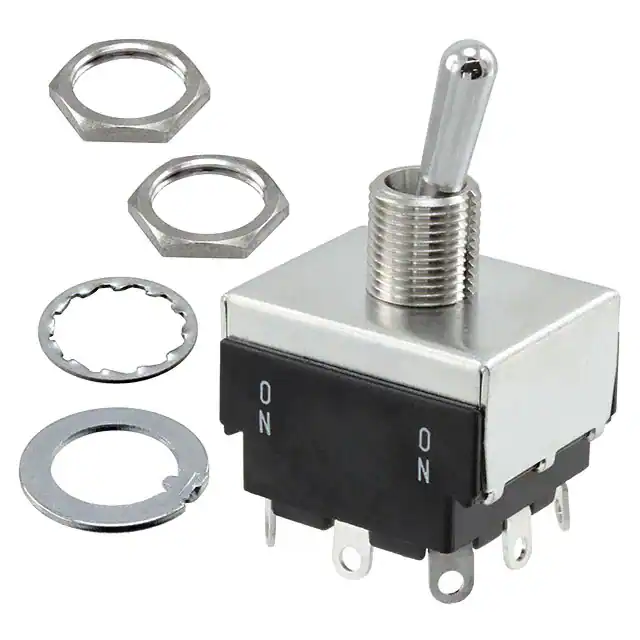

ET310E12-ZSWITCH TOGGLE 3PDT 10A 125V |
3,341 | 2.35 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
|
7203SH3ZQESWITCH TOGGLE DPDT 5A 120V |
1,547 | 2.39 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

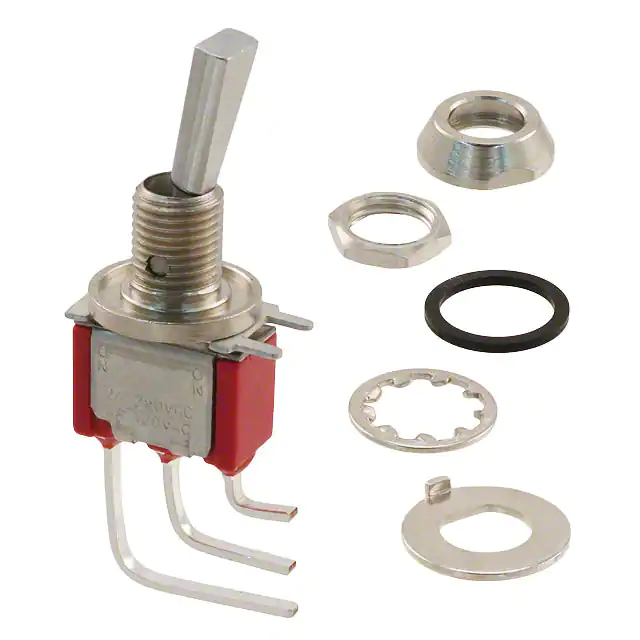

7108P3CWAV2QESWITCH TOGGLE SPDT 5A 120V |
3,438 | 3.04 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E201MD9V3GESWITCH TOGGLE DPDT 7.5A 125V |
1,688 | 2.71 |
|
Datasheet |
E | Bulk | Active | Through Hole | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

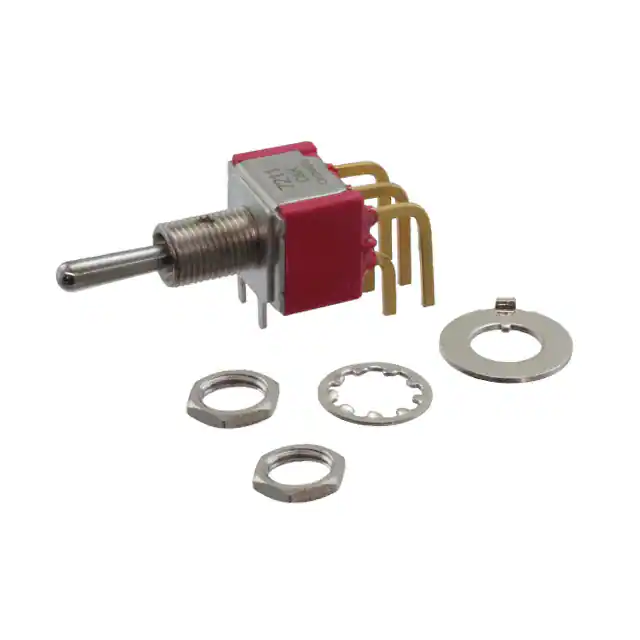

7211SPYABESWITCH TOGGLE SP3T 0.4VA 20V |
4,696 | 3.39 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

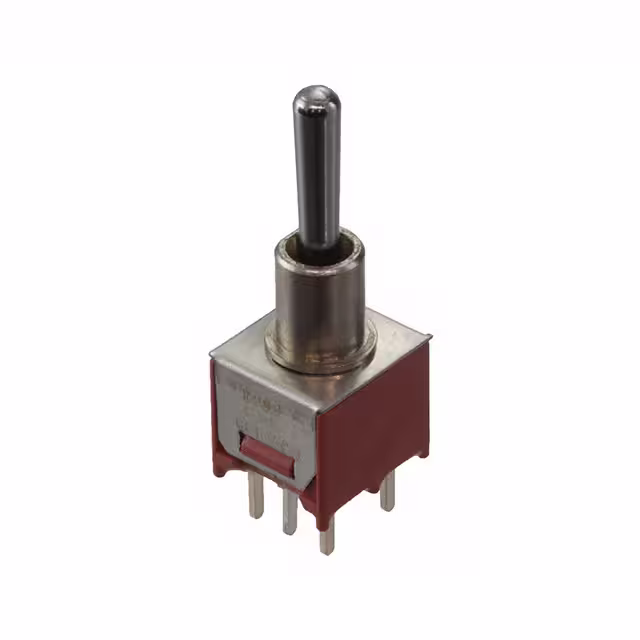

T203SH9CQESWITCH TOGGLE DPDT 2A 120V |
1,924 | 2.62 |
|
Datasheet |
T | Tray | Active | Through Hole | DPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T203SHCQESWITCH TOGGLE DPDT 2A 120V |
2,294 | 3.19 |
|
Datasheet |
T | Tray | Active | Panel Mount | DPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5656AB1VSWITCH TOGGLE 3PDT 6A 125V |
2,130 | 4.00 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 14.85mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
E215SD1CBESWITCH TOGGLE SP3T 0.4VA 20V |
1,934 | 2.89 |
|
Datasheet |
E | Bulk | Active | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7207MHWBESWITCH TOGGLE DPDT 0.4VA 20V |
1,456 | 3.21 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401K2CBESWITCH TOGGLE 4PDT 0.4VA 20V |
4,610 | 3.97 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
U21K2CQESWITCH TOGGLE DPDT 5A 120V |
2,222 | 3.28 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

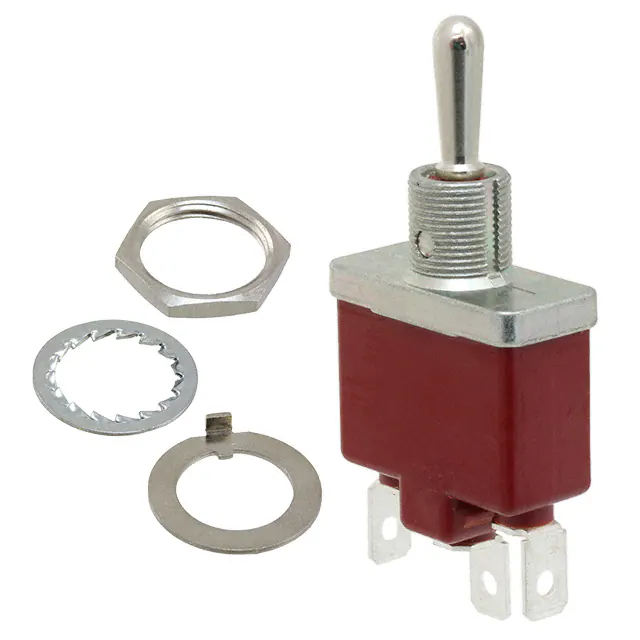

CT37021N020SWITCH TOGGLE SPDT 10A 125V |
1,550 | 6.11 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
55049-01SWITCH TOGGLE SPST-NC 15A 24V |
1,838 | 3.88 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST-NC | On-Mom | 15A (DC) | - | 24 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
7201K2AQEGSWITCH TOGGLE DPDT 5A 120V |
3,082 | 3.83 |
|
Datasheet |
7000 | Bag | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

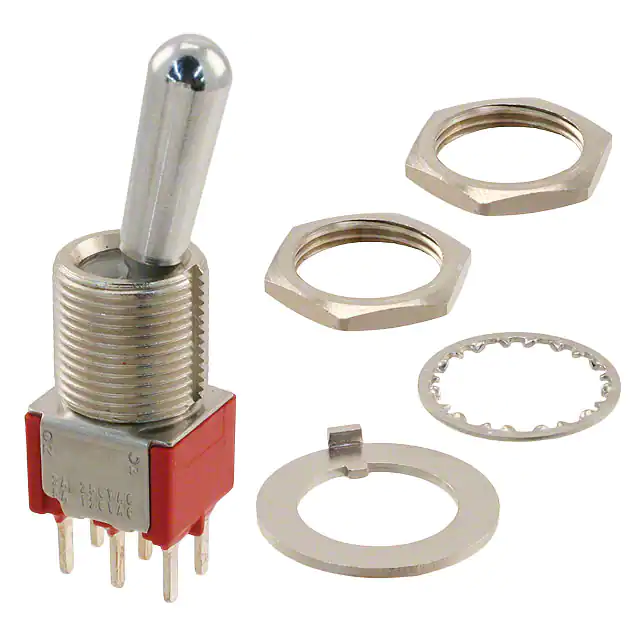

7201TCWCQESWITCH TOGGLE DPDT 5A 120V |
1,450 | 3.48 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
