Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS123SZQ2SWITCH TOGGLE SPDT 6A 125V |
1,733 | 4.51 |
|
Datasheet |
TS | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Knurled Cap | 10.87mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.53mm Dia | 11/16-28 | IP67 - Dust Tight, Waterproof | Black Actuator | -30°C ~ 85°C |
|

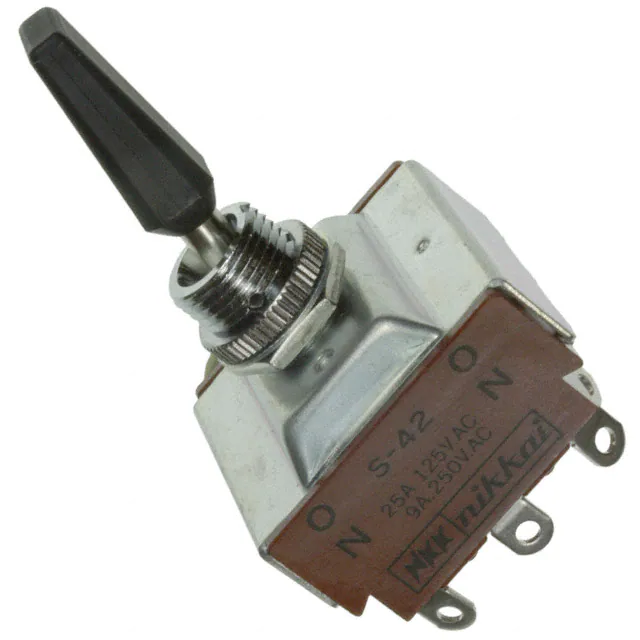

S42RSWITCH TOGGLE 4PDT 20A 125V |
4,761 | 4.02 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

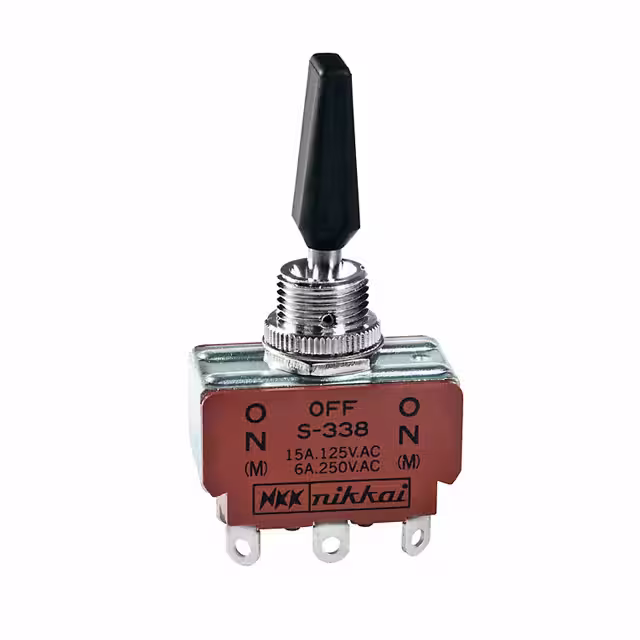

S338RSWITCH TOGGLE DPDT 15A 125V |
4,932 | 4.08 |
|
Datasheet |
S300R | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Actuator | -10°C ~ 70°C |
|
S339RSWITCH TOGGLE DPDT 15A 125V |
2,140 | 4.08 |
|
Datasheet |
S300R | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Actuator | -10°C ~ 70°C |
|

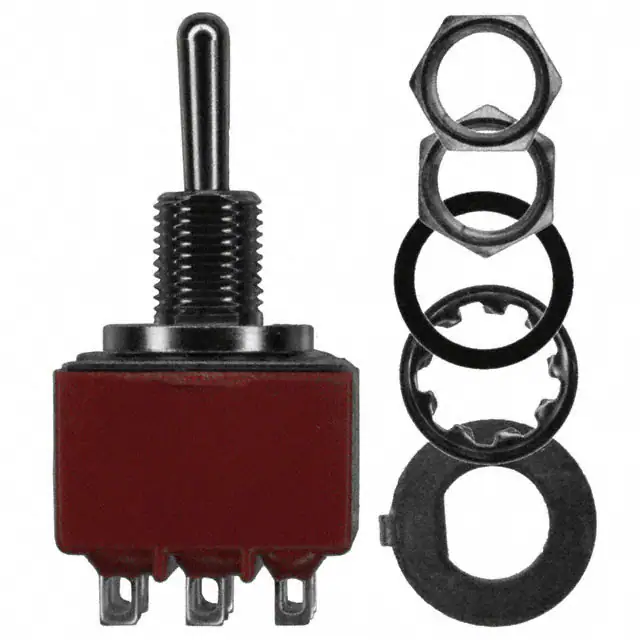

7301SPCWZQESWITCH TOGGLE 3PDT 5A 120V |
4,728 | 2.96 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S423TSWITCH TOGGLE DPDT 20A 125V |
1,554 | 4.14 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
55017SWITCH TOGGLE DPST 15A 24V |
2,019 | 3.46 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
55025SWITCH TOGGLE SPST 15A 24V |
2,907 | 5.08 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 24 V | Standard Round | 15.24mm | Non-Illuminated | - | - | Wire Leads | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|

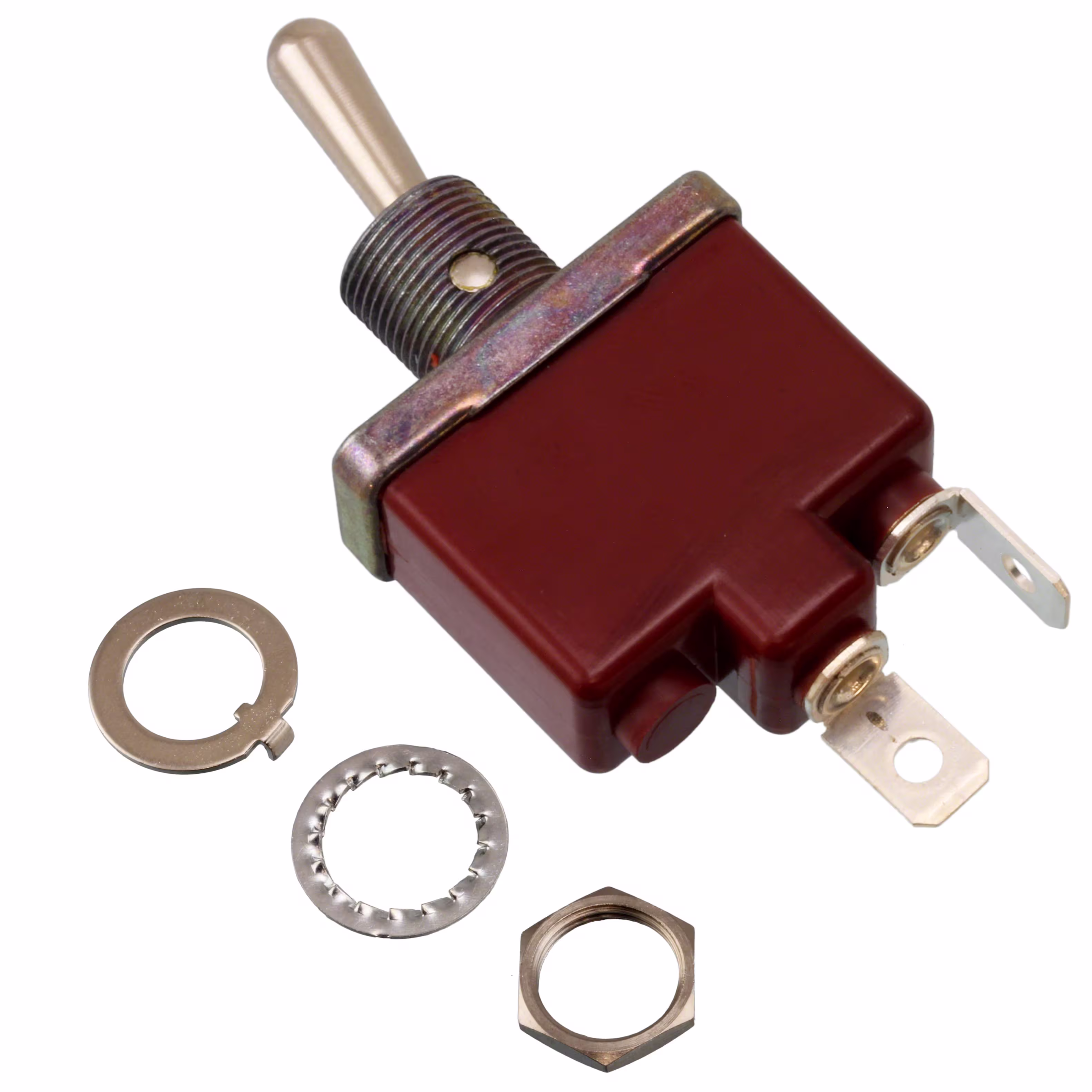

CT31021N000SWITCH TOGGLE SPST 10A 125V |
4,848 | 4.76 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|

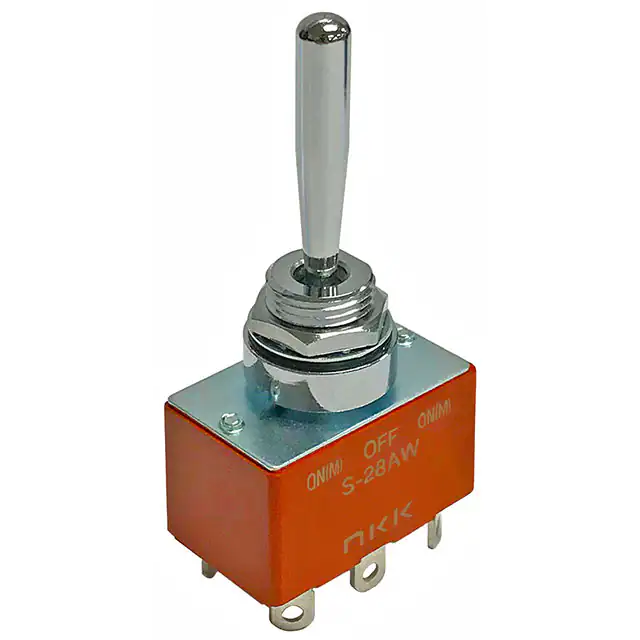

S28AW30SWITCH TOGGLE DPDT 15A 125V |
2,535 | 4.29 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 30.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
MTG206NSWITCH TOGGLE DPDT 6A 125V |
1,084 | 5.37 |
|
Datasheet |
MTG Green | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
641H/2KSWITCH TOGGLE DPST 15A 250V |
4,758 | 3.72 |
|
Datasheet |
600H | Tray | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Front Panel Sealing | -20°C ~ 55°C |
|
55036SWITCH TOGGLE SPDT 15A 24V |
3,087 | 5.21 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Wire Leads | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
.jpg)
|
S43SWITCH TOGGLE 4PDT 20A 125V |
4,865 | 4.41 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

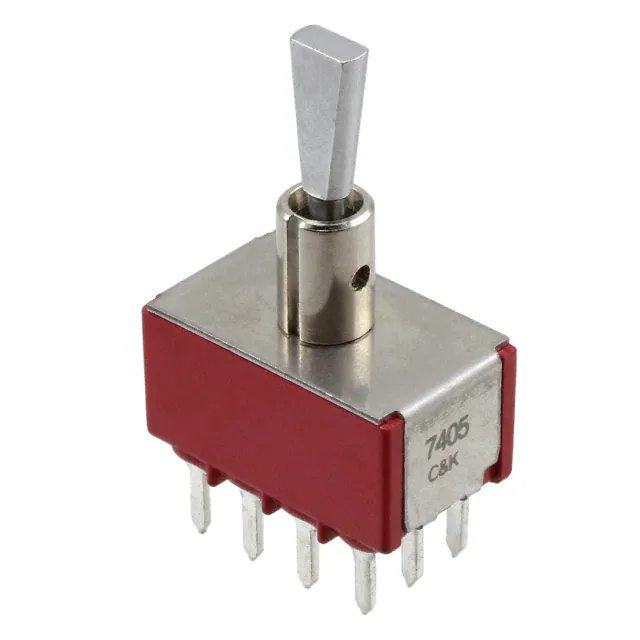

7405P3Y9CPESWITCH TOGGLE 4PDT 0.4VA 20V |
2,309 | 6.22 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401SDCQESWITCH TOGGLE 4PDT 5A 120V |
1,008 | 4.91 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

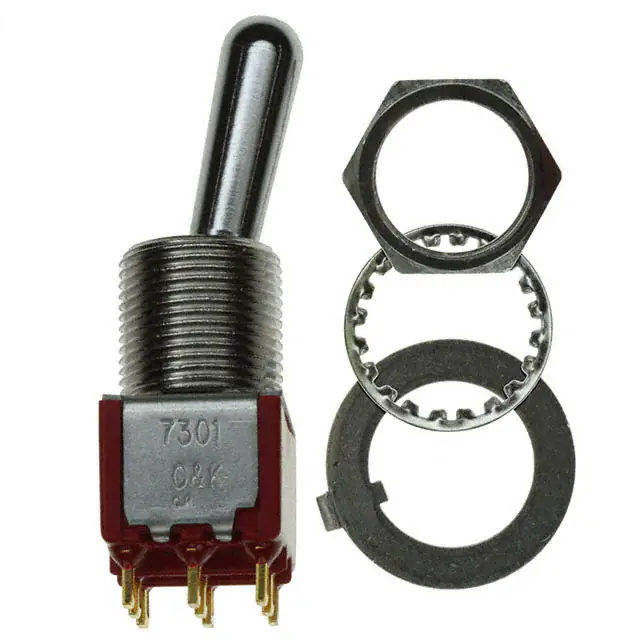

7301TZGESWITCH TOGGLE 3PDT 5A 120V |
3,687 | 4.74 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

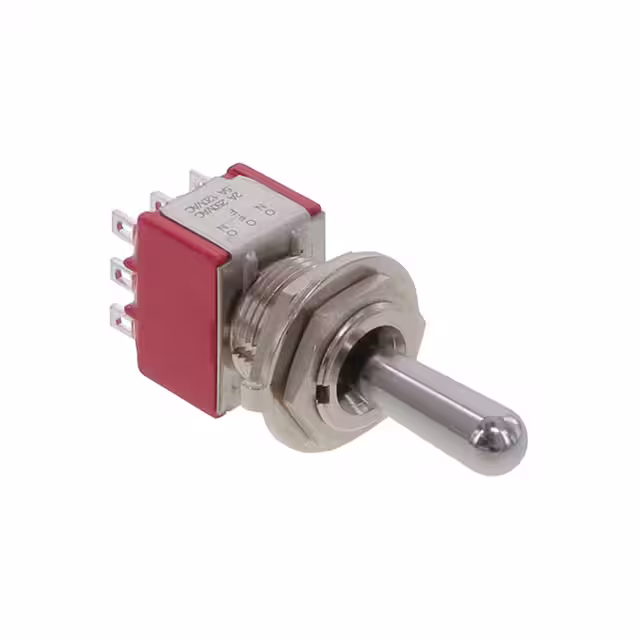

7303TZQESWITCH TOGGLE 3PDT 5A 120V |
4,316 | 4.13 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

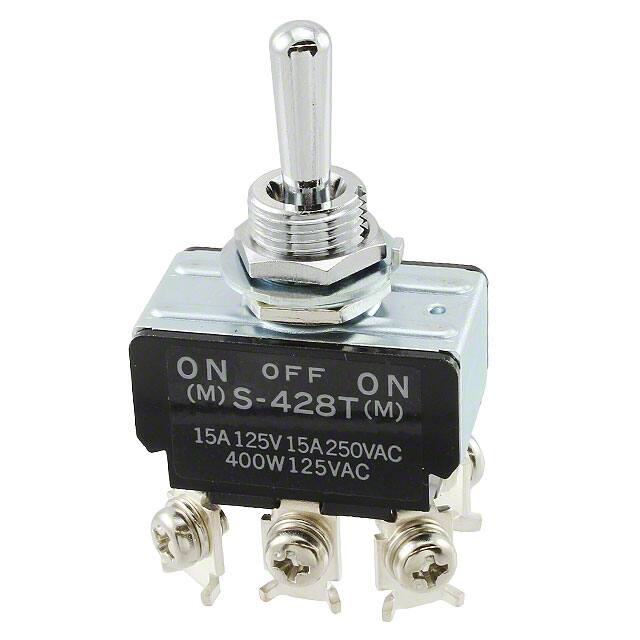

S428TSWITCH TOGGLE DPDT 15A 125V |
2,026 | 4.57 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
3631NF/2SWITCH TOGGLE SPST 6A 125V |
3,423 | 5.52 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
