Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

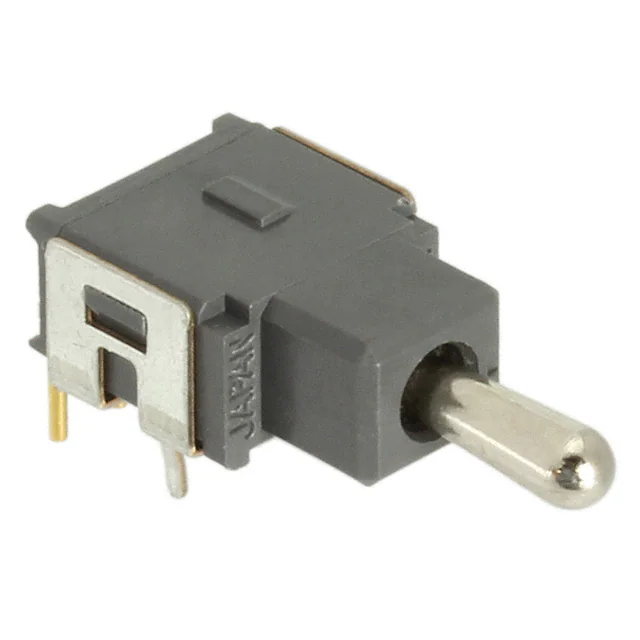

A1SJHSWITCH TOGGLE SPDT 0.4VA 28V |
2,198 | 1.31 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
G19AVSWITCH TOGGLE SPDT 0.4VA 28V |
4,094 | 1.27 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
8GA2012-ZSWITCH TOGGLE DPDT 6A 125V |
1,872 | 1.11 |
|
Datasheet |
8GA | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|
8C1021-ZSWITCH TOGGLE SPDT 6A 125V |
1,625 | 0.91 |
|
Datasheet |
8C | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
G3T13ABSWITCH TOGGLE SPDT 0.4VA 28V |
1,792 | 1.31 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
A23APSWITCH TOGGLE DPDT 0.4VA 28V |
3,018 | 1.33 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
G3T13AHSWITCH TOGGLE SPDT 0.4VA 28V |
2,144 | 1.33 |
|
Datasheet |
G3T | Tray | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

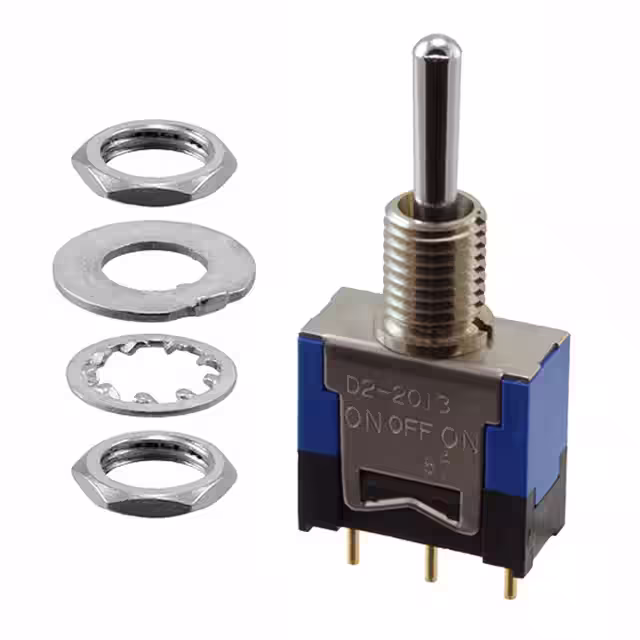

D22013PSWITCH TOGGLE SPDT 0.4VA 48V |
2,131 | 1.33 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
8A2011C-ZSWITCH TOGGLE DPDT 25MA 20V |
2,149 | 1.27 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

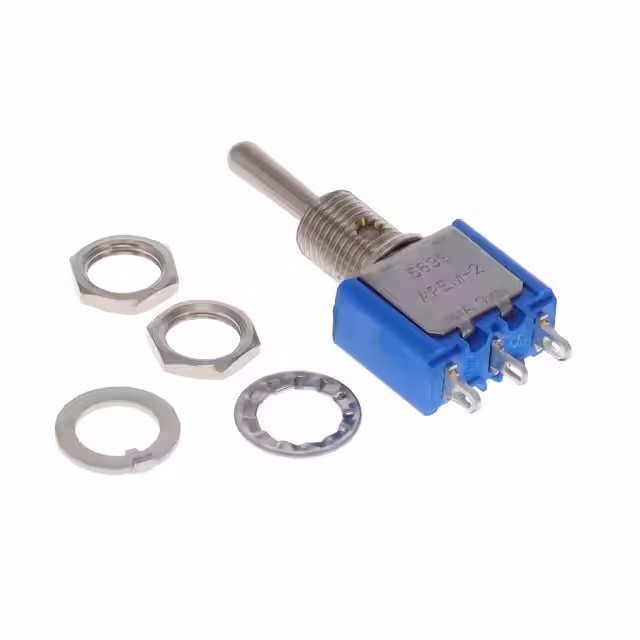

5639ASWITCH TOGGLE SPDT 6A 125V |
3,905 | 1.52 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

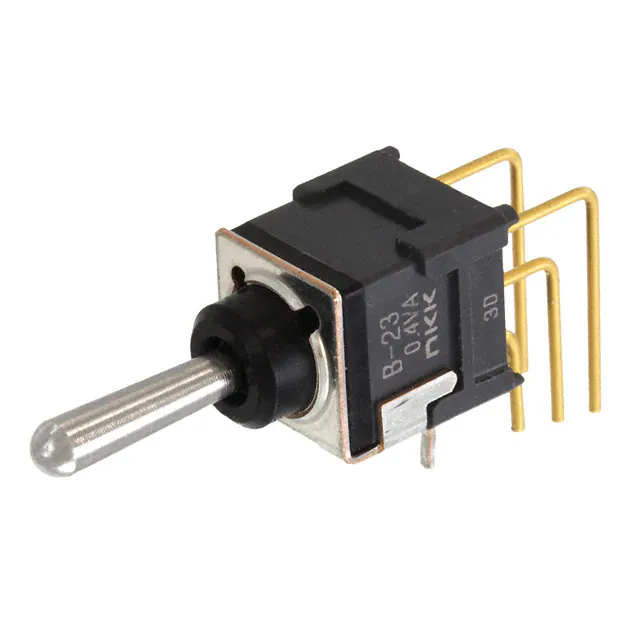

B23AVSWITCH TOGGLE DPDT 0.4VA 28V |
1,426 | 1.34 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

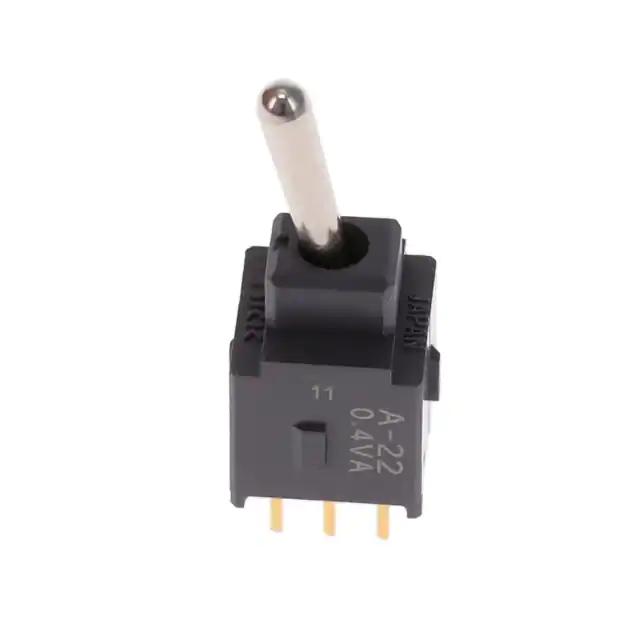

A22APSWITCH TOGGLE DPDT 0.4VA 28V |
2,832 | 1.34 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
8E1021C-ZSWITCH TOGGLE SPDT 25MA 20V |
2,320 | 1.69 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | SPDT | On-Off-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

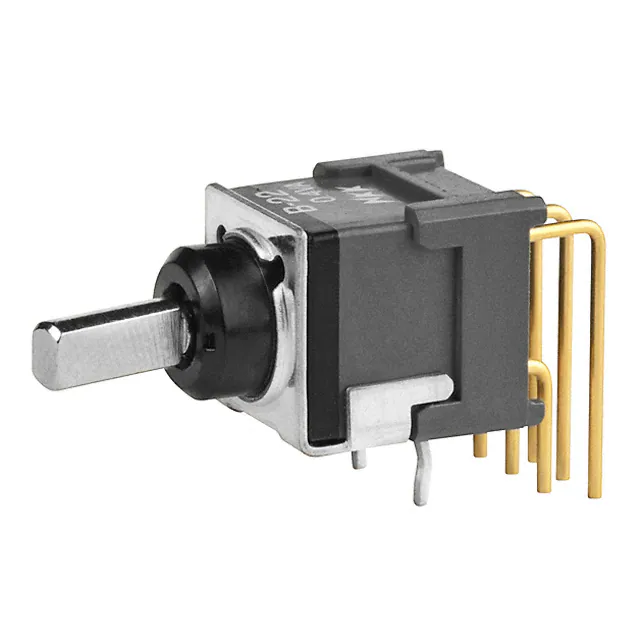

B22HHSWITCH TOGGLE DPDT 0.4VA 28V |
4,670 | 1.37 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-SP3-T8-B0-M2QESWITCH TOGGLE SPDT 5A 125V |
2,355 | 1.58 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET110D12-ZSWITCH TOGGLE SPDT 10A 125V |
4,543 | 1.17 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

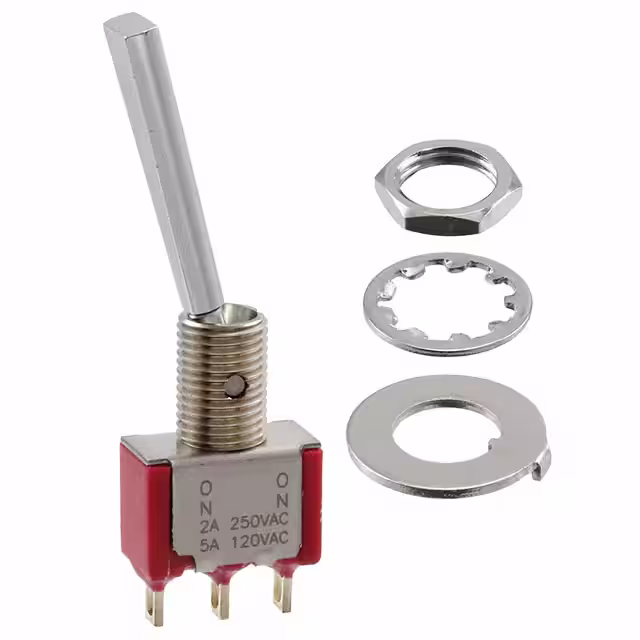

7101P1YZQESWITCH TOGGLE SPDT 5A 120V |
2,671 | 2.24 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

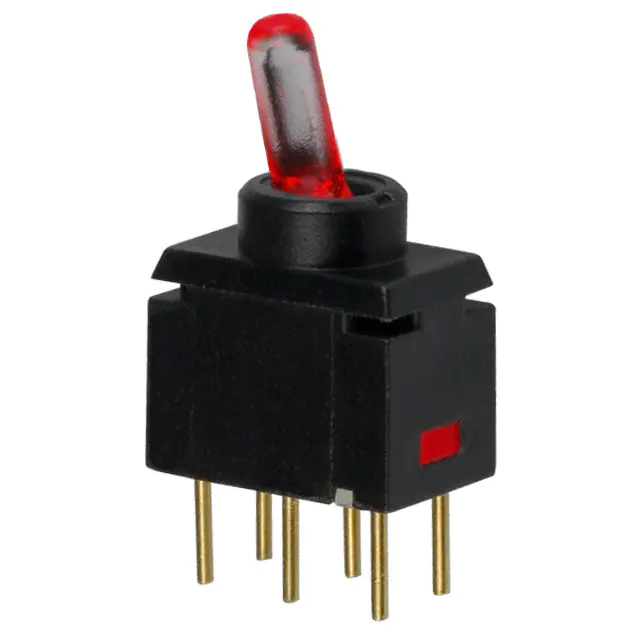

G12JPCSWITCH TOGGLE SPDT 0.4VA 28V |
2,073 | 1.41 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Red | 2 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

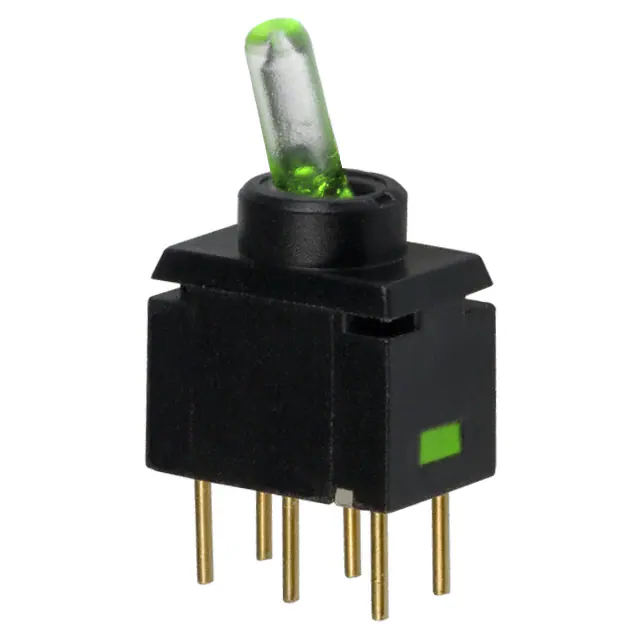

G12JPFSWITCH TOGGLE SPDT 0.4VA 28V |
4,314 | 1.41 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Green | 2.1 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

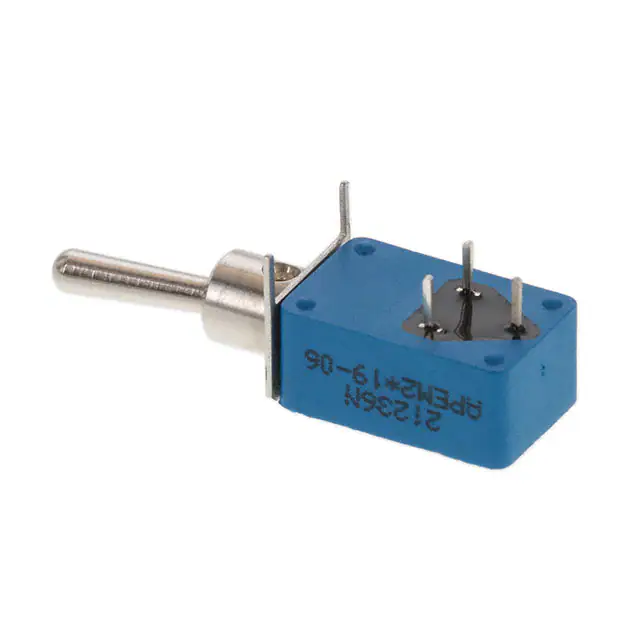

21236NASWITCH TOGGLE SPDT 4A 125V |
2,921 | 1.60 |
|
Datasheet |
21000N | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | - | -40°C ~ 85°C |
