Liquid Cooling, Heating
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Product Type | Power - Cooling | Current | Voltage | Flow Rate | Power Input | Thermal Resistance @ GPM | Fluid Capacity | Operating Temperature | Connection Type | Weight | Dimensions - Overall | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
385901-001NRC400-T0-00-PC1 Laird Thermal Systems, Inc. |
4,274 | 608.12 |
|
Datasheet |
Nextreme™ | Box | Obsolete | Active, Recirculating Chiller | 400 W | - | 100 ~ 230VAC | - | - | - | 1000ML (33.8 oz) | 10°C ~ 40°C | - | - | 16.26" L x 10.79" W x 15.75" H (413.0mm x 274.0mm x 400.0mm) | CE, UL |
|

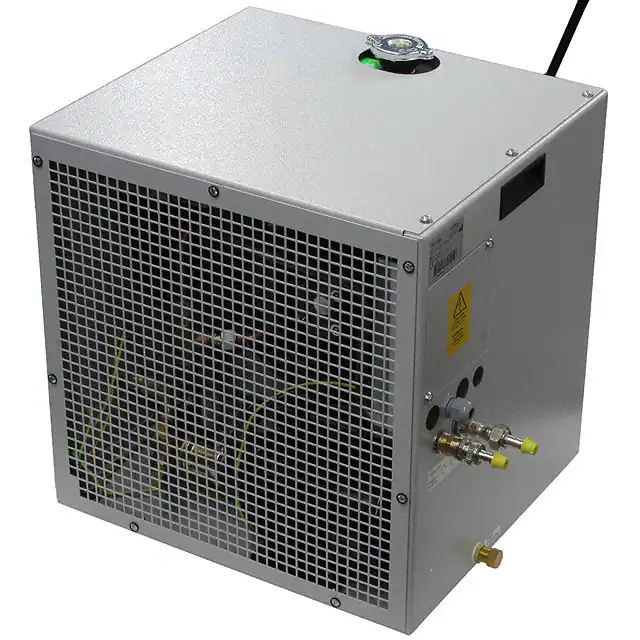

1515.00HEAT EXCHANGER 230V 4LPM 1500W Laird Thermal Systems, Inc. |
1,474 | - |
|
Datasheet |
WL | Box | Obsolete | Active, Heat Exchanger | 1500 W | 2.5 A | 230VAC | 1.06GPM (4.0LPM) | - | - | 3000ML (101.4 oz) | 5°C ~ 40°C | 9mm Press Fit | 85 lbs (38.6 kg) | 18.86" L x 15.67" W x 18.94" H (479.0mm x 398.0mm x 481.0mm) | - |
|

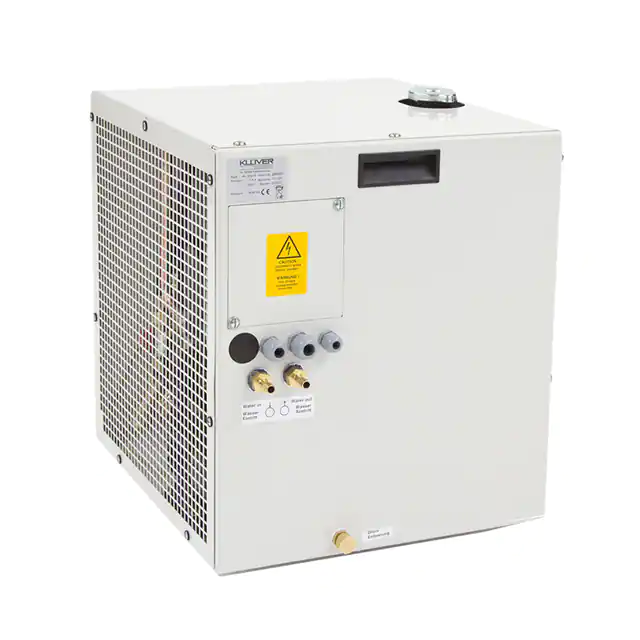

387002779HEAT EXCHANGE LIQUID - AIR 3000W Laird Thermal Systems, Inc. |
1,547 | 855.47 |
|
Datasheet |
WL | Box | Discontinued at Digi-Key | Active, Recirculating Chiller | 3000 W | 2.5 A | 230VAC | - | - | - | 3700ML (125.1 oz) | 5°C ~ 40°C | 9mm Press Fit | 85 lbs (38.6 kg) | 18.86" L x 15.67" W x 17.48" H (479.0mm x 398.0mm x 444.0mm) | - |
|

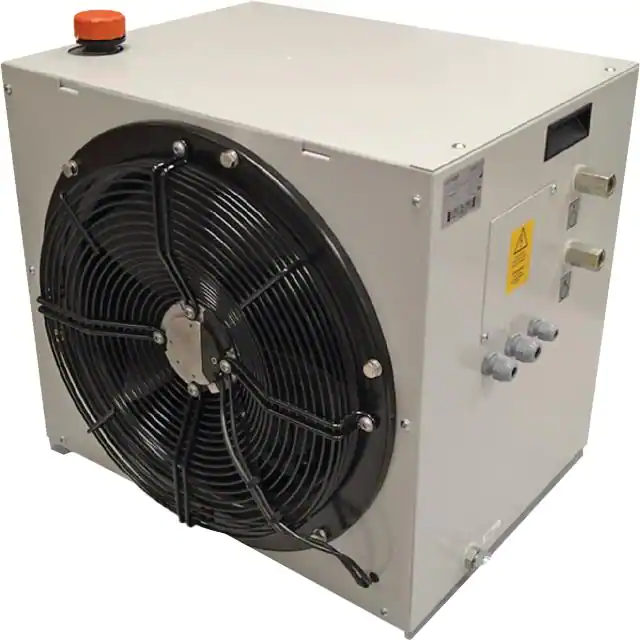

387009381LA5000 5000W HEAT EXCHANGER L TO Laird Thermal Systems, Inc. |
4,008 | 946.88 |
|
Datasheet |
WL | Box | Obsolete | Active, Heat Exchanger | 5000 W | 3.3 A | 200 ~ 240VAC | 1.06GPM (4.0LPM) | - | - | 6200ML (209.6 oz) | 5°C ~ 40°C | - | - | 22.24" L x 18.43" W x 20.83" H (565.0mm x 468.0mm x 529.0mm) | - |
|
1104.00LIQUID TO LIQUID HEAT EXCHANGER Laird Thermal Systems, Inc. |
1,928 | - |
|
Datasheet |
- | Bulk | Obsolete | Active, Heat Exchanger | 3000 W | 1.8 A | 230VAC | 1.06GPM (4.0LPM) | - | - | 8500ML (287.4 oz) | 0°C ~ 40°C | - | 53 lbs (24 kg) | 17.72" L x 10.63" W x 15.75" H (450.0mm x 270.0mm x 400.0mm) | - |
|
|
387002779.03HEAT EXCHANGE LIQUID - AIR 3000W Laird Thermal Systems, Inc. |
1,707 | - |
|
- |
WL | Bulk | Active | Active, Recirculating Chiller | 3000 W | 2.5 A | 230VAC | 1.59GPM (6.0LPM) | - | - | 3700ML (125.1 oz) | 5°C ~ 40°C | 9mm Press Fit | - | 17.48" L x 15.67" W x 18.94" H (444.0mm x 398.0mm x 481.0mm) | - |
|
385912-029NRC5000-A1-20-ST1 Laird Thermal Systems, Inc. |
1,933 | 2817.90 |
|
Datasheet |
Nextreme™ | Box | Obsolete | Active, Recirculating Chiller | 5000 W | - | 200 ~ 240V | 3.96GPM (15.0LPM) | - | - | 5000ML (169.1 oz) | 15°C ~ 40°C | - | 220 lbs (99.8 kg) | 24.90" L x 23.00" W x 31.90" H (632.0mm x 583.0mm x 809.0mm) | CE, UL |
|

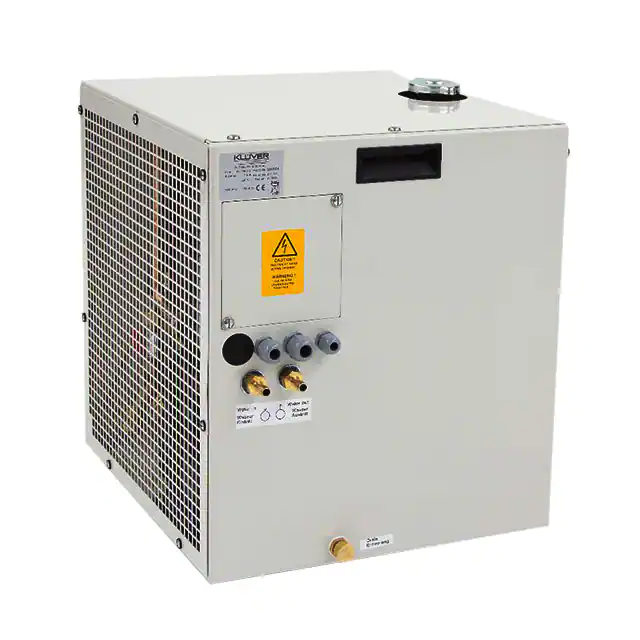

1530.01HEAT EXCHANGER 230V 6LPM 3000W Laird Thermal Systems, Inc. |
2,104 | - |
|
Datasheet |
WL | Box | Obsolete | Active, Heat Exchanger | 3000 W | 2.5 A | 230VAC | 1.59GPM (6.0LPM) | - | - | 3700ML (125.1 oz) | 5°C ~ 40°C | 9mm Press Fit | 85 lbs (38.6 kg) | 18.86" L x 15.67" W x 18.94" H (479.0mm x 398.0mm x 481.0mm) | - |
|
|
1550.00HEAT EXCHANGER 230V 6.5LPM 5000W Laird Thermal Systems, Inc. |
3,266 | - |
|
Datasheet |
WL | Box | Obsolete | Active, Heat Exchanger | 5000 W | 2.6 A | 230VAC | 1.72GPM (6.5LPM) | - | - | 5000ML (169.1 oz) | 5°C ~ 40°C | 9mm Press Fit | 85 lbs (38.6 kg) | 19.02" L x 15.98" W x 18.94" H (483.0mm x 406.0mm x 481.0mm) | - |
|
|
16-60-002-01SPACER BLOCK/PLATE Laird Thermal Systems, Inc. |
1,017 | - |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
