Speakers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UT-P2020SPEAKER TOP PORT RECT MEMS |
221 | 10.10 |
|
Datasheet |
Ganymede | Tray | Active | Piezo | General Purpose | 20 Hz ~ 20 kHz | 2.7kHz | - | - | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.264" L x 0.185" W (6.70mm x 4.70mm) |
|

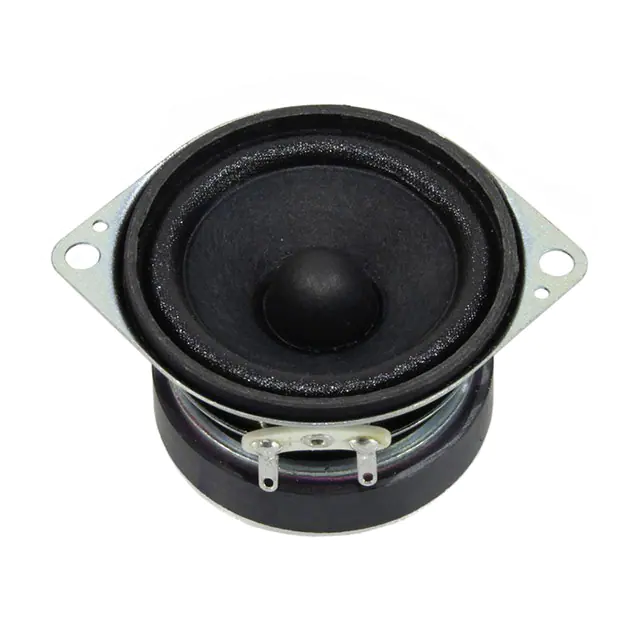

FRS 5 - 8 OHMSPEAKER 8OHM 5W TOP PORT 84DB |
141 | 9.46 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 290Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round | - | - | - | - | Quick Connect | 1.988" Dia (50.50mm) |
|

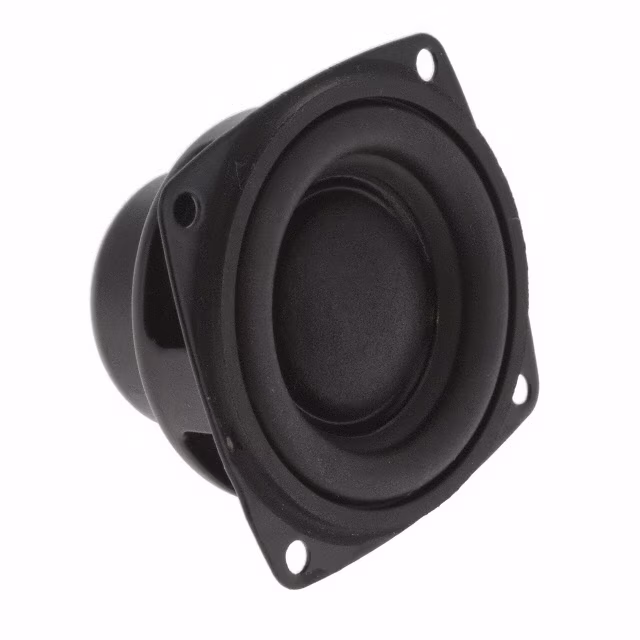

BF 37 - 4 OHMSPEAKER 4OHM 5W TOP PORT 74DB |
407 | 9.98 |
|
Datasheet |
Miniature Speaker | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | - | 4 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round, Square Frame | - | Nd | - | - | Solder Pads | - |
|
|
BF 37 8 OHMBF 37 8 OHM |
117 | - |
|
Datasheet |
BF 37 | Bulk | Active | - | General Purpose | 100 Hz ~ 20 kHz | 155Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round, Square Frame | - | - | IPX4 | - | Solder Eyelet(s) | 1.457" L x 1.457" W (37.00mm x 37.00mm) |
|
SC 4.6 FL - 8 OHMSPEAKER 8OHM 4W TOP PORT 80DB |
136 | 10.28 |
|
Datasheet |
- | Bulk | Active | - | General Purpose | 100 Hz ~ 20 kHz | 200Hz | 8 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 5 W | Top | Oval, Rectangular Frame | - | Nd | IP63 - Dust Tight, Water Resistant | - | Solder Pads | 2.378" L x 1.634" W (60.40mm x 41.50mm) |
|
FRS 5 X - 8 OHMSPEAKER 8OHM 5W TOP PORT 86DB |
103 | 10.98 |
|
Datasheet |
- | Bulk | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round | - | - | - | - | Quick Connect | 1.969" Dia (50.00mm) |
|
BC25SC06-04SPEAKR 3.37OHM 25W TOP PT 92.4DB |
120 | 11.30 |
|
Datasheet |
BC | Bulk | Active | Magnetic | Tweeter | 1.3 kHz ~ 20 kHz | 1394.91Hz | 3.37 Ohms | 92.40 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|

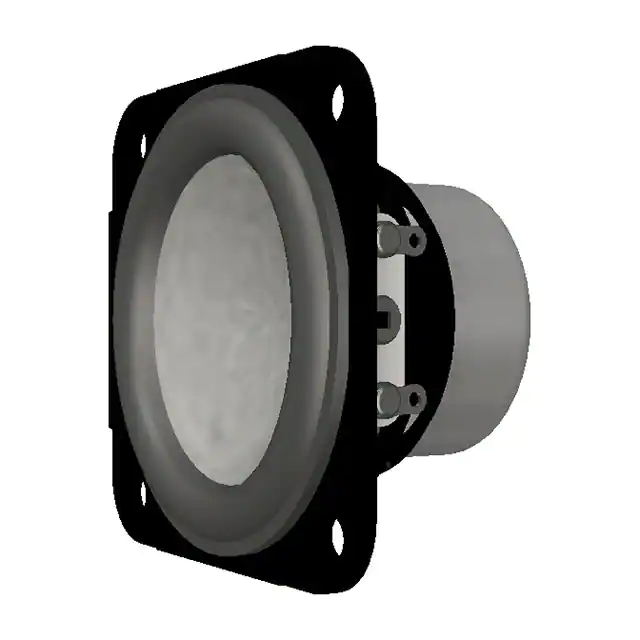

AS04504PS-X-RSPEAKER 4OHM 10W TOP PORT 86DB |
109 | 12.14 |
|
Datasheet |
Xtreme | Tray | Active | Magnetic | General Purpose | 90 Hz ~ 20 kHz | 170Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Round, Rectangular Frame | Aluminum (AI) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | IEC 60601-1-8 | Solder Pads | - |
|
TC10FG00-04SPEAKR 4.21OHM 30W TOP PT 89.5DB |
300 | 12.42 |
|
Datasheet |
TC | Bulk | Active | Magnetic | Full Range | 120 Hz ~ 20 kHz | 155.17Hz | 4.21 Ohms | 89.50 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|

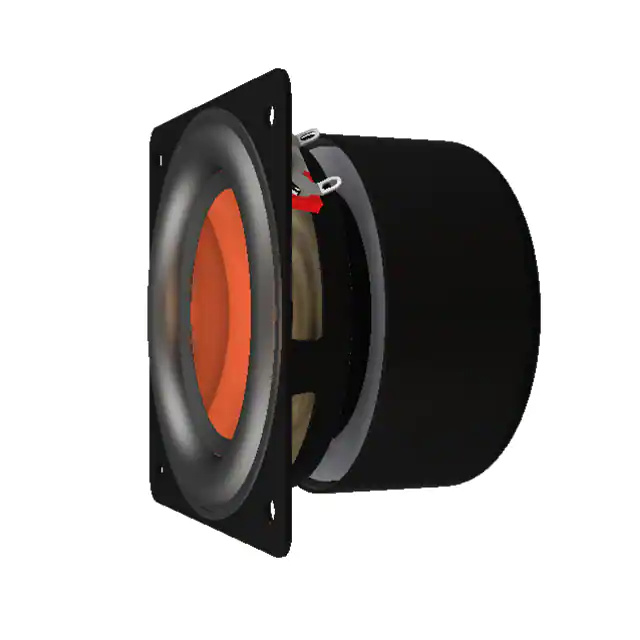

AS07808AS-RSPEAKER 8OHM 15W TOP PORT 82DB |
161 | 12.31 |
|
Datasheet |
Copperhead | Box | Active | Magnetic | Full Range | 60 Hz ~ 40 kHz | 120Hz | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 30 W | Top | Round, Square Frame | Aluminum (AI) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
|
PLS-75F25AL02-08SPEAKR 7.42OHM 25W TOP PORT 84DB |
1,156 | 13.07 |
|
Datasheet |
PLS | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 104.81Hz | 7.42 Ohms | 84.00 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
|
D19TD05-08SPEAKR 7.64OHM 100W TOP 87.5DB |
235 | 14.30 |
|
Datasheet |
D | Bulk | Active | Magnetic | Tweeter | 1 kHz ~ 20 kHz | 1687.93Hz | 7.64 Ohms | 87.50 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth, Treated | Ferrite | - | - | Solder Eyelet(s) | 3.701" Dia (94.00mm) |
|
PLS-P830983SPEAKR 3.99OHM 25W TOP PORT 82DB |
350 | 14.74 |
|
Datasheet |
PLS | Bulk | Active | Magnetic | Full Range | 150 Hz ~ 20 kHz | 175.63Hz | 3.99 Ohms | 82.00 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Aluminum (AI) | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.165" L x 2.165" W (55.00mm x 55.00mm) |
|
SLS-85S25CP04-04SPEAKR 4.37OHM 30W TOP PT 83.3DB |
206 | 15.85 |
|
Datasheet |
SLS | Bulk | Active | Magnetic | Woofer | 73 Hz ~ 2.5 kHz | 72.57Hz | 4.37 Ohms | 83.30 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 4.134" Dia (105.00mm) |
|
SDS-P830656SPEAKR 6.54OHM 60W TOP PT 84.8DB |
2,536 | 15.87 |
|
Datasheet |
SDS | Bulk | Active | Magnetic | Subwoofer | 50 Hz ~ 5 kHz | 57.23Hz | 6.54 Ohms | 84.80 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 5.984" Dia (152.00mm) |
|
D26NC56-06SPEAKR 5.74OHM 100W TOP 89.3DB |
578 | 15.93 |
|
Datasheet |
D | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 1625.32Hz | 5.74 Ohms | 89.30 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.756" L x 2.126" W (70.00mm x 54.00mm) |
|
ED-23619-000SPEAKER 10.2OHM TOP PORT 106DB |
214 | 20.22 |
|
Datasheet |
ED | Bulk | Active | Magnetic | Receiver | 200 Hz ~ 5 kHz | - | 10.2 Ohms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
WBFK-30095-000SPEAKER 13.8OHM TOP PORT 97DB |
800 | 20.50 |
|
Datasheet |
WBFK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 7.4 kHz | - | 13.8 Ohms | 97.00 | 1mW | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.203" L x 0.138" W (5.16mm x 3.51mm) |
|
FR 8 WP - 4 OHM (WHITE)SPEAKER 4OHM 15W TOP PORT 84DB |
168 | 15.16 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 158Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 25 W | Top | Round | Plastic | - | Waterproof | - | Quick Connect | 3.543" Dia (90.00mm) |
|
SDS-160F25PR01-08SPEAKR 7.98OHM 60W TOP PORT 87DB |
290 | 17.97 |
|
Datasheet |
SDS | Bulk | Active | Magnetic | Subwoofer | 35 Hz ~ 20 kHz | 41.76Hz | 7.98 Ohms | 87.00 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 7.165" Dia (182.00mm) |
