Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A20303RNMCQSWITCH ROTARY 3POS 2.5A 125V |
2,643 | 1.48 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
|
A10305RNZBSWITCH ROTARY 3POS 0.4VA 20V |
2,107 | 1.59 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A20515RNCQSWITCH ROTARY 5POS 2.5A 125V |
1,608 | 1.43 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
C5P0112N-RASWITCH ROTARY 2-12POS 1A 125V |
4,720 | 1.33 |
|
Datasheet |
C5 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Sealed | 14.10mm |
|
|
A102S1RNZQKSWITCH ROTARY 2POS 2.5A W/SEAL |
1,777 | - |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A30303RNCQSWITCH ROTARY 3POS 2.5A 125V |
1,725 | 1.50 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A10205RNZQKSWITCH ROTARY 2POS 2.5A 125V |
2,294 | 1.61 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
A12503RNCQSWITCH ROTARY 8POS 2.5A 125V |
1,294 | 1.37 |
|
Datasheet |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 45° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A10005RNCQSWITCH ROTARY 12POS 2.5A 125V |
2,592 | 1.45 |
|
Datasheet |
A | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A20603RNCQESWITCH ROTARY 6POS 2.5A 125V |
4,075 | 1.64 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
|
A11203RSCQKSWITCH ROTARY 12POS 2.5A 125V |
3,600 | 1.65 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A30305MSMCQFSWITCH ROTARY 3POS 2.5A 125V |
4,776 | 1.62 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
|
A30305RNZQSWITCH ROTARY 3POS 2.5A 125V |
4,079 | 1.50 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A11215RNCQESWITCH ROTARY 12POS 2.5A 125V |
1,070 | 1.49 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
|
A402S1RNCQSWITCH ROTARY 2POS 2.5A 125V |
4,111 | 1.40 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

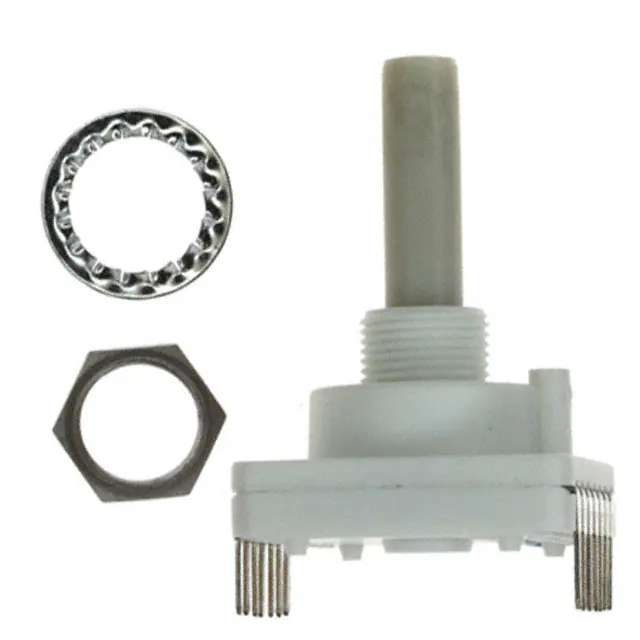

RTAP31W12W25NSSWITCH ROTARY 12POS 150MA 60V |
4,345 | 1.23 |
|
Datasheet |
RTA | Bag | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | 30° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|
|
C6P0206N-ASWITCH ROTARY 2-6POS 1A 125V |
4,391 | 1.39 |
|
Datasheet |
C6 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.07mm |
|
|
C6P0206N-RASWITCH ROTARY 2-6POS 1A 125V |
3,924 | 1.39 |
|
Datasheet |
C6 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
RTAP34S02M25NSSWITCH ROTARY 2POS 150MA 60V |
1,449 | 2.60 |
|
Datasheet |
RTA | Bag | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 12.60mm |
|
|
A10305RNZQESWITCH ROTARY 3POS 2.5A 125V |
1,448 | 1.23 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
