Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50S36-01-1-10NSWITCH ROTARY 10POS 150MA 115V Grayhill Inc. |
2,096 | 3.65 |
|
Datasheet |
50 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
50S36-01-1-10N-FSWITCH ROTARY 10POS 150MA 115V Grayhill Inc. |
2,877 | 3.06 |
|
Datasheet |
50 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
56DP36-01-2-AJSSWITCH ROTARY 2-5POS 200MA 115V Grayhill Inc. |
3,097 | 3.00 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|

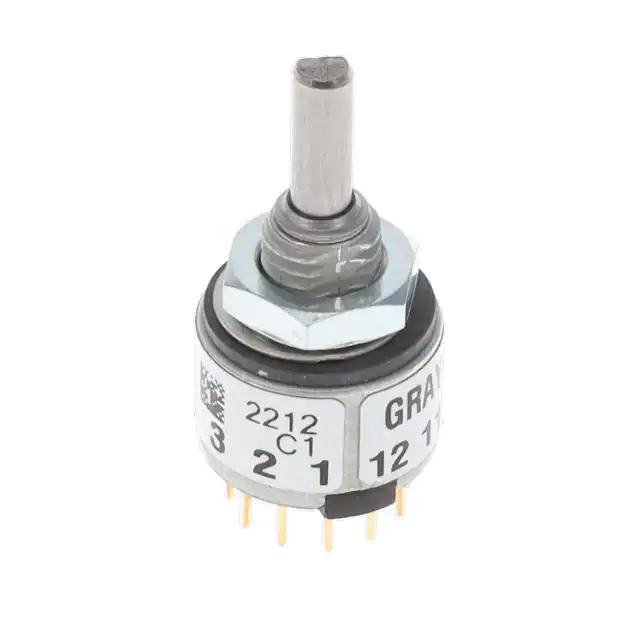

56SP30-01-2-03SSWITCH ROTARY 3POS 200MA 115V Grayhill Inc. |
1,854 | 3.00 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
56SP30-01-2-05SSWITCH ROTARY 5POS 200MA 115V Grayhill Inc. |
2,981 | 3.00 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
56SDP30-01-2-AJNSWITCH ROTARY 2-6POS 200MA 115V Grayhill Inc. |
4,345 | 3.15 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
56SP30-01-2-03NSWITCH ROTARY 3POS 200MA 115V Grayhill Inc. |
3,780 | 3.15 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
51BSPT22-01B08NSWITCH ROTARY 8POS 150MA 115V Grayhill Inc. |
3,984 | 3.21 |
|
Datasheet |
51 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed, Shaft and Panel Sealed | 14.63mm |
|
|
51BSPT22-01B16NSWITCH ROTARY 16POS 150MA 115V Grayhill Inc. |
4,328 | 3.21 |
|
Datasheet |
51 | Bulk | Active | 16 | Fixed | 1 | 1 | SP16T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed, Shaft and Panel Sealed | 14.63mm |
|
|
56SP30-01-2-06NSWITCH ROTARY 6POS 200MA 115V Grayhill Inc. |
1,453 | 3.16 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
