Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09A30-04-1-05NSWITCH ROTARY 5POS 250MA 115V Grayhill Inc. |
4,482 | 14.49 |
|
Datasheet |
09 | Bulk | Active | 5 | Fixed | 4 | 1 | SP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 44.81mm |
|
|
44M30-02-3-03NSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
4,264 | 14.54 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | 3 | 3P3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44M45-02-1-06SSWITCH ROTARY 6POS 5A 115V Grayhill Inc. |
2,872 | 14.55 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
53M15-01-2-11NSWITCH ROTARY 11POS 250MA 115V Grayhill Inc. |
4,571 | 14.87 |
|
Datasheet |
53 | Bulk | Active | 11 | Fixed | 1 | 2 | DP11T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 23.27mm |
|
|
44M60-02-1-06NSWITCH ROTARY 6POS 5A 115V Grayhill Inc. |
1,237 | 17.85 |
|
Datasheet |
44 | Bulk | Active | 6 | Continuous | 2 | 1 | SP6T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44M60-02B06NSWITCH ROTARY 6POS 5A 115V Grayhill Inc. |
3,475 | 14.56 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | - | 1 | SP6T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | - |
|

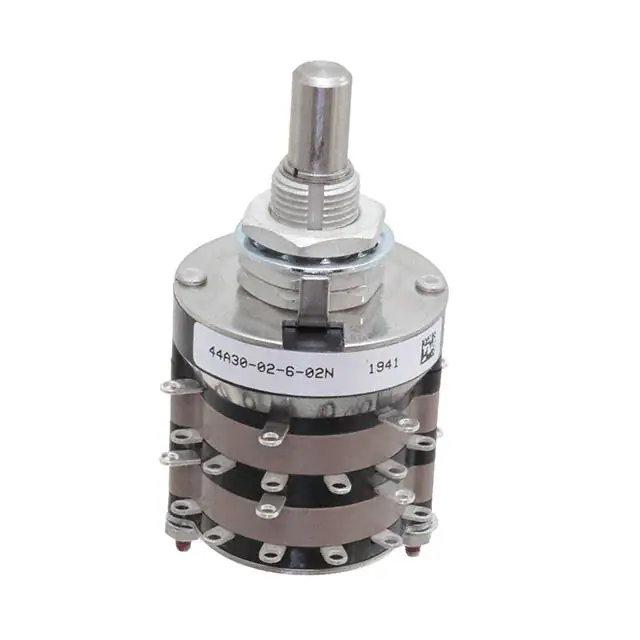

44A30-02-6-02NSWITCH ROTARY 2POS 1A 115V Grayhill Inc. |
4,662 | 14.56 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 2 | 6 | 6PDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44A30-03-3-03NSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
2,394 | 14.57 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 3 | 3 | 3P3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
44MS30-02-1-09NSWITCH ROTARY 9POS 1A 115V Grayhill Inc. |
2,057 | 14.57 |
|
Datasheet |
44 | Bulk | Active | 9 | Fixed | 2 | 1 | SP9T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
08S36-02-2-03NSWITCH ROTARY 3POS 250MA 115V Grayhill Inc. |
2,101 | - |
|
Datasheet |
8 | Bulk | Active | 3 | Fixed | 2 | 2 | DPDT | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
