Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71CF302107N-1107NSWITCH ROTARY 7POS 250MA 115V Grayhill Inc. |
4,735 | 10.88 |
|
Datasheet |
71 | Bulk | Active | 7 | Fixed | 2, 1 | 1 | SP7T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 41.48mm |
|
|
093122-1-04NSWITCH ROTARY 4POS 250MA 115V Grayhill Inc. |
2,732 | 12.43 |
|
Datasheet |
09 | Bulk | Active | 4 | Fixed | 2 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|
|
44HS30-01-3-03SSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
2,457 | 10.63 |
|
- |
44 | Bulk | Active | 3 | Fixed | 1 | 3 | 3P3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
71CF362110SF-1110SFSWITCH ROTARY 10POS 250MA 115V Grayhill Inc. |
3,090 | 10.88 |
|
Datasheet |
71 | Bulk | Active | 10 | Fixed | 2, 1 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 41.48mm |
|
|
50KSPT45-01-1-06NSWITCH ROTARY 12POS 250MA 115V Grayhill Inc. |
3,079 | 4.78 |
|
Datasheet |
71 | Bulk | Active | 12 | Fixed | 2, 1 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | Process Sealed, Shaft and Panel Sealed | 41.48mm |
|
|
19001-11ULSWITCH ROTARY 11POS 15A 120V Grayhill Inc. |
1,124 | 12.63 |
|
Datasheet |
19 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
|
|
19101-11ULSWITCH ROTARY 11POS 15A 120V Grayhill Inc. |
3,387 | 9.46 |
|
Datasheet |
19 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
|
42M36-02-1-03SSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
4,561 | 13.27 |
|
- |
42 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|

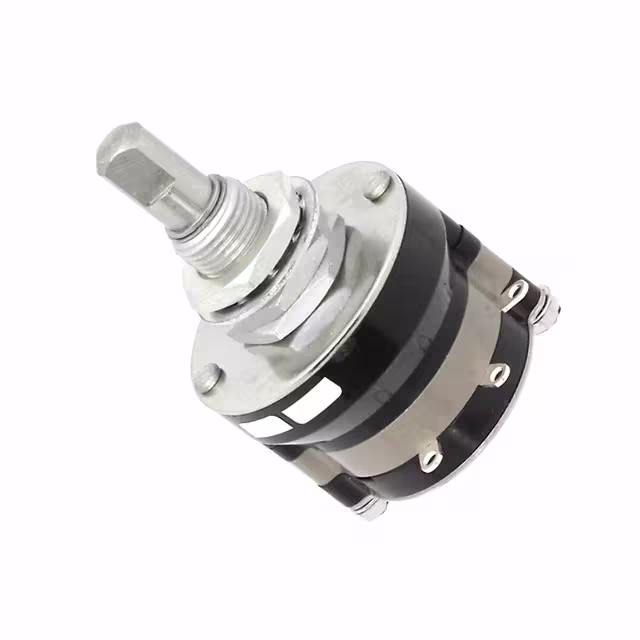

44M45-01-1-05NSWITCH ROTARY 5POS 5A 115V Grayhill Inc. |
3,643 | 14.27 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44S90-01-2-02NSWITCH ROTARY 2POS 5A 115V Grayhill Inc. |
3,534 | 11.64 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 5A (AC), 2A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 90° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
