Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71ED30-01-1-AJSSWITCH ROTARY 2-12POS 250MA 115V Grayhill Inc. |
3,802 | 5.36 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|

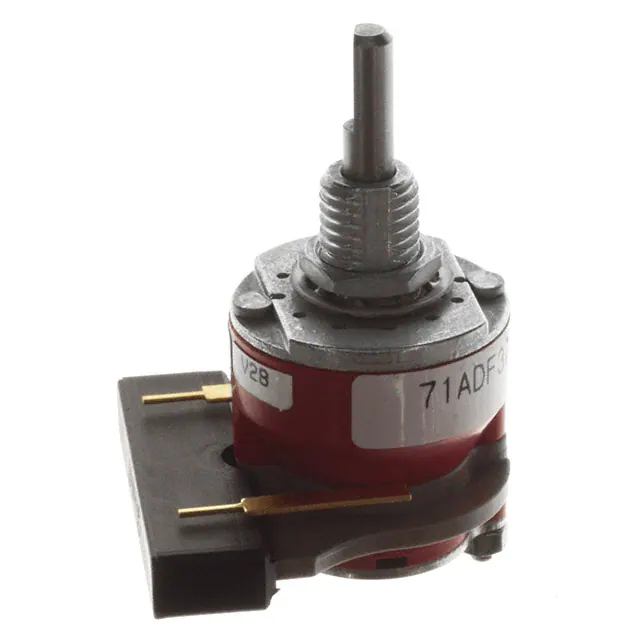

71ADF30-01-2-AJSSWITCH ROTARY 2-6POS 250MA 115V Grayhill Inc. |
4,231 | 4.22 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
|
71BDF36-01-2-AJSSWITCH ROTARY 2-5POS 250MA 115V Grayhill Inc. |
4,749 | 3.33 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
|
71ADF36-01-2-AJSSWITCH ROTARY 2-5POS 250MA 115V Grayhill Inc. |
2,053 | 4.22 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
|
71BDF30-01-2-AJSSWITCH ROTARY 2-6POS 250MA 115V Grayhill Inc. |
3,017 | 4.22 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
|
71B30-02-1-12N-FSWITCH ROTARY 12POS 250MA 115V Grayhill Inc. |
3,928 | 3.50 |
|
Datasheet |
71 | Bulk | Active | 12 | Fixed | 2 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
71MBF30-01C03SSWITCH ROTARY 3POS 250MA 115V Grayhill Inc. |
1,589 | 5.40 |
|
- |
71 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
|
51MBP30-01A12NSWITCH ROTARY 12POS 150MA 115V Grayhill Inc. |
3,160 | 4.20 |
|
Datasheet |
51 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
51MPT30-01A12NSWITCH ROTARY 12POS 150MA 115V Grayhill Inc. |
2,036 | 4.20 |
|
Datasheet |
51 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
|
|
51MPT30-01B03NSWITCH ROTARY 3POS 150MA 115V Grayhill Inc. |
3,699 | 4.20 |
|
Datasheet |
51 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
