Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Frequency	Bandwidth	Filter Type	Ripple	Insertion Loss	Mounting Type	Size / Dimension	Height (Max)

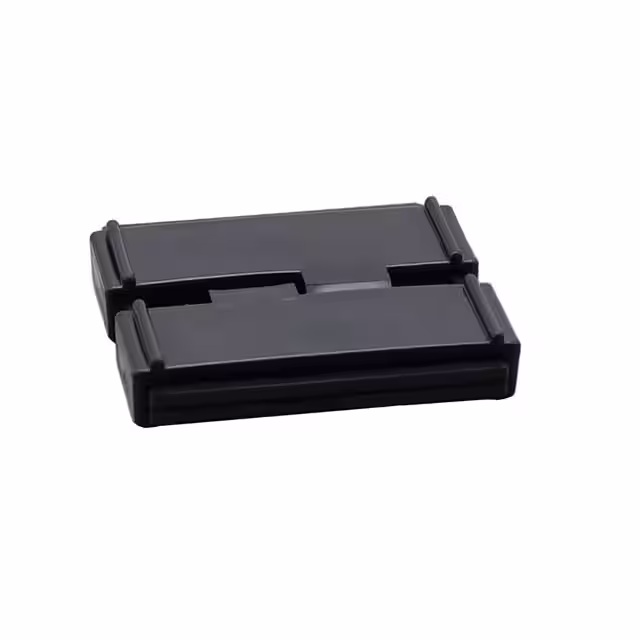

LP0AA0316A700 RF FILTER LOW PASS 316MHZ 16ULGA KYOCERA AVX	1,941	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	316MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

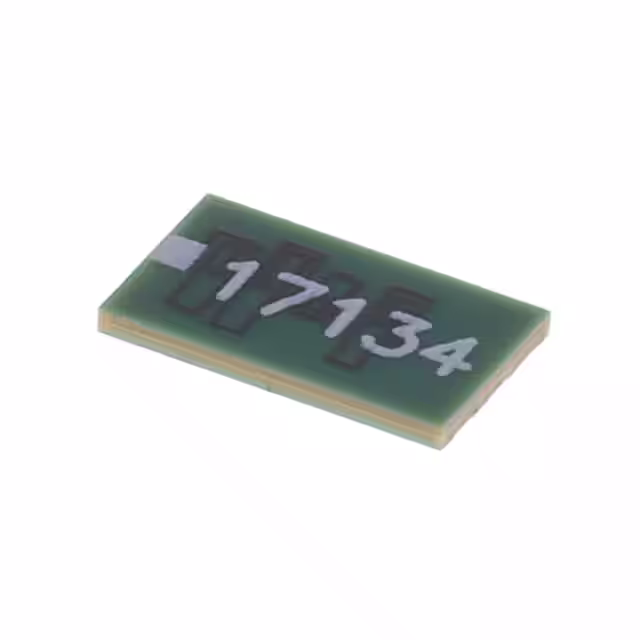

LP0AA1630A700 RF FILTER LOWPASS 1.63GHZ 16ULGA KYOCERA AVX	2,296	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	1.63GHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

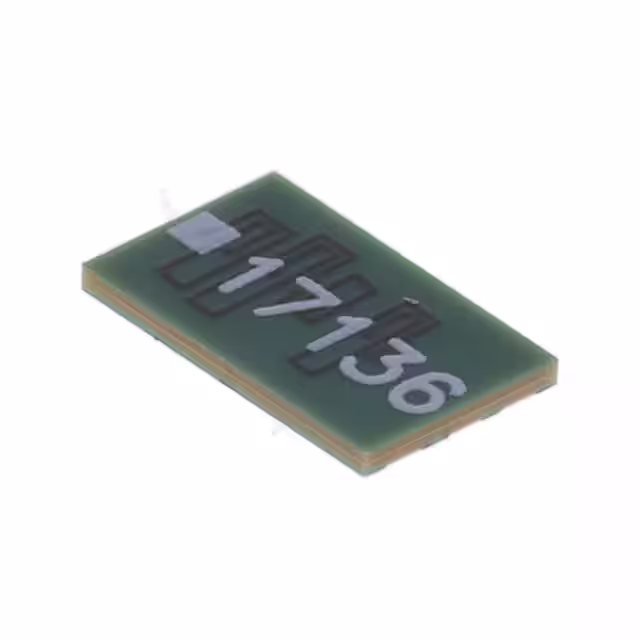

LP0AA1620A700 RF FILTER LOWPASS 1.62GHZ 16ULGA KYOCERA AVX	4,661	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	1.62GHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

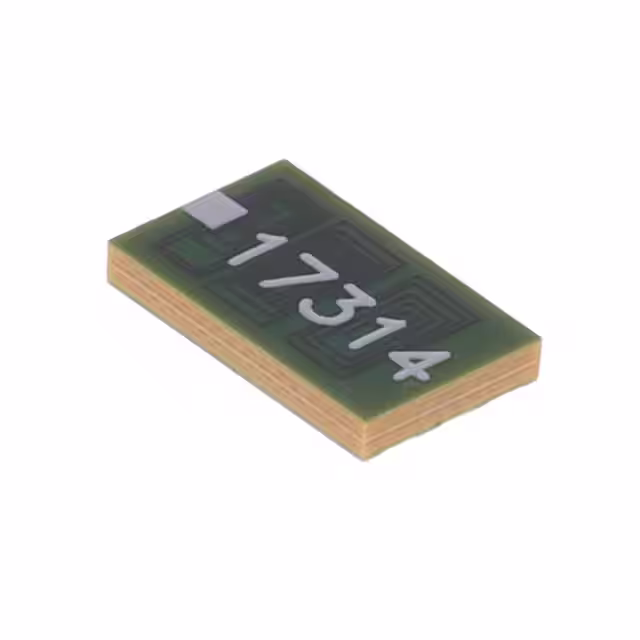

LP0AA0174A700 RF FILTER LOW PASS 174MHZ 16ULGA KYOCERA AVX	3,414	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	174MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

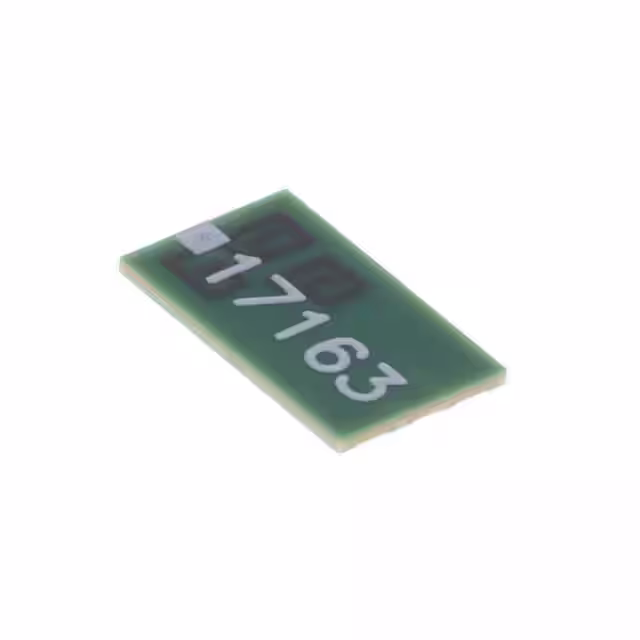

HF0AA4140A700 RF FILT HIGH PASS 4.14GHZ 16ULGA KYOCERA AVX	2,091	13.33	RFQ	Datasheet	HF	16-ULGA	Bulk	Active	4.14GHz	-	High Pass	-	1.2dB	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

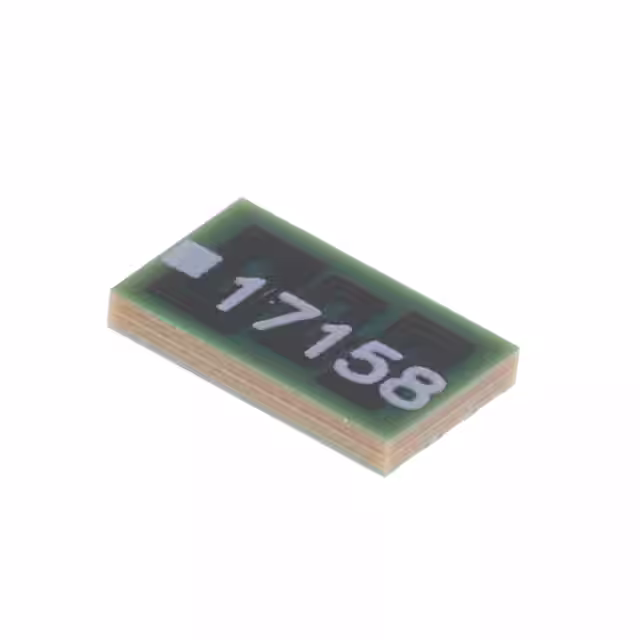

LP0AA0194A700 RF FILTER LOW PASS 194MHZ 16ULGA KYOCERA AVX	3,211	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	194MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

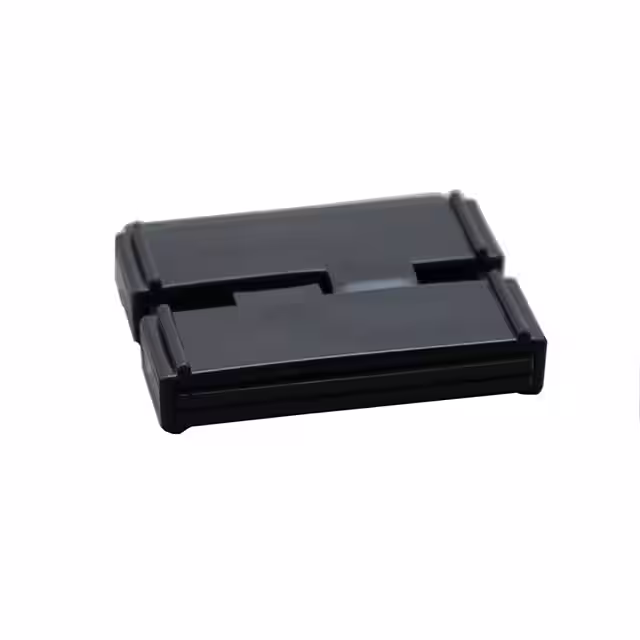

LP0AA0145A700 RF FILTER LOW PASS 145MHZ 16ULGA KYOCERA AVX	4,781	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	145MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

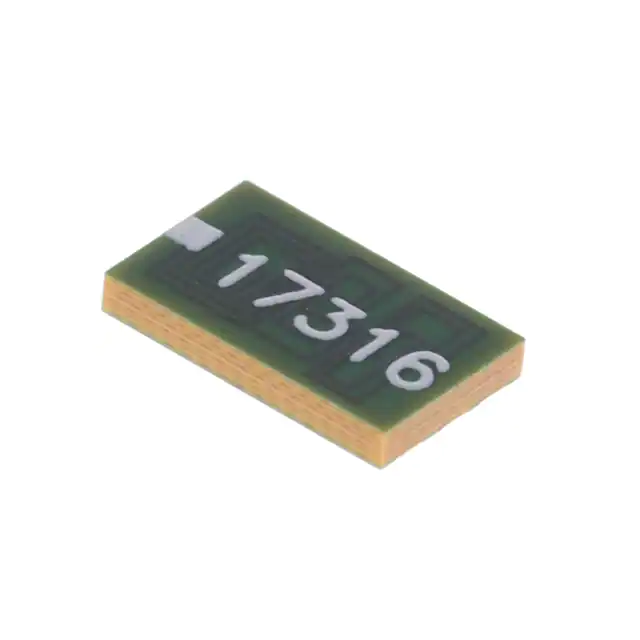

LP0AA0279A700 RF FILTER LOW PASS 279MHZ 16ULGA KYOCERA AVX	1,275	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	279MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

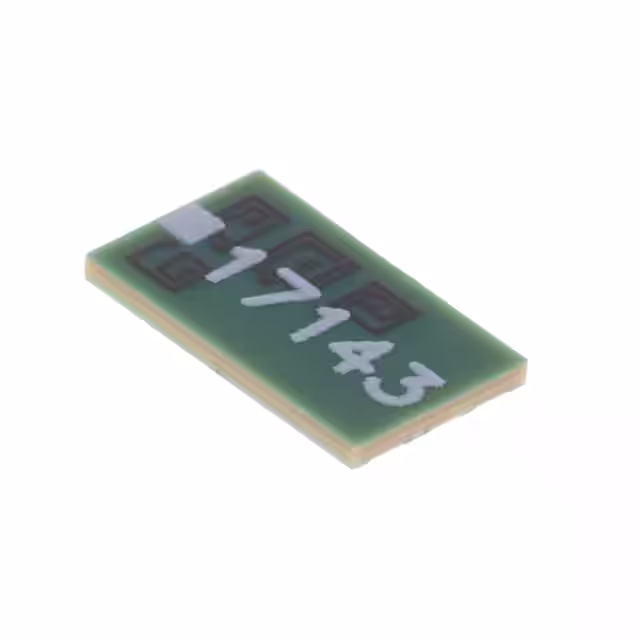

HF0AA2470A700 RF FILT HIGH PASS 2.47GHZ 16ULGA KYOCERA AVX	3,034	13.33	RFQ	Datasheet	HF	16-ULGA	Bulk	Active	2.47GHz	-	High Pass	-	1.2dB	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

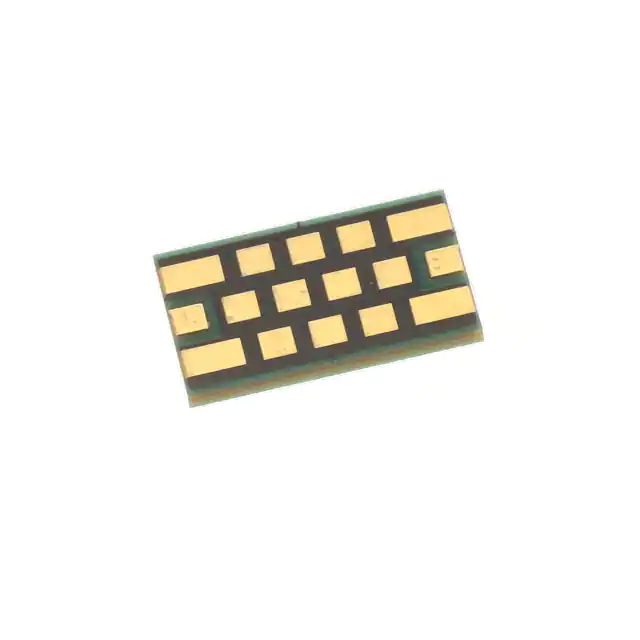

LP0AA2640A700 RF FILTER LOWPASS 2.64GHZ 16ULGA KYOCERA AVX	2,343	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	2.64GHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

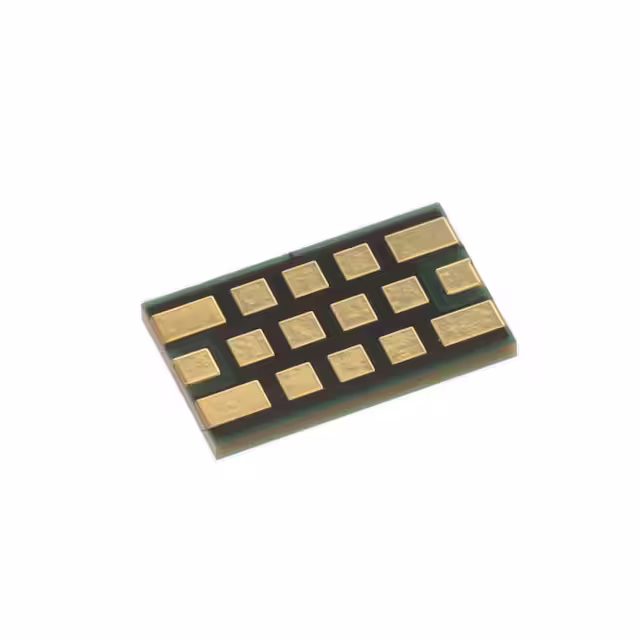

HF0AA2230A700 RF FILT HIGH PASS 2.23GHZ 16ULGA KYOCERA AVX	1,614	13.33	RFQ	Datasheet	HF	16-ULGA	Bulk	Active	2.23GHz	-	High Pass	-	1.2dB	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

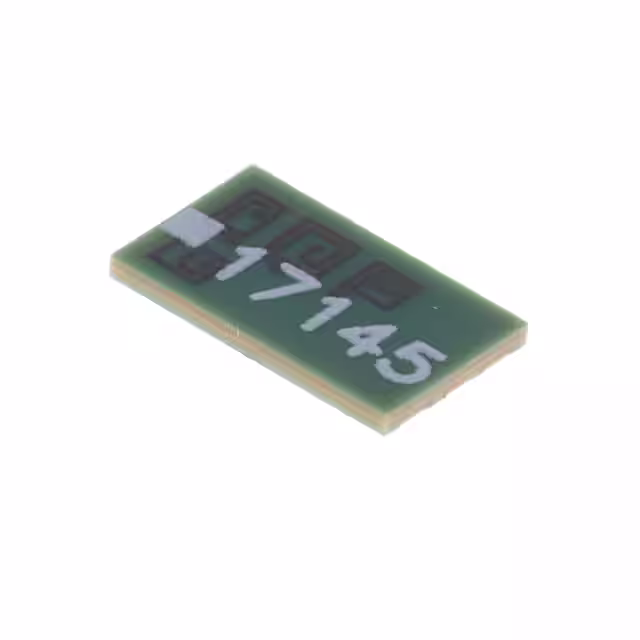

HF0AA2400A700 RF FILTER HI PASS 2.4GHZ 16ULGA KYOCERA AVX	4,044	13.33	RFQ	Datasheet	HF	16-ULGA	Bulk	Active	2.4GHz	-	High Pass	-	1.2dB	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

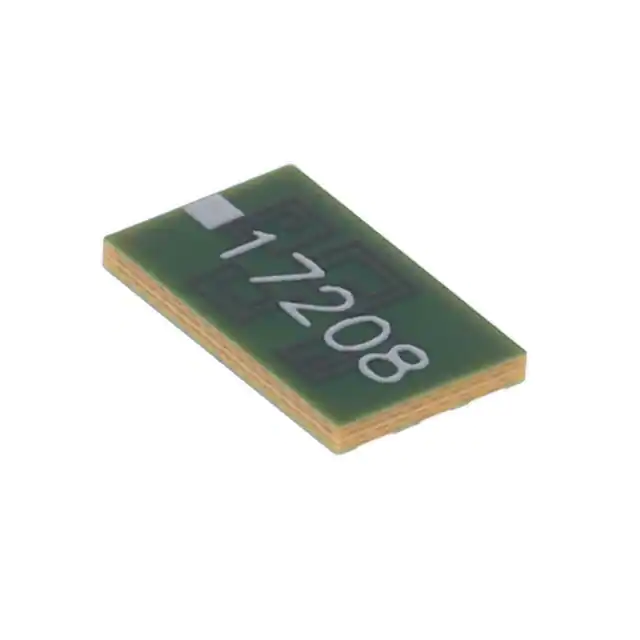

HF0AA1760A700 RF FILT HIGH PASS 1.76GHZ 16ULGA KYOCERA AVX	2,376	13.33	RFQ	Datasheet	HF	16-ULGA	Bulk	Active	1.76GHz	-	High Pass	-	1.2dB	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

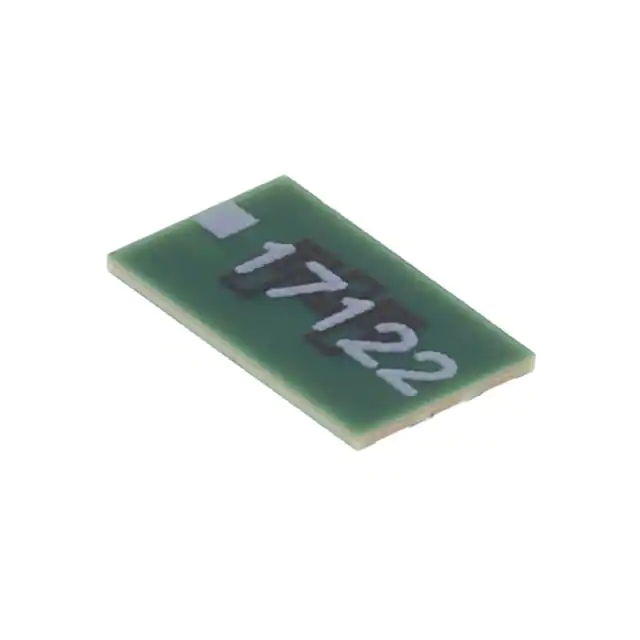

LP0AA2910A700 RF FILTER LOWPASS 2.91GHZ 16ULGA KYOCERA AVX	2,748	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	2.91GHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

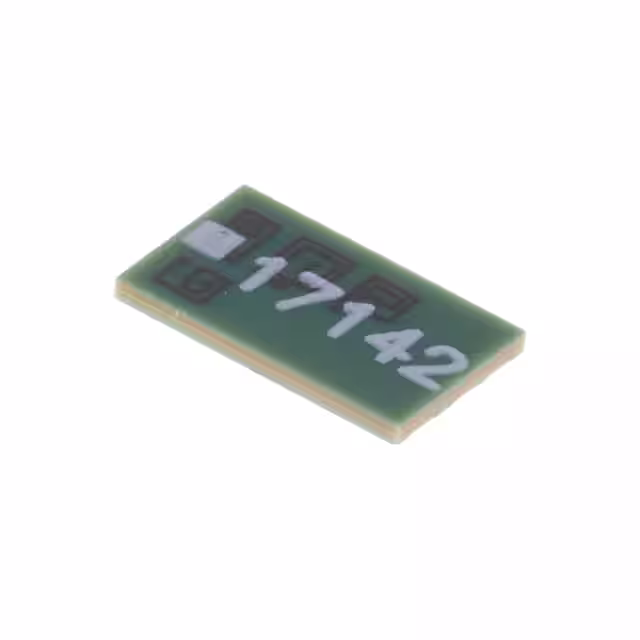

HF0AA2480A700 RF FILT HIGH PASS 2.48GHZ 16ULGA KYOCERA AVX	1,614	13.33	RFQ	Datasheet	HF	16-ULGA	Bulk	Active	2.48GHz	-	High Pass	-	1.2dB	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)
LP0AA2300A700 RF FILTER LOW PASS 2.3GHZ 16ULGA KYOCERA AVX	2,827	10.50	RFQ	Datasheet	LP	16-ULGA	Bulk	Obsolete	2.3GHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

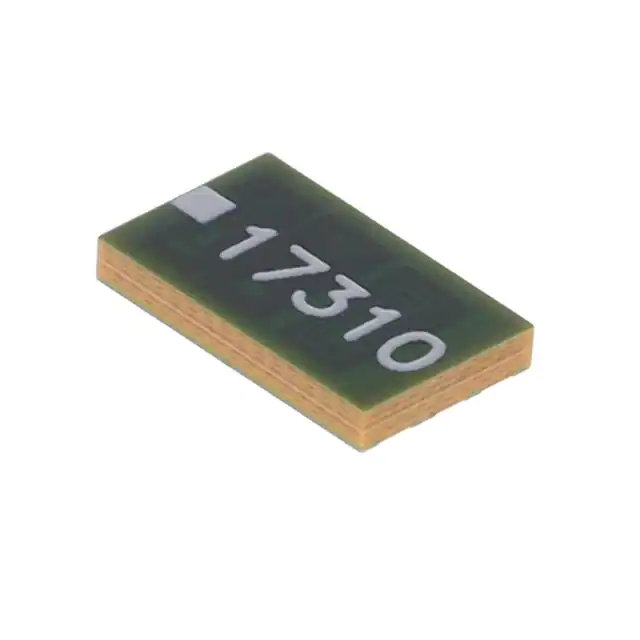

LP0AA0153A700 RF FILTER LOW PASS 153MHZ 16ULGA KYOCERA AVX	4,293	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	153MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

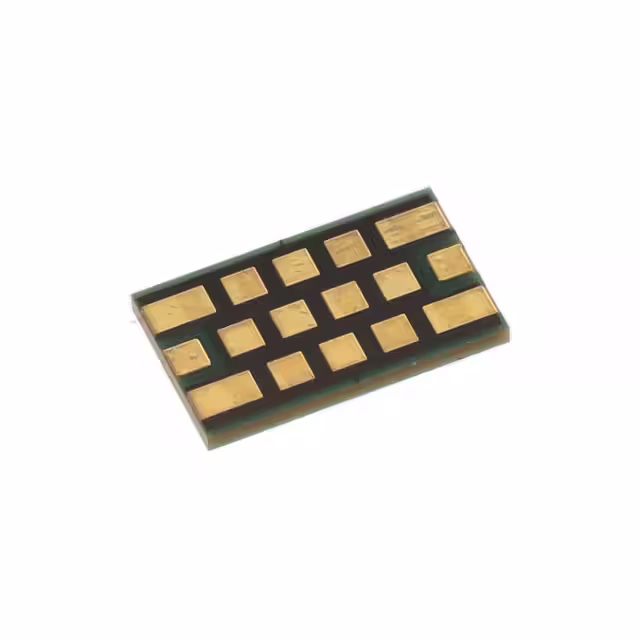

LP0AA2490A700 RF FILTER LOWPASS 2.49GHZ 16ULGA KYOCERA AVX	3,983	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	2.49GHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)
LP0AA0156A700 RF FILTER LOW PASS 156MHZ 16ULGA KYOCERA AVX	2,037	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	156MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

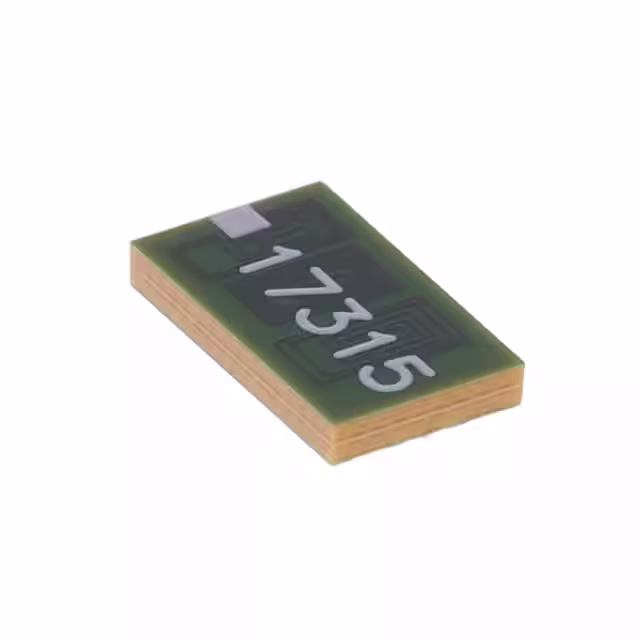

LP0AA0185A700 RF FILTER LOW PASS 185MHZ 16ULGA KYOCERA AVX	1,238	13.33	RFQ	Datasheet	LP	16-ULGA	Bulk	Active	185MHz	-	Low Pass	-	-	Surface Mount	0.259" L x 0.156" W (6.58mm x 3.98mm)	0.022" (0.56mm)

Total 3592 Record«Prev 1... 147 148 149 150151152 153 154...180 Next»
