RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OMB.868.B05F21RF ANT 868MHZ WHIP STR N FEM |
385 | 24.51 |
|
Datasheet |
- | Tube | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 43.071" (109.40cm) | - |
|
MA602.A.ABJ.002RF ANT 892MHZ/1.94GHZ DOM SMA 1M |
3,230 | 25.95 |
|
Datasheet |
Spartan | Box | Not For New Designs | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 1.92 | -10dB | 5dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | Iridium, GLONASS, GPS |
|
MA600.A.ABC.006RF ANT 850MHZ/900MHZ DOME PNL MT |
381 | 27.98 |
|
Datasheet |
Spartan | Box | Not For New Designs | Cellular, Navigation, WiFi | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 4.85GHz, 5.2GHz, 5.65GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 11 | 2, 1.6 | - | 2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3) | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | CDMA, GLONASS, GPS, GSM, HSPA, UMTS, Wi-Fi |
|
YG0063AAGEOMATRICAL L1/L2/L5 EXTERNAL AN |
258 | - |
|
Datasheet |
- | Bulk | Active | Navigation | - | - | - | Dome | 1 | - | - | - | - | - | TNC Female | - | - | - | Screw | 2.677" (68.00mm) | Galileo, GLONASS, GNSS, GPS |
|
MA952.A.LBIVW.0015IN1 GUARDIAN 3M:GNSS RG-174 :LT |
4,783 | 28.75 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz | Module | 13 | 2, 2, 2 | - | 1.42dBi, 1.28dBi, 3.56dBi, 3.24dBi, 3.55dBi, 3.21dBi, 3.21dBi, 3.11dBi, 3.06dBi, 3.84dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|
GPS-TMG-40NCSRF ANT 1.575GHZ DOME N TYP F POL |
2,354 | 32.23 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
|
GPSGL-TMG-SPI-40NRF ANT 1.575GHZ/1.6085GHZ DOME |
1,261 | 41.47 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6085GHz | 1.565GHz ~ 1.585GHz, 1.602GHz ~ 1.615GHz | Dome | 2 | 1.5 | - | 3.5dBic, 3dBic | - | - | - | - | - | - | Panel Mount | 7.244" (184.00mm) | Galileo, GLONASS, GPS |
|
|
GPS-TMG-40NMSRF ANT GPS 40DB NF BRKT DOME |
3,455 | 37.02 |
|
Datasheet |
Timing Ref | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 40dBi | - | LNA, Filter | N Type Female | IP67 | - | - | Bracket Mount, Through Hole | 4.961" (126.00mm) | GPS |
|
OMB.915.B08F21915MHZ 8DBI OMNI ANTENNA WITH N |
2,696 | 33.35 |
|
Datasheet |
- | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 58.032" (147.40cm) | ISM |
|
MA761.B.BICG.003RF ANT DOME SMA MALE PAN MT 3M |
239 | 39.66 |
|
Datasheet |
Pantheon | Box | Active | Cellular, WiFi | Wide Band | - | - | Dome | 5 | - | -6dB | 2.4dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.327" (84.50mm) | LTE, Wi-Fi |
|
OMB.868.A10F21868MHZ 10DBI ANTENNA |
3,115 | 54.80 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 10dBi | 50 W | - | N Type Female | IP67 | - | - | Bracket Mount | 88.189" (224.00cm) | ISM |
|
|
ADFGP.60A.01.0150DACTIVE ALL BAND GNSS HIGH PRECIS |
3,024 | - |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.227GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 6 | 2 | - | 1.3dBi, 1.8dBi, -1.3dBi, 4.1dBi, 4.4dBi, 3.7dBi | - | Cable - 150mm, LNA, Filter | SMA Male | - | - | - | Chassis Mount | 0.752" (19.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
A09-F5NF-MRF ANT 900MHZ WHIP STR N FEM 25" |
1,817 | 72.19 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 5.1dBi | - | - | N Type Female | - | - | - | Bracket Mount | 25.000" (635.00mm) | - |
|
MA1505.AK.0015IN1 GNSS 5G WIFI ANTENNA |
110 | 69.80 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz | Module | 13 | 2, 2.5 | - | -0.08dBi, 1.04dBi, 2.03dBi, 3.76dBi, 31.7dBic, 32.4dBic, 32.4dBic, 4.55dBi, 1.4dBi, 4.96dBi, 5.82dBi, 2.55dBi, 5.89dBi | 2 W | Cable - 300mm, LNA, Filter | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 2.263" (57.47mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|

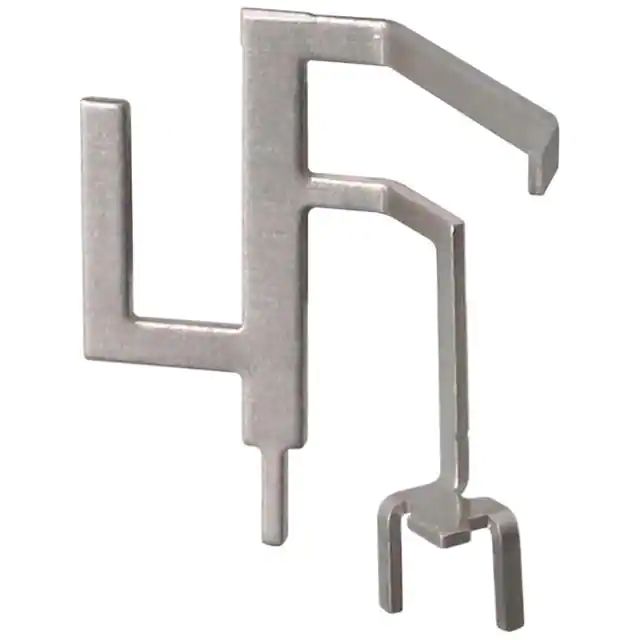

ANT-W63-MSA-TH1ANT WIFI6 2.4/5/6GHZ STAMPD TH |
6,154 | 0.11 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Stamped Metal | 3 | 1.9, 2.9, 3.2 | - | 3.5dBi, 3.8dBi, 3.8dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.728" (18.50mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|

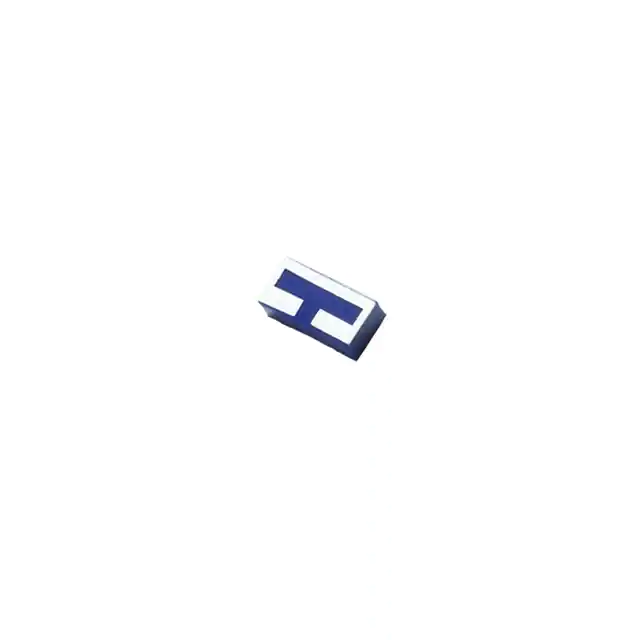

ANT3216LL11R2455AANTENNA CHIP 2.5/5G PIFA-C |
2,617 | 0.12 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | - | Chip | 2 | - | 6.5dB | 0.45dBi, 0.64dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | 4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT3216LL11R2400ARF ANT 2.45GHZ CER PATCH SLDR |
6,721 | 0.13 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | 6.5dB | 3.68dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
H2UB4K1H1B0100WIFI/BT 2400-2500MHZ TELA CERAMI |
10,850 | 0.12 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.5 | - | -0.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.012" (0.30mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
5400AT18A1000001ERF ANT 5.4GHZ CHIP SOLDER SMD |
5,715 | - |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Chip | 1 | - | -8.5dB | 2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | - |
|
|
H2U36D1K1B0300WIFI/BT 2400-2500 MHZ MONOPOLE C |
2,950 | 0.12 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
