RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

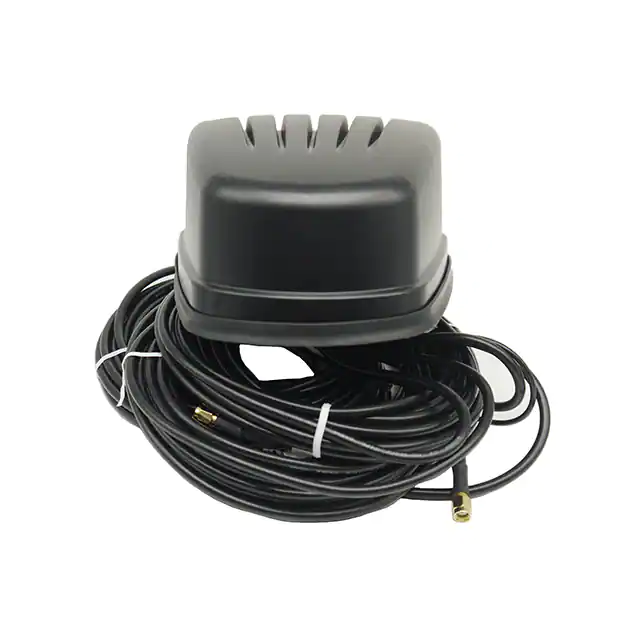

GPSMB401RF ANT MODULE RP-SMA MALE PAN MT |
3,180 | 30.00 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | - | - | Module | 6 | 1.5 | - | 5dBi | - | LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.992" (76.00mm) | GPS, LTE, Wi-Fi |
|
PSQ24495-91NFRF ANT 2.4GHZ/5.4GHZ FLAT PNL N |
1,922 | 24.95 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Panel | 2 | 2 | - | 7.7dB | 10 W | - | N Type Female | IP67 | - | - | Bracket Mount | 1.575" (40.00mm) | WiBro |
|
PSQ24495-91NMRF ANT 2.4GHZ/5.4GHZ FLAT PNL |
3,938 | 24.95 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Panel | 2 | 2 | - | 7.7dB | 10 W | - | N Type Male | IP67 | - | - | Bracket Mount | 1.575" (40.00mm) | WiBro |
|
GLHPDLTE-SFRF ANT 657.5MHZ DOME SMA MALE |
3,902 | 34.66 |
|
Datasheet |
GLHPDLTE-SF | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | Dome | 8 | 2 | - | 3.8dBi, 5.2dBi, 6.2dBi, 3dBic, -2dBic, 7.5dBi, 8.9dBi, 5.4dBi, 8.1dBi | 50 W | Cable - 5.1816m | SMA Male (2) | IP67 | - | - | Panel Mount | 3.531" (89.70mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
|
TRP-20INT-3-BRF ANT 657.5MHZ DOME SMA PAN MT |
3,653 | 34.66 |
|
Datasheet |
- | Box | Active | Cellular, Navigation | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | Dome | 8 | 1.4, 1.5, 1.6, 1.8, 2, 2.2 | - | 4dBi, 5dBi, 5.5dBi, -2dBic, 3dBic, 6.5dBi, 8.8dBi, 6.8dBi, 10.1dBi | 25 W | Cable - 5.1816m | SMA (2) | - | - | - | Panel Mount | 3.460" (87.88mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|

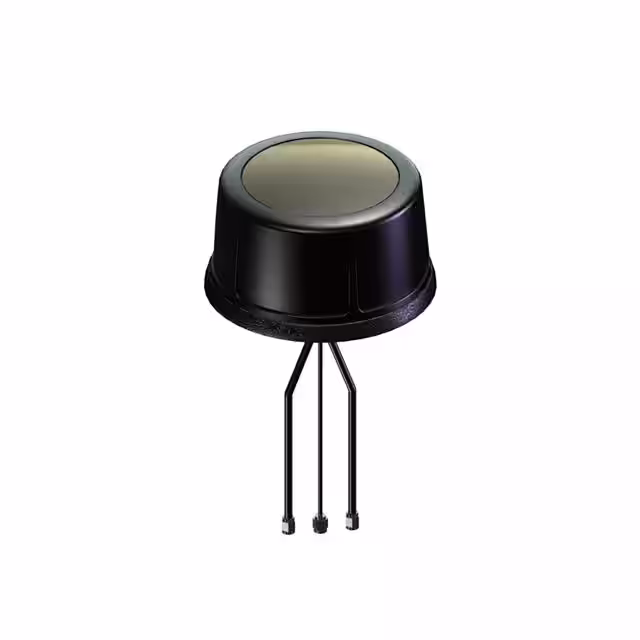

VLT69273B2NJ-518AANT 3-PORT 2X-4G, 1X-GNSS, BK |
4,176 | 24.74 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7 | Dome | 11 | 2 | - | 3.3dBi, 2.3dBi, 2.7dBi, 28dB, 4.6dBi, 4.8dBi, 5dBi, 4.9dBi, 5.7dBi | 50 W | Cable - 5.18m | SMA Male (2) | IP67 | - | - | Panel Mount | 2.953" (75.00mm) | Beidou, GLONASS, GPS, LTE |
|
BMYD806KRF ANT 851MHZ YAGI N TYPE F POLE |
2,593 | 37.23 |
|
Datasheet |
BMYD | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Yagi, 7-Element | 1 | - | - | 10dBd | 200 W | Cable - 609.6mm | N Type Female | - | - | - | Pole Mount | 24.000" (609.60mm) | ISM, LoRa, LPWAN |
|

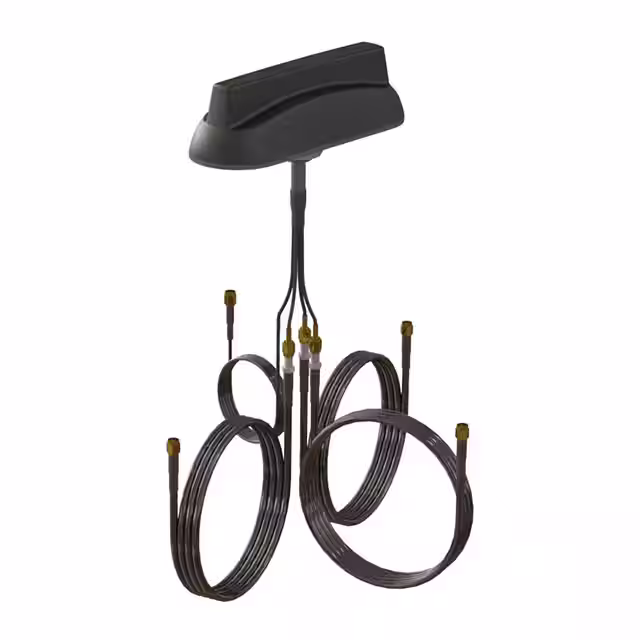

VFQ69383B21JN-518LANT LOW PROFILE 4-PORT SHARKFIN |
2,115 | 25.61 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.745GHz, 2.45GHz, 5.45GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 9 | 2 | - | 0.2dBi, 0.6dBi, 1.1dBi, 3.3dBi, 4.6dBi, 4.8dBi, 3.8dBi, 2.4dBi, 6.4dBi | 10 W | Cable - 5.18m, LNA | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|
GL4X4MIMO-SFRF ANT 1.5865GHZ DOME RP-SMA |
1,047 | 38.77 |
|
Datasheet |
- | Box | Active | Navigation, WiFi | Wide Band | 1.5865GHz, 2.45GHz, 5.445GHz | 1.565GHz ~ 1.608GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.99GHz | Dome | 3 | 1.5 | - | -2dBic, 3dBic, 4dBi, 4dBi | 25 W | LNA | RP-SMA, SMA | IP67 | - | - | Panel Mount | 2.638" (67.00mm) | Bluetooth, GLONASS, GNSS, GPS, Wi-Fi |
|
GNSS1-TMG-26NCMRF ANT 1.5845GHZ DOME N TYPE |
4,034 | 40.31 |
|
Datasheet |
GNSS1-TMG-26N | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 3dBic | - | LNA, Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GPS-TMG-HR-40NMSCLRF ANT 1.575GHZ DOME N TYPE F |
1,886 | 40.62 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Panel Mount | 4.961" (126.00mm) | GPS |
|
GNSS1-TMG-40NCSRF ANT 1.5845GHZ DOME N TYPE |
2,319 | 42.71 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 3dBic | - | LNA, Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GL6X1AX-SFWRF ANT 657.5MHZ DOME SMA MALE |
1,890 | 40.76 |
|
Datasheet |
Coach™ II | Box | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.4GHz, 2.545GHz, 3.6GHz, 5.4GHz, 5.95GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15G | Dome | 12 | 2 | - | -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 9.1dBi, 2.2dBi, 4.7dBi, 11.4dBi, 2.6dBi, 5.8dBi | 50 W | Cable - 5.18m | SMA Male (2), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 3.012" (76.50mm) | GNSS, LTE |
|
|
GPS-TMG-HR-26NMSCL-ARF ANT 1.575GHZ DOM N TYP F BASE |
1,028 | 41.06 |
|
Datasheet |
GPS-TMG-HR-26N | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | LNA, Filter | N Type Female | - | - | - | Base Mount | 4.961" (126.00mm) | GPS |
|
|
GNSS1-TMG-40NCMRF ANT 1.5845GHZ DOME N TYPE |
2,146 | 43.51 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 3dBic | - | LNA, Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
BMYD806MRF ANT 851MHZ YAGI N TYPE F POLE |
1,467 | 43.61 |
|
Datasheet |
BMYD | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Yagi, 11-Element | 1 | - | - | 12dBd | 200 W | Cable - 609.6mm | N Type Female | - | - | - | Pole Mount | 36.000" (914.40mm) | ISM, LoRa, LPWAN |
|
GPSL1TMGSPI40NCBRF ANT 1.575GHZ DOME N TYP F BRK |
2,332 | 43.93 |
|
- |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 2 | - | 3.5dBic | - | LNA | N Type Female | - | - | - | Bracket Mount | 7.244" (184.00mm) | GNSS, GPS |
|
BMY890G3030N1RF ANT 890-960MHZ 6.5 DBD 3 ELEM |
4,970 | 43.15 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLHPDM3-LTWRF ANT 657.5MHZ DOME RP-SMA PAN |
4,144 | 43.31 |
|
Datasheet |
Trooper | Box | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz | Dome | 10 | 1.2, 1.4, 1.6, 1.7, 1.9, 2, 2.2, 2.7 | - | 4dBi, 5dBi, 5.5dBi, -2dBic, 3dBic, 6.5dBi, 9.4dBi, 8.8dBi, 6.8dBi, 9.4dBi, 10.1dBi | 50 W | Cable - 5.1816m | RP-SMA (1), SMA (2) | IP67 | - | - | Panel Mount | 3.465" (88.00mm) | 802.11ac, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

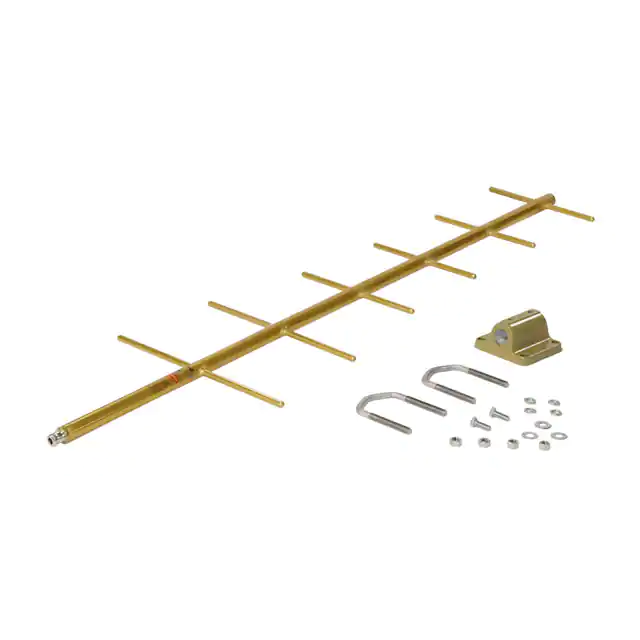

Y4706RF ANT 480MHZ YAGI N FEM BRKT MT |
3,816 | 35.30 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Yagi, 6-Element | 1 | 1.5 | - | 10.2dBd | - | - | N Type Female | - | - | - | Bracket Mount | 44.000" (111.76cm) | - |
