Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BF-1C-12RELAY REED SPDT .25A 12V Comus International |
100 | 2.27 |
|
Datasheet |
BF | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
BFH-1C-12EREED RELAY SPDT .5A 12V Comus International |
1,282 | 2.52 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
3563-1231-244RELAY REED DIP SPDT .4A 24V W/DI Comus International |
3,489 | 1.43 |
|
Datasheet |
3563 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 11 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|

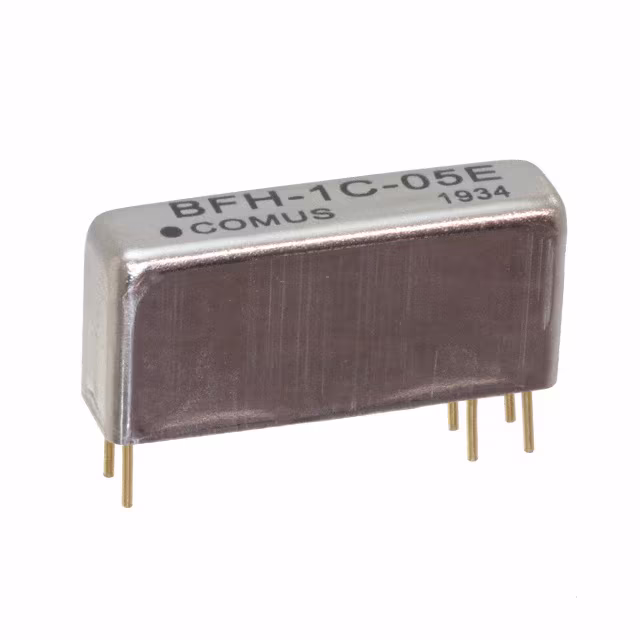

BFH-1C-05EREED RELAY SPDT .5A 5V Comus International |
1,786 | 2.42 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-1C-12REED RELAY SPDT .5A 12V Comus International |
1,817 | 2.32 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
3563-1231-122RELAY REED DIP SPDT .4A 12V W/ES Comus International |
3,984 | 1.34 |
|
Datasheet |
3563 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
3563-1231-242RELAY REED DIP SPDT .4A 24V W/ES Comus International |
2,726 | 1.40 |
|
Datasheet |
3563 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 11 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
BFS-1A-12ERELAY REED SPST .5A 12V Comus International |
3,324 | 1.55 |
|
Datasheet |
BFS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFS-1A-05CRELAY REED SPST .5A 5V Comus International |
1,406 | 1.77 |
|
Datasheet |
BFS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
BFM-1A-12CWRELAY REED SPST .5A 12V Comus International |
2,794 | 2.18 |
|
Datasheet |
BFM-CW | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
