DC DC Converters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

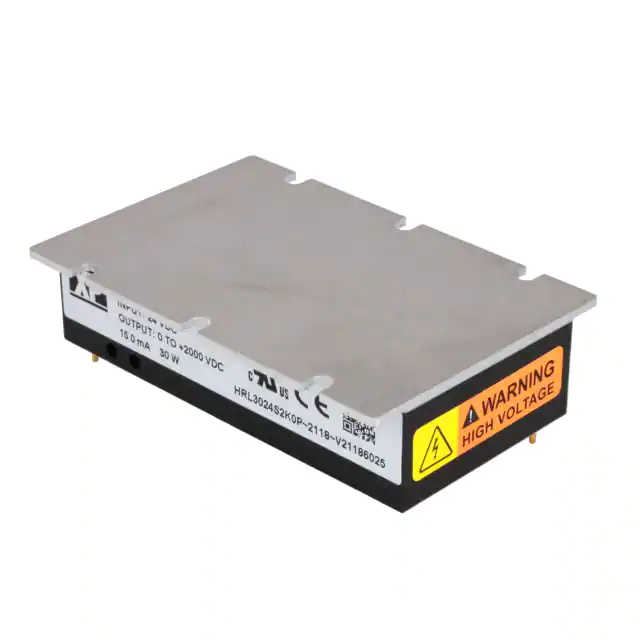

HRL3024S2K0PDC DC CONVERTER 2000V 30W XP Power |
4,684 | 136.80 |
|
Datasheet |
HRL30 (30W) | 14-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 22V | 30V | 2000V | - | - | - | 15mA | 30 W | - | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 70°C | 85% | - | - | Through Hole | - | - | CE, UKCA, UL | 60950-1; 62368-1 |
|
HRL3024S5K0NDC DC CONVERTER -5000V 30W XP Power |
3,899 | 180.00 |
|
Datasheet |
HRL30 (30W) | 14-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 22V | 30V | -5000V | - | - | - | 6mA | 30 W | - | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 70°C | 85% | - | - | Through Hole | - | - | CE, UKCA, UL | 62368-1 |
|
IES0212S24DC DC CONVERTER 24V 2W XP Power |
4,222 | - |
|
Datasheet |
IES02 (2W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.992 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | - | - | CE, EN, UKCA, UL | 62368-1 |
.jpg)
|
IML0205D09DC DC CONVERTER +/-9V 2W XP Power |
3,585 | 1.67 |
|
Datasheet |
IML02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
IML0215D12DC DC CONVERTER +/-12V 2W XP Power |
1,358 | 1.67 |
|
Datasheet |
IML02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
ITW4805SADC DC CONVERTER 5V 1W XP Power |
2,837 | 2.00 |
|
Datasheet |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | 62368-1 |
|
ITU0312S05DC-DC 3W 4:1 XP Power |
4,417 | 2.79 |
|
Datasheet |
ITU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 80°C (With Derating) | 81% | - | - | Through Hole | - | Enable, Active Floating | - | - |
|
JCB0312D09DC DC CONVERTER +/-9V 3W XP Power |
4,442 | 2.85 |
|
Datasheet |
JCB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 9V | -9V | - | - | 167mA, 167mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 78% | - | - | Through Hole | - | - | - | - |
|
|
ITU0324D12DC-DC 3W 4:1 XP Power |
4,603 | 2.90 |
|
Datasheet |
ITU03 (3W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 80°C (With Derating) | 83% | - | - | Through Hole | - | Enable, Active Floating | - | - |
|
ITP0324S15DC DC CONVERTER 15V 3W XP Power |
4,662 | 2.99 |
|
Datasheet |
ITP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - |
