Oscillators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

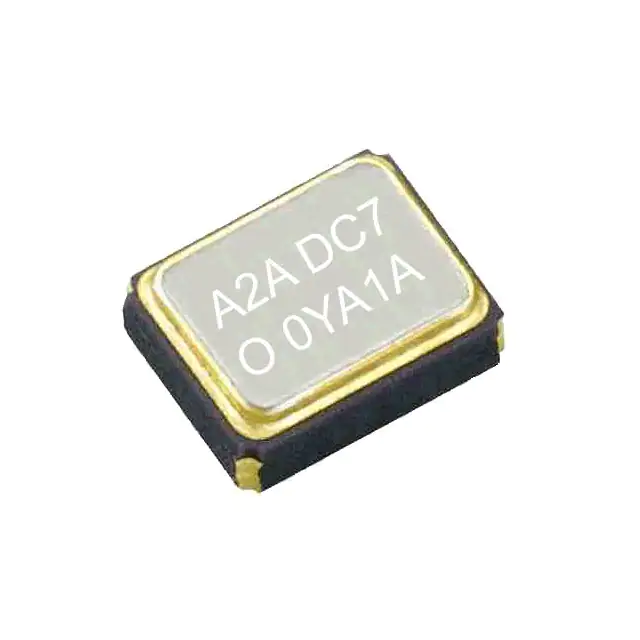

TG2016SMN 52.0000M-ECGNNM3XTAL OSC TCXO 52.0000MHZ SMD EPSON |
125 | 1.01 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 52 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 2.1mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
TG-5006CG-12H 26.0000M3XTAL OSC VCTCXO 26.0000MHZ SNWV EPSON |
204 | 0.76 |
|
Datasheet |
TG-5006CG | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | VCTCXO | 26 MHz | - | Clipped Sine Wave | 1.7V ~ 3.3V | - | - | -30°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
TG2016SMN 48.0000M-MCGNNM3TG2016SMN 48.0000M-MCGNNM3: TCXO EPSON |
202 | - |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 48 MHz | - | Clipped Sine Wave | 1.7V ~ 3.63V | ±500ppb | - | -40°C ~ 85°C | - | 2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
SG7050VAN 200.000000M-KEGA3XTAL OSC XO 200.0000MHZ LVDS SMD EPSON |
240 | 0.54 |
|
Datasheet |
SG7050 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.063" (1.60mm) |
|
SG-210STF 50.0000MY0XTAL OSC XO 50.0000MHZ CMOS SMD EPSON |
139 | 0.25 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 50 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 105°C | - | 2.6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
SG-310SDF 27.0000MB3XTAL OSC XO 27.0000MHZ CMOS SMD EPSON |
493 | 0.53 |
|
Datasheet |
SG-310 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 27 MHz | Standby (Power Down) | CMOS | 2.5V | ±50ppm | - | -20°C ~ 70°C | - | 2.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SG-210STF 20.0000MLXTAL OSC XO 20.0000MHZ CMOS SMD EPSON |
1,544 | 0.46 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 20 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
SG-636PCE 24.0000MC0:ROHSXTAL OSC XO 24.0000MHZ CMOS SMD EPSON |
450 | 0.49 |
|
Datasheet |
SG-636 | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 9mA | - | Surface Mount | 4-SOJ | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.106" (2.70mm) |
|
|
SG-310SCF 48.0000MC3XTAL OSC XO 48.0000MHZ CMOS SMD EPSON |
238 | 0.53 |
|
Datasheet |
SG-310 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 48 MHz | Standby (Power Down) | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 4.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

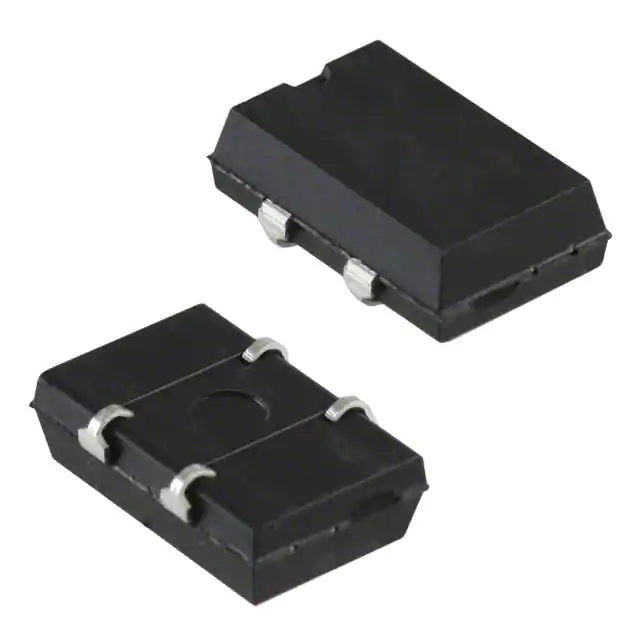

SG-615P 16.0000MC3: ROHSXTAL OSC XO 16.0000MHZ CMOS TTL EPSON |
160 | 0.95 |
|
Datasheet |
SG-615 | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 16 MHz | Enable/Disable | CMOS, TTL | 5V | ±100ppm | - | -20°C ~ 70°C | - | 23mA | - | Surface Mount | 4-SOJ | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
