Oscillators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7L-40.000MCG-TXTAL OSC TCXO 40.0000MHZ SNWV |
8,049 | - |
|
Datasheet |
7L | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 40 MHz | - | Clipped Sine Wave | 2.5V | ±2ppm | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|

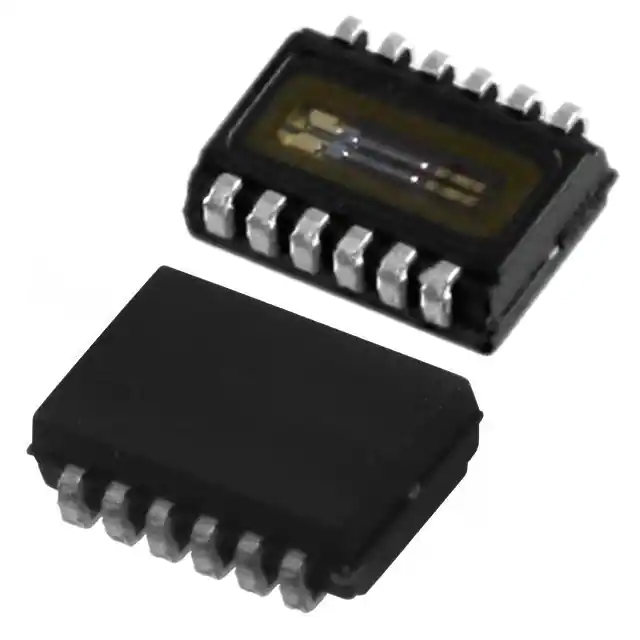

SG-3040LC 32.7680KB3:PURE SNXTAL OSC XO 32.7680KHZ CMOS SMD |
3,331 | - |
|
Datasheet |
SG-3040LC | 12-SOJ, 0.50mm pitch | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 32.768 kHz | - | CMOS | 0.9V ~ 3.6V | -120ppm, +10ppm | - | -40°C ~ 85°C | - | 3.1µA | - | Surface Mount | 12-SOJ | 0.142" L x 0.094" W (3.60mm x 2.40mm) | 0.047" (1.20mm) |
|
S1700C-20.0000XTAL OSC XO 20.0000MHZ CMOS TTL |
6,506 | - |
|
Datasheet |
SaRonix™ S1700 | 4-SMD, No Lead | Bulk | Discontinued at Digi-Key | Crystal | XO (Standard) | 20 MHz | Enable/Disable | CMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 15mA | - | Surface Mount | 4-SMD (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
AOCJY3B-12.800MHZ-EXTAL OSC VCOCXO 12.8000MHZ CMOS |
4,539 | 26.88 |
|
Datasheet |
AOCJY3 | 6-DIP (0.750", 19.05mm), 5 Leads | Tray | Active | Crystal | VCOCXO | 12.8 MHz | Standby (Power Down) | CMOS | 12V | ±10ppb | - | -20°C ~ 70°C | - | - | - | Through Hole | - | 1.000" L x 1.000" W (25.40mm x 25.40mm) | 0.512" (13.00mm) |
|
AOCJY4B-12.800MHZ-F-SWXTAL OSC VCOCXO 12.8000MHZ SNWV |
9,179 | 31.46 |
|
Datasheet |
AOCJY4 | 6-DIP (0.701", 17.80mm), 5 Leads | Tray | Active | Crystal | VCOCXO | 12.8 MHz | Standby (Power Down) | Sine Wave | 12V | ±10ppb | - | -40°C ~ 75°C | - | - | - | Through Hole | - | 1.421" L x 1.071" W (36.10mm x 27.20mm) | 0.512" (13.00mm) |
|
TCO-2111T 491.5200MHZXTAL OSC VCXO 491.5200MHZ LVPECL |
6,276 | - |
|
Datasheet |
TCO-2100 | 6-SOJ, 2.54mm pitch | - | Obsolete | Crystal | VCXO | 491.52 MHz | - | LVPECL | 3.3V | - | ±50ppm | -40°C ~ 85°C | - | 65mA | - | Surface Mount | 6-SOJ | 0.547" L x 0.344" W (13.90mm x 8.75mm) | 0.185" (4.70mm) |
|
KC2520B30.0000C10E00XTAL OSC XO 30.0000MHZ CMOS SMD |
9,845 | 0.18 |
|
Datasheet |
KC2520B-C1 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 30 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.63V | ±50ppm | - | -10°C ~ 70°C | - | 5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
|
KC2520C26.0000C2LE00XTAL OSC XO 26.0000MHZ CMOS SMD |
4,397 | 0.34 |
|
Datasheet |
KC2520C-C2 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 26 MHz | Standby (Power Down) | CMOS | 2.5V, 3.3V | ±15ppm | - | -40°C ~ 85°C | - | 3.5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
|
|
KC2520C38.4000C2YE00XTAL OSC XO 38.4000MHZ CMOS SMD |
6,450 | 0.34 |
|
Datasheet |
KC2520C-C2 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 38.4 MHz | Standby (Power Down) | CMOS | 2.5V, 3.3V | ±10ppm | - | -10°C ~ 70°C | - | 3.5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
|
|
KC2520C38.4000C2LE00XTAL OSC XO 38.4000MHZ CMOS SMD |
9,058 | 0.34 |
|
Datasheet |
KC2520C-C2 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 38.4 MHz | Standby (Power Down) | CMOS | 2.5V, 3.3V | ±15ppm | - | -40°C ~ 85°C | - | 3.5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
|
KC3225A125.000C3GE00XTAL OSC XO 125.0000MHZ CMOS SMD |
7,944 | - |
|
Datasheet |
KC3225A-C3 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 125 MHz | Standby (Power Down) | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 25mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
EG-2102CA 100.0000M-PHPABXTAL OSC SO 100.0000MHZ LVPECL |
2,545 | - |
|
Datasheet |
EG-2102CA | 6-SMD, No Lead | Bulk | Obsolete | Crystal | SO (SAW) | 100 MHz | Enable/Disable | LVPECL | 3.3V | ±100ppm | - | 0°C ~ 70°C | - | 100mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
|
EG-2102CA 100.0000M-LHPNBXTAL OSC SO 100.0000MHZ LVDS SMD |
2,893 | - |
|
Datasheet |
EG-2102CA | 6-SMD, No Lead | Bulk | Obsolete | Crystal | SO (SAW) | 100 MHz | Enable/Disable | LVDS | 3.3V | ±100ppm | - | 0°C ~ 70°C | - | 45mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
SG-210SEB 26.0000MFOSCILLATOR 26.0000 MHZ 1.8V SMD |
4,831 | - |
|
Datasheet |
SG-210S*B | 4-SMD, No Lead | Bulk | Obsolete | Crystal | XO (Standard) | 26 MHz | Standby (Power Down) | CMOS | 1.8V | ±20ppm | - | -10°C ~ 60°C | - | 1.6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
IDT8102-25VPCNSGMEMS OSC XO 25.0000MHZ CMOS SMD |
5,476 | - |
|
Datasheet |
CrystalFree™ 8102 | 4-SMD, No Lead | Tray | Obsolete | MEMS | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±100ppm | - | 0°C ~ 70°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.035" (0.90mm) |
|
|
IDT8102-25VPCNVGMEMS OSC XO 25.0000MHZ CMOS SMD |
2,888 | - |
|
Datasheet |
CrystalFree™ 8102 | 4-SMD, No Lead | Tray | Obsolete | MEMS | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±100ppm | - | 0°C ~ 70°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
|
IDT8102-40VPCNSGMEMS OSC XO 40.0000MHZ CMOS SMD |
4,014 | - |
|
Datasheet |
CrystalFree™ 8102 | 4-SMD, No Lead | Tray | Obsolete | MEMS | XO (Standard) | 40 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±100ppm | - | 0°C ~ 70°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.035" (0.90mm) |
|
|
IDT8102-50VPCNVGMEMS OSC XO 50.0000MHZ CMOS SMD |
9,403 | - |
|
Datasheet |
CrystalFree™ 8102 | 4-SMD, No Lead | Tube | Obsolete | MEMS | XO (Standard) | 50 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±100ppm | - | 0°C ~ 70°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|

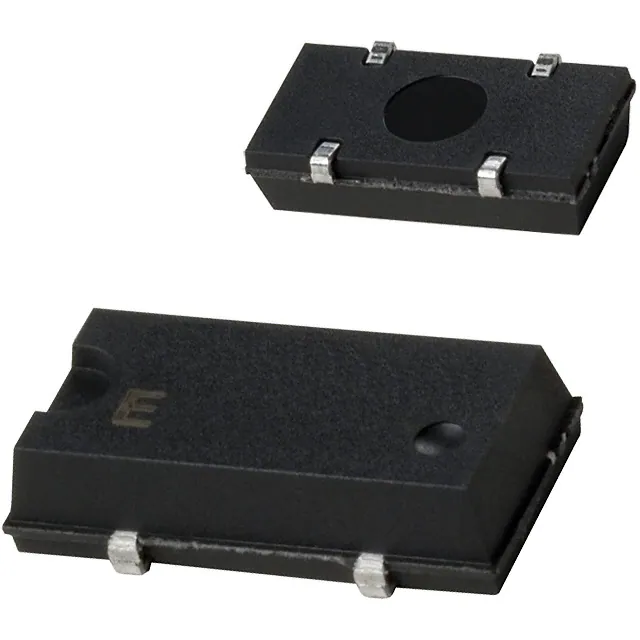

SG-3030JC32.7680KB:ROHSXTAL OSC XO 32.7680KHZ CMOS SMD |
8,976 | - |
|
Datasheet |
SG-3030 | 4-SOJ, 5.08mm pitch | Tube | Obsolete | Crystal | XO (Standard) | 32.768 kHz | - | CMOS | 1.5V ~ 5.5V | -120ppm, +10ppm | - | -20°C ~ 70°C | - | 2µA | - | Surface Mount | 4-SOJ | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.106" (2.70mm) |
|
KT2520F16800ACW28TAKXTAL OSC TCXO 16.8000MHZ SNWV |
6,672 | - |
|
Datasheet |
KT2520F | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | TCXO | 16.8 MHz | Enable/Disable | Clipped Sine Wave | 2.8V | ±500ppb | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
