Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2HW-C243MRSWITCH SNP ACT SPST-NO 0.1A 125V |
3,914 | 2.92 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 66gf | 3.059gf | 0.551" (14.0mm) | - | 0.025" (0.6mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
D2MC-5FSWITCH SNAP ACTION SPDT 5A 125V |
3,074 | 2.86 |
|
Datasheet |
D2MC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Without | Chassis Mount | Quick Connect - 0.205" (5.2mm) | IP40 | - | 0.076gfm | 0.009gfm | - | 21° | 3° | 17° | -25°C ~ 80°C |
|
311SM7-TSWITCH SNAP ACTION SPDT 5A 250V |
3,500 | 3.04 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.555" (14.1mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
311SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
4,370 | 3.18 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 40gf | 7.138gf | 0.340" (8.6mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -55°C ~ 125°C |
|
Z-15GW21-BSWITCH SNAP ACTION SPDT 15A 125V |
2,559 | 4.07 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 160gf | 28gf | 0.748" (19.0mm) | - | 0.040" (1.0mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
Z-15GW22S-BSWITCH SNAP ACTION SPDT 15A 125V |
3,529 | 4.07 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 200gf | 42gf | 1.188" (30.2mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
D2VW-5L3-1MSSWITCH SNAP ACTION SPDT 5A 125V |
2,729 | 4.16 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
2SX1-TSWITCH SNAP ACTION SPDT 7A 250V |
4,919 | 5.05 |
|
Datasheet |
SX | Tray | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 85gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
Z-15GW2-BSWITCH SNAP ACTION SPDT 15A 125V |
1,147 | 4.53 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 100gf | 22gf | 1.188" (30.2mm) | - | 0.040" (1.0mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|
83106022SWITCH SNAP ACTION SPDT 5A 250V |
1,291 | 3.42 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 408gf | 102gf | 0.451" (11.45mm) | - | 0.020" (0.5mm) | 0.026" (0.7mm) | -20°C ~ 85°C |
|
83109056SWITCH SNAP ACTION SPDT 10A 250V |
100 | 3.56 |
|
- |
83109 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 408gf | 102gf | 0.451" (11.45mm) | - | 0.020" (0.5mm) | 0.026" (0.7mm) | -20°C ~ 85°C |
|
83106226SWITCH SNAP ACTION SPDT 5A 250V |
1,890 | 3.56 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 408gf | 102gf | 0.451" (11.45mm) | - | 0.020" (0.5mm) | 0.026" (0.7mm) | -20°C ~ 85°C |
|
A-20GV-BSWITCH SNAP ACTION SPDT 20A 125V |
1,129 | 5.08 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 70gf | 14gf | 0.748" (19.0mm) | 0.625" (15.9mm) | 0.094" (2.4mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|
WW1K05D-D9SWITCH SNAP ACT 3PST 100MA 125V |
1,602 | 6.73 |
|
Datasheet |
WW | Bulk | Active | 3PST-2NO/1NC | On-Mom, Off-Mom | 100mA (AC/DC) | 125 V | 125 V | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Button Guard | 907gf | - | 0.355" (9.0mm) | - | - | 0.079" (2.0mm) | - |
|
Z-15GM22-BSWITCH SNAP ACTION SPDT 15A 125V |
1,453 | 4.95 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 538gf | 170gf | 1.156" (29.4mm) | - | 0.011" (0.28mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
1SX74-TSWITCH SNAP ACTION SPDT 7A 250V |
1,822 | 6.01 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|

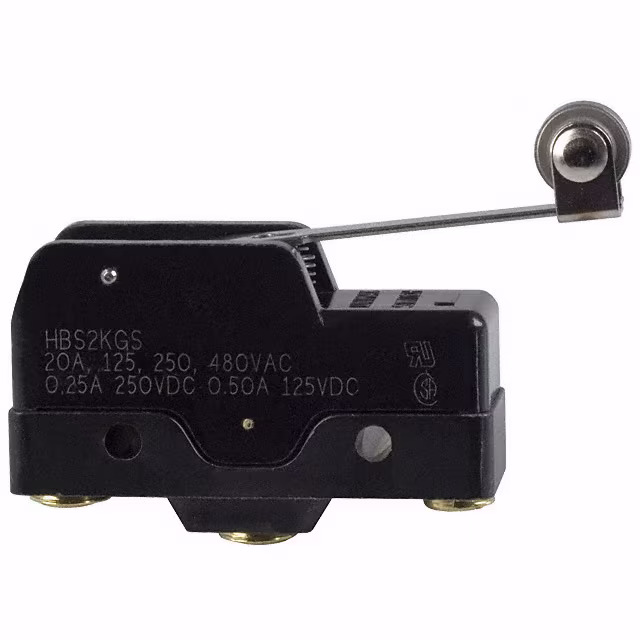

HBS2KGB4SA055CSWITCH SNAP ACTION SPDT 20A 125V |
4,661 | 6.08 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 99gf | 21gf | 1.120" (28.45mm) | 0.312" (7.9mm) | 0.062" (1.6mm) | 0.156" (3.96mm) | -55°C ~ 150°C |
|
51.001BSWITCH SNAP ACTION SPDT 10A 125V |
2,426 | 5.03 |
|
Datasheet |
PCFS-3M | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Foot Switch | - | Screw Terminal | IP20 | - | - | - | - | - | - | - | -20°C ~ 80°C |
|
X-10G-BSWITCH SNAP ACTION SPDT 10A 30V |
4,463 | 6.02 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 510gf | 114gf | 0.625" (15.9mm) | 0.035" (0.9mm) | 0.007" (0.18mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
|
D4N-112GSWITCH SNAP ACTION DPST 3A 240V |
4,773 | 8.90 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
