Keylock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

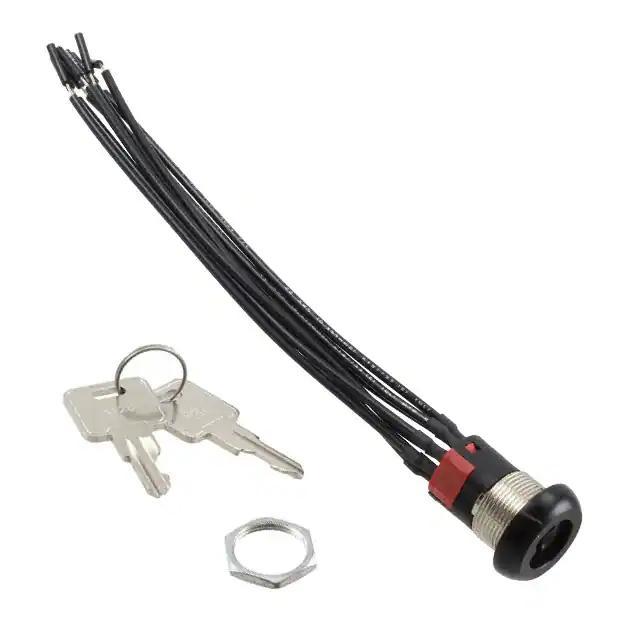

Y2001U2C8WCRQSWITCH KEYLOCK 3POS DP3T 4A 125V |
1,648 | 5.32 |
|
Datasheet |
Y | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
|
K2-118S1S4N4 01SWITCH KEYLOCK 4POS SP4T 4A 125V |
1,559 | - |
|
Datasheet |
K | Tray | Active | SP4T | 4 | Mom-Off-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | Left and Right | 45° | Copper | Gold | Panel Mount | Wire Leads | Circular - 19.18mm Dia | - | - |
|
SK25BG13SWITCH KEYLK 2POS DPDT 0.4VA 28V |
1,850 | 3.82 |
|
Datasheet |
SK | Box | Active | DPDT | 2 | On-Mom | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
|
A315132A1SZRBSWITCH KEYLK 3POS 3P3T 0.4VA 20V |
3,573 | 5.97 |
|
Datasheet |
A | Tray | Active | 3P3T | 3 | On-On-On | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
A3141U2Y2NZNQSWITCH KEYLK 2POS 3PDT 2.5A 125V |
3,317 | - |
|
Datasheet |
A | Bulk | Active | 3PDT | 2 | On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
Y201132B803NBSWITCH KEYLK 2POS DPDT 0.4VA 20V |
4,866 | 4.44 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
Y2001U2C203NGESWITCH KEYLOCK 3POS DP3T 4A 125V |
1,379 | 4.06 |
|
Datasheet |
Y | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
|
H2011U2V205NQSWITCH KEYLCK 2POS DPDT 12A 125V |
3,297 | - |
|
Datasheet |
H | Bulk | Active | DPDT | 2 | On-On | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
A216132Y2NZNQSWITCH KEYLK 4POS DP4T 2.5A 125V |
3,349 | 4.30 |
|
Datasheet |
A | Tray | Active | DP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | -30°C ~ 85°C |
|
|
YF211U2C803NBSWITCH KEYLOCK |
1,855 | - |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y200AA2C803NBSWITCH KEYLOCK |
2,228 | - |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SK25BG30SWITCH KEYLK 2POS DPDT 0.4VA 28V |
4,575 | 3.97 |
|
Datasheet |
SK | Box | Active | DPDT | 2 | On-Mom | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
|
YM061U2C2WCNBSWITCH KEYLK 2POS SPST 0.4VA 20V |
3,193 | 3.88 |
|
Datasheet |
YM | Tray | Active | SPST | 2 | Off-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Wire Leads | Circular - 11.99mm Dia | - | - |
|
|
A421122Y2NZNQSWITCH KEYLK 2POS 4PDT 2.5A 125V |
1,241 | 5.17 |
|
Datasheet |
A | Tray | Active | 4PDT | 2 | On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | -30°C ~ 85°C |
|
|
Y101132V2WCNQSWITCH KEYLOCK 2POS SPDT 4A 125V |
3,628 | 4.19 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Tubular Key | 1 only | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
|
A314132Y2NZNQSWITCH KEYLK 2POS 3PDT 2.5A 125V |
1,414 | 4.42 |
|
Datasheet |
A | Tray | Active | 3PDT | 2 | On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | -30°C ~ 85°C |
|
|
50084828-04SWITCH KEYLOCK |
3,187 | 5.65 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y201132V203DQSWITCH KEYLOCK 2POS DPDT 4A 125V |
2,694 | - |
|
Datasheet |
Y | Bulk | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Tubular Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
84828-06SWITCH KEYLOCK |
2,908 | - |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
K1201S1S1N4 01SWITCH KEYLOCK 3POS DP3T 4A 125V |
1,462 | - |
|
Datasheet |
K | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
