Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM4224WBRWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
133 | 6.48 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR |
|
ADUM4221-2BRIZDGTL ISO 5.7KV 2CH GT DVR 16SOIC |
3,307 | 6.62 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5700Vrms | 150kV/µs | 33ns, 44ns | 16ns | 25ns, 30ns | - | 4A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|

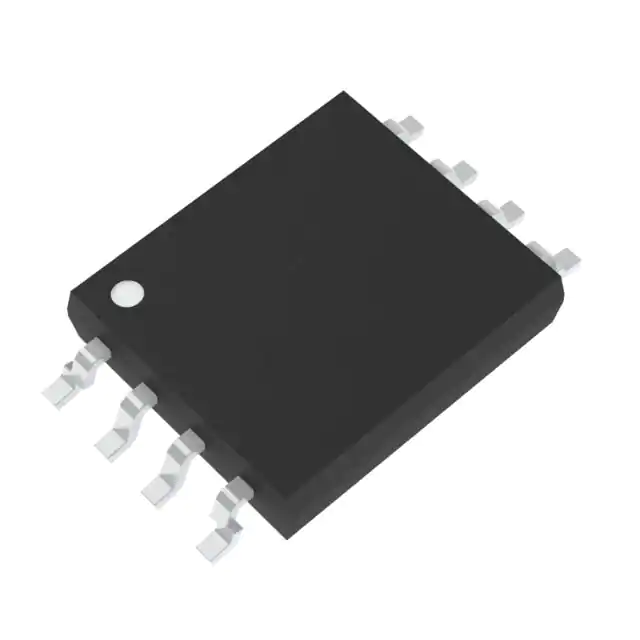

PS9332L-AXOPTOISO 5KV 1CH GATE DVR 8SOIC |
359 | 7.84 |
|
Datasheet |
- | 8-SOIC (0.268", 6.80mm Width) | Strip | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 75ns | 17ns, 17ns | 1.5A, 1.5A | 2A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UL, VDE |
|
BM60059FV-CE2DGTL ISO 2.5KV 1CH GT DVR 28SSOP |
1,364 | 7.32 |
|
Datasheet |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Not For New Designs | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 450ns, 450ns | 400ns | - | 40µA, 160µA | 1A | - | - | 4.5V ~ 24V | - | - | -40°C ~ 125°C | Surface Mount | 28-SSOP-BW | UL |
|
SI8283BC-ISRDGTL ISO 5KV 1CH GATE DVR 24SOIC |
1,110 | 7.02 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 2.8V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
1EDI2002ASXUMA2DGT ISO 3.75KV 1CH GT DVR DSO36 |
2,960 | 9.19 |
|
Datasheet |
EiceDRIVER™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3750Vrms | - | - | - | 30ns, 60ns | 1A, 1A | - | - | - | 13V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-36-63 | - |
|
|
ADUM5230WARWZDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
137 | 8.68 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 100ns, 100ns | 8ns | 25ns, 10ns (Max) | - | - | - | - | 12V ~ 18.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 16-SOIC | UR |
|
ADUM3221TRZ-EPDGTL ISO 2.5KV 2CH GT DVR 8SOIC |
3,756 | 9.04 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 7.6V ~ 18V | - | - | -55°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR |
|
ADUM4138WBRNZ-RLDGTL ISO 5KV 1CH GATE DVR 28SOIC |
875 | 9.37 |
|
Datasheet |
- | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 130ns, 121ns | - | 95ns, 100ns | - | 6A | - | - | 12V ~ 25V | Automotive | - | -40°C ~ 150°C | Surface Mount | 28-SOIC-W-FP | CSA, UL, VDE |
|
|
ADUM4137WBRNZDGTL ISO 5KV 1CH GATE DVR 28SOIC |
4,735 | 9.89 |
|
Datasheet |
- | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 131ns, 137ns | 70ns (Min) | 105ns, 107ns | - | 6A | - | - | 12V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | 28-SOIC-W-FP | CSA, UR, VDE |
|
|
ISOM8600DFGRDC input, normally open output |
1,402 | - |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 500Vrms | - | - | - | - | - | - | 1.3V | 50 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 4-SOIC | - |
|
|
UCC21551ADWR4A/6A 5kVRMS dual-channel isolat |
2,000 | - |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 6.5V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21550ADWKR4A/6A, 5-kVRMS dual-channel |
1,950 | - |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 6.5V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21551DDWKRISOLATED GATE DRIVER |
1,890 | - |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 19V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21550BDWKR4A/6A, 5-kVRMS dual-channel isol |
1,890 | - |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 9.2V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21551ADWKR4A/6A 5kVRMS dual-channel |
1,794 | - |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 6.5V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21550CDWKR4A/6A, 5-kVRMS dual-channel |
1,483 | - |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 13.5V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
ISOM8610DFGRDC INPUT, NORMALLY OPEN OUTPUT, |
2,000 | - |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | - | 200µs, 200µs | - | - | - | - | 1.3V | 50 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 4-SOIC | CQC, CSA, TUV, UL, VDE |
|
|
2EDL8033G4BXTMA1INT. POWERSTAGE/DRIVER |
4,917 | - |
|
Datasheet |
EiceDRIVER™ | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | - | - | 35ns, 35ns | - | 195ns, 106ns | 3A, 6A | 3A, 6A | - | - | 8V ~ 17V | - | - | -40°C ~ 125°C | Surface Mount | PG-VDSON-8-5 | - |
|
|
UCC21330BQDRQ1ISOLATED GATE DRIVER |
1,936 | - |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3000Vrms | 125V/ns | 45ns, 45ns | 6ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
