Interlock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA-2DPC15INTERLOCK MAGNETIC DPST |
3,365 | 73.08 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 1A (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LS42WMSGINTERLOCK SOLENOID LOCKING DPST |
3,753 | 84.60 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-40242INTERLOCK SOLENOID LOCKING 4PST |
2,200 | 85.71 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
6027388INTERLOCK INDUCTIVE |
3,668 | - |
|
Datasheet |
IN4000 | Bulk | Active | Inductive | - | - | - | 24VDC | - | Non-Contact | Connector (M12) | Staus Indicator | 10 ~ 15mm | 30mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-20241TMINTERLOCK SOLENOID LOCKING 4PST |
2,083 | 86.48 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LS42WMMIFINTERLOCK SOLENOID LOCKING 3PST |
1,821 | 94.80 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LS42WMSIFINTERLOCK SOLENOID RELEASE 3PST |
2,412 | 94.80 |
|
Datasheet |
SI-LS42 | Box | Active | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4BL-1CRG-AINTERLOCK SOLENOID LOCKING DPST |
4,810 | 146.17 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Locking | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 6A (AC) | 115VAC | 24VDC | 71kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, CSA, UL |
|
D4JL-2NFA-C6INTERLOCK SOLENOID RELEASE 3PST |
3,078 | 86.95 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 x2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
6029934INTERLOCK SOLENOID RELEASE DPST |
3,815 | - |
|
Datasheet |
i10 Lock | Bulk | Active | Solenoid Release | DPST-NC | 4A (AC/DC) | 230VAC, 24VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-40242TMINTERLOCK SOLENOID LOCKING 4PST |
1,506 | 90.68 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D40ML-P2-U-5MINTERLOCK RFID DPST |
1,070 | 126.70 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 200mA (DC) | 24VDC | 24VDC | 91kgf | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | - | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
MA-20DPCCINTERLOCK MAGNETIC DPST |
3,829 | 99.88 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NC | 1A (DC) | 30VDC | - | - | Non-Contact | Connector (Micro AC) | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
D40ML-M2-U-5MINTERLOCK RFID DPST |
2,939 | 135.40 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 200mA (DC) | 24VDC | 24VDC | 91kgf | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | - | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-40241F1MINTERLOCK SOLENOID LOCKING 4PST |
4,580 | 149.06 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
XCSE5311INTERLOCK SOLENOID LOCKING 3PST |
2,206 | 125.62 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | PG13.5 | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSE5333INTERLOCK SOLENOID LOCKING 3PST |
1,213 | 137.42 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSE7333INTERLOCK SOLENOID LOCKING 3PST |
3,647 | 137.42 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSE5513INTERLOCK SOLENOID LOCKING 3PST |
1,790 | 161.51 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

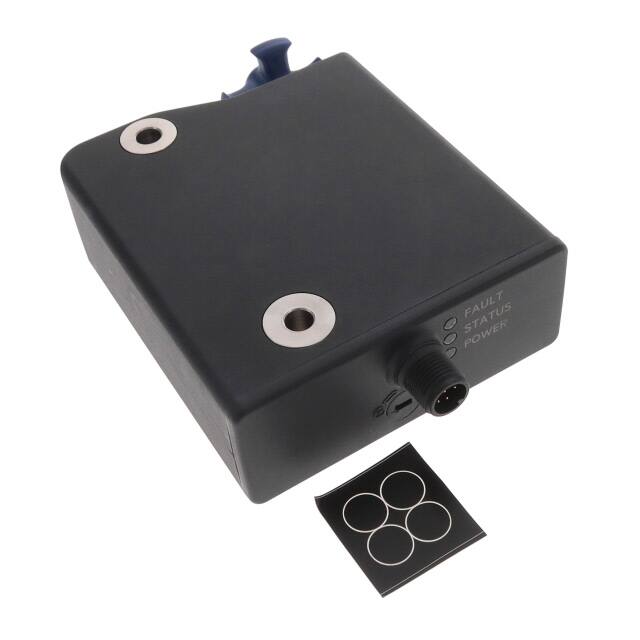

D41L2YDGN2INTERLOCK RFID SOLENOID LOCKING |
1,008 | 184.35 |
|
Datasheet |
D41L | Box | Active | RFID, Solenoid Locking | - | 250mA (DC) | 24VDC | 24VDC | 117kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | 0°C ~ 60°C | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
