Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

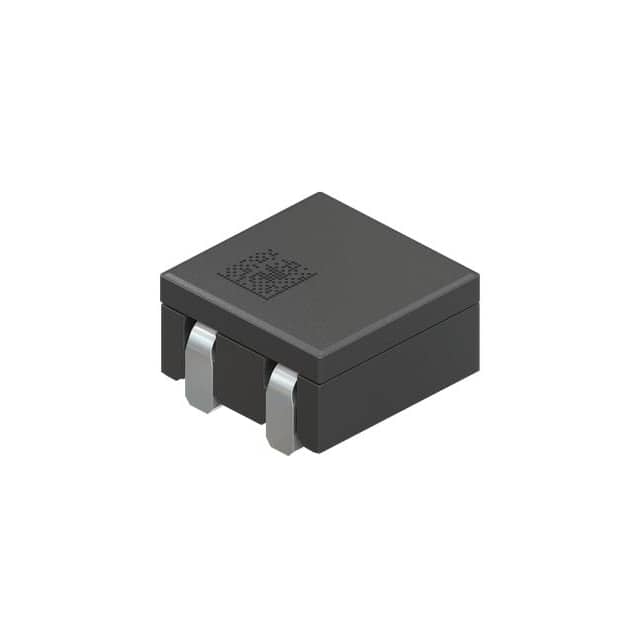

HPL505032F1070MRD3PFIXED IND 70NH 34A 777 MOHM SMD |
2,492 | 0.62 |
|
Datasheet |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
MPLCV0654L470FIXED IND 47UH 2.1A 175 MOHM SMD |
1,984 | 0.65 |
|
Datasheet |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 2.1 A | 3A | Shielded | 175mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.213" (5.40mm) |
|
|
HPL505032F1080MRD3PFIXED IND 80NH 34A 777 MOHM SMD |
1,938 | 0.62 |
|
Datasheet |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|

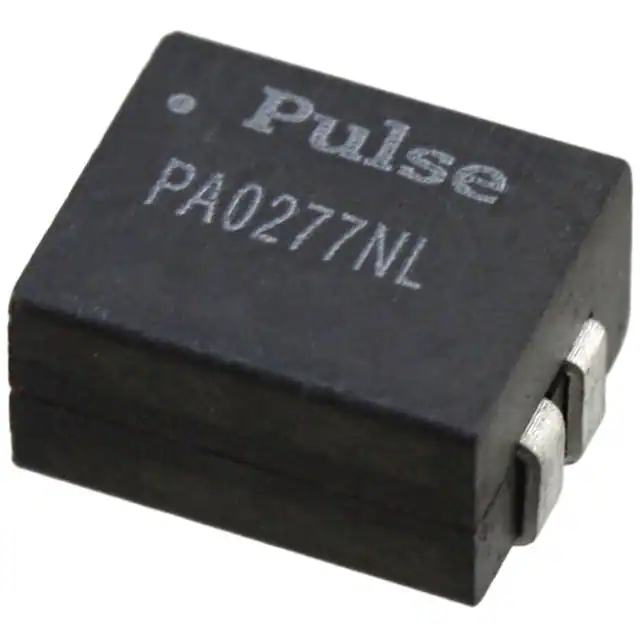

PA0277NLTFIXED IND 700NH 10.7A 95MOHM SMD |
1,157 | 0.53 |
|
Datasheet |
VOLTA 2 | Nonstandard | Tape & Reel (TR) | Active | - | - | 700 nH | ±20% | 10.7 A | 12.6A | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.350" L x 0.250" W (8.89mm x 6.35mm) | 0.177" (4.50mm) |
|
IHSM3825ER1R0LFIXED IND 1UH 5.11A 15 MOHM SMD |
220 | 1.01 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±15% | 5.11 A | 4.41A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
PM2120-391K-RCFIXED IND 390UH 3.5A 108MOHM SMD |
126 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 390 µH | ±10% | 3.5 A | - | Unshielded | 108mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.780" (19.81mm) |
|
TPI077050L105NFIXED IND 105NH SMD |
990 | 0.65 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 105 nH | - | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
MPCV1060L1R0FIXED IND 1UH 26A 1.87 MOHM SMD |
911 | 0.65 |
|
Datasheet |
MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 26 A | 35A | Shielded | 1.87mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.236" (6.00mm) |
|
DRA127-330-RFIXED IND 33UH 3.22A 60 MOHM SMD |
293 | 0.57 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3.22 A | 6.22A | Shielded | 60mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
744373965010FIXED IND 1UH 23A 0.0023OHM SMD |
1,582 | 0.60 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 23 A | 59.9A | Shielded | 2.3mOhm Max | - | 43.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
DRA73-331-RFIXED IND 330UH 391MA 1.85OHM SM |
1,206 | 0.57 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 391 mA | 423mA | Shielded | 1.85Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
7443739650022FIXED IND 220NH 32.5A 0.0006OHM |
467 | 0.60 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 32.5 A | 120A | Shielded | 0.6mOhm Max | - | 112.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
7443739650068FIXED IND 680NH 24A 0.0015OHM SM |
457 | 0.60 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 24 A | 67.4A | Shielded | 1.5mOhm Max | - | 51.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
DRA124-330-RFIXED IND 33UH 1.98A 108MOHM SMD |
438 | 0.30 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.98 A | 3.42A | Shielded | 108mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
DRA124-101-RFIXED IND 100UH 1.199A 296 MOHM |
533 | 0.53 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.199 A | 2A | Shielded | 296mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
TPI078060L082NFIXED IND 82NH 53A 341 MOHM SMD |
2,591 | 0.65 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Manganese Zinc Ferrite (MnZn) | 82 nH | ±10% | 53 A | 43A | Shielded | 341mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.236" (6.00mm) |
|
2500-12JFIXED IND 470UH 108MA 11 OHM TH |
697 | 0.56 |
|
Datasheet |
Military, MIL-PRF-M15305, MS90539 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 470 µH | ±5% | 108 mA | - | Unshielded | 11Ohm Max | 65 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
SD25-R82-RFIXED IND 820NH 3.58A 20.8 MOHM |
2,900 | 0.62 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 3.58 A | 4.67A | Shielded | 20.8mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|

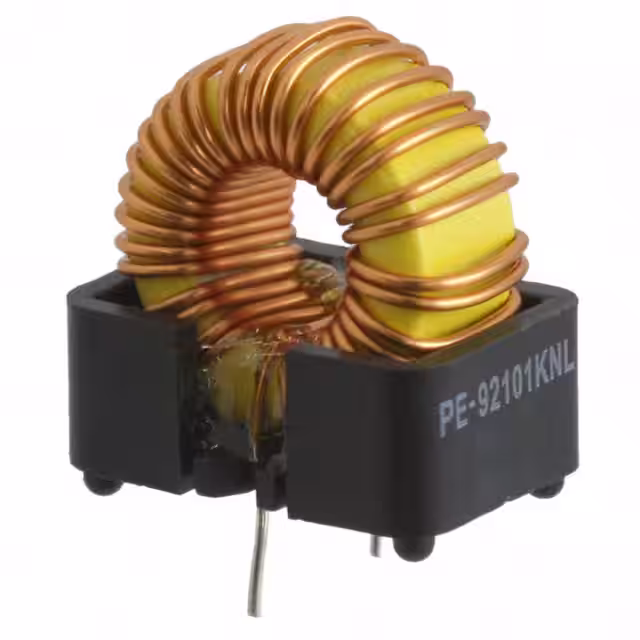

PE-92101KNLFIXED IND 50UH 2.6A 71 MOHM TH |
1,444 | 0.61 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 50 µH | ±20% | 2.6 A | - | Unshielded | 71mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.700" (17.78mm) |
|
ETQ-P4LR45XFCFIXED IND 470NH 25A 1.1 MOHM SMD |
1,561 | 0.71 |
|
Datasheet |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 25 A | - | Shielded | 1.1mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
