Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP3232DZERR68M11FIXED IND 680NH 22.2A 3.22 MOHM |
699 | 0.31 |
|
Datasheet |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 22.2 A | 14.5A | Shielded | 3.22mOhm Max | - | 62MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
RL895-472K-RCFIXED IND 4.7MH 130MA 7.89OHM TH |
586 | 0.32 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 130 mA | - | Unshielded | 7.89Ohm Max | 45 @ 252kHz | 600kHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
1.2mm.jpg)
|

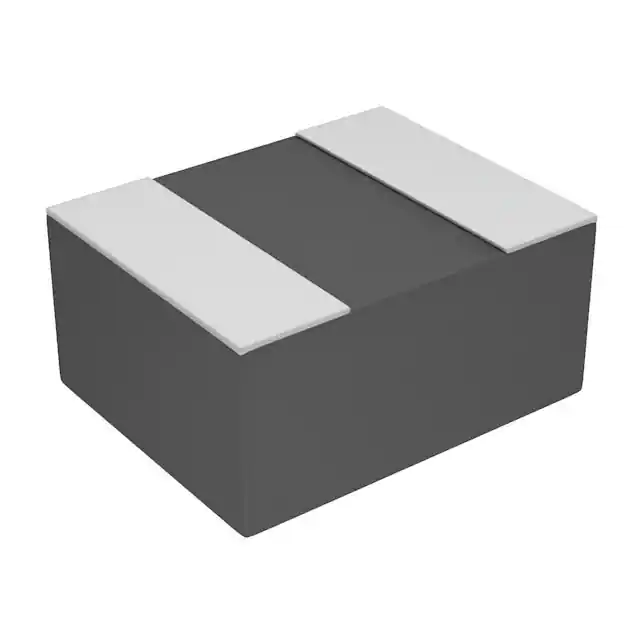

744383240068FIXED IND 680NH 3.2A 59 MOHM SMD |
3,508 | 0.28 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 3.2 A | 5.85A | Shielded | 59mOhm Max | - | 102MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74438324082FIXED IND 8.2UH 800MA 720MOHM SM |
2,896 | 0.28 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 800 mA | 1.5A | Shielded | 720mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
.jpg)
|
744383430056FIXED IND 560NH 2.1A 73 MOHM SMD |
2,879 | 0.28 |
|
Datasheet |
WE-MAPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±30% | 2.1 A | 5A | Shielded | 73mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SRP1038A-R27MFIXED IND 270NH 33A 1 MOHM SMD |
1,945 | 0.31 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 270 nH | ±20% | 33 A | 60A | Shielded | 1mOhm Max | 10 @ 100kHz | 120MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
ASPI-1306S-102M-TFIXED IND 1MH 530MA 2.01 OHM SMD |
1,512 | 0.36 |
|
Datasheet |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 530 mA | 800mA | Shielded | 2.01Ohm Max | - | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
5800-822-RCFIXED IND 8.2MH 86MA 19.7 OHM TH |
840 | 0.32 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 86 mA | 130mA | Unshielded | 19.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
SRP1038A-R45MFIXED IND 450NH 29A 1.5 MOHM SMD |
810 | 0.32 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 450 nH | ±20% | 29 A | 45A | Shielded | 1.5mOhm Max | 15 @ 100kHz | 75MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
5800-332-RCFIXED IND 3.3MH 130MA 8.8 OHM TH |
779 | 0.32 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 130 mA | 200mA | Unshielded | 8.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-392-RCFIXED IND 3.9MH 120MA 9.7 OHM TH |
705 | 0.32 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 120 mA | 180mA | Unshielded | 9.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-150-RCFIXED IND 15UH 1.9A 39 MOHM TH |
546 | 0.32 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.9 A | 3A | Unshielded | 39mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-562-RCFIXED IND 5.6MH 100MA 13.8OHM TH |
467 | 0.32 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 100 mA | 150mA | Unshielded | 13.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-153-RCFIXED IND 15MH 61MA 37.5 OHM TH |
351 | 0.32 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 61 mA | 90mA | Unshielded | 37.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
PG1712.121HLTFIXED IND 120NH 65A 0.17MOHM SMD |
338 | 0.30 |
|
Datasheet |
PG1712 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±10% | 65 A | 97A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
PG1712.151HLTFIXED IND 150NH 65A 0.17MOHM SMD |
204 | 0.30 |
|
Datasheet |
PG1712 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 65 A | 75A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
5800-270-RCFIXED IND 27UH 1.5A 66 MOHM TH |
201 | 0.30 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.5 A | 2.2A | Unshielded | 66mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|

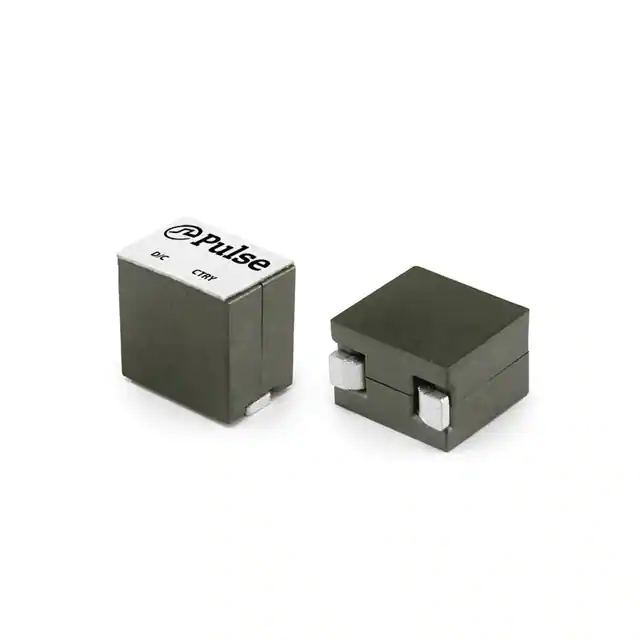

PG1712.101HLTFIXED IND 100NH 65A 0.17MOHM SMD |
159 | 0.30 |
|
Datasheet |
PG1712 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±10% | 65 A | 112A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
IHLE2020CDER4R7M51IHLE-2020CD-51 4.7 20% ER E3 |
5,997 | 0.32 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 4.1 A | 6A | Shielded | 78.3mOhm Max | - | 23.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
MPXV1D0650L2R2FIXED IND 2.2UH 11.2A 11.6 MOHM |
2,390 | 0.45 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 11.2 A | 10A | Shielded | 11.6mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
