Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXNE2424MKT6R8MNGFIXED IND 6.8UH 550MA 504MOHM SM |
4,994 | 0.09 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 550 mA | 950mA | Unshielded | 420mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LCXNE2424KKT1R5MNFIXED IND 1.5UH 1.16A 132MOHM SM |
4,990 | 0.09 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.16 A | 1.55A | Unshielded | 110mOhm | - | 94MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LCXNE2424KKT3R3MNFIXED IND 3.3UH 770MA 264MOHM SM |
4,881 | 0.09 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 770 mA | 1A | Unshielded | 220mOhm | - | 56MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|

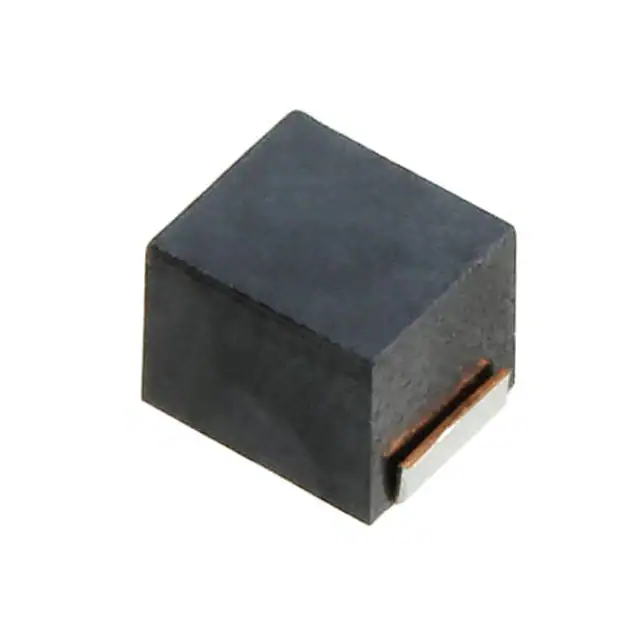

7447629330FIXED IND 33UH 210MA 5 OHM SMD |
4,579 | 0.08 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±10% | 210 mA | - | Unshielded | 5.04Ohm Max | 30 @ 2.52MHz | 22MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
LCXND6060WHL3R0NMGFIXED IND 3UH 3.4A 29.9 MOHM SMD |
3,935 | 0.09 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Unshielded | 23mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LQW04AN2N3C00DFIXED IND 2.3NH 780MA 70MOHM SMD |
3,483 | 0.09 |
|
Datasheet |
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 2.3 nH | ±0.2nH | 780 mA | - | Unshielded | 70mOhm Max | 18 @ 250MHz | 20GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
|
VLS3015ET-330MFIXED IND 33UH 390MA 984MOHM SMD |
3,379 | 0.09 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 390 mA | 390mA | Shielded | 984mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ASPI-2515-2R2M-T2FIXED IND 2.2UH 1.5A 100MOHM SMD |
2,979 | 0.09 |
|
Datasheet |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.7A | Shielded | 100mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
7447629150FIXED IND 15UH 325MA 2.5 OHM SMD |
2,907 | 0.08 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±10% | 325 mA | - | Unshielded | 2.64Ohm Max | 30 @ 2.52MHz | 33MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
7447629022FIXED IND 2.2UH 650MA 600MOHM SM |
2,000 | 0.08 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 650 mA | - | Unshielded | 600mOhm Max | 20 @ 7.96MHz | 115MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
SDCH1V6028-1R0N-RIND 1.0 UH 8.50A SMT |
1,880 | 0.09 |
|
Datasheet |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 5.7 A | 8.5A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
7447629068FIXED IND 6.8UH 450MA 1.1OHM SMD |
1,857 | 0.08 |
|
Datasheet |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 450 mA | - | Unshielded | 1.2Ohm Max | 20 @ 7.96MHz | 61MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
-Height-1.00mm.jpg)
|
1276AS-H-1R5M=P2FIXED IND 1.5UH 2.1A 87 MOHM SMD |
1,773 | 0.09 |
|
Datasheet |
DFE322510C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.1 A | 2.6A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|

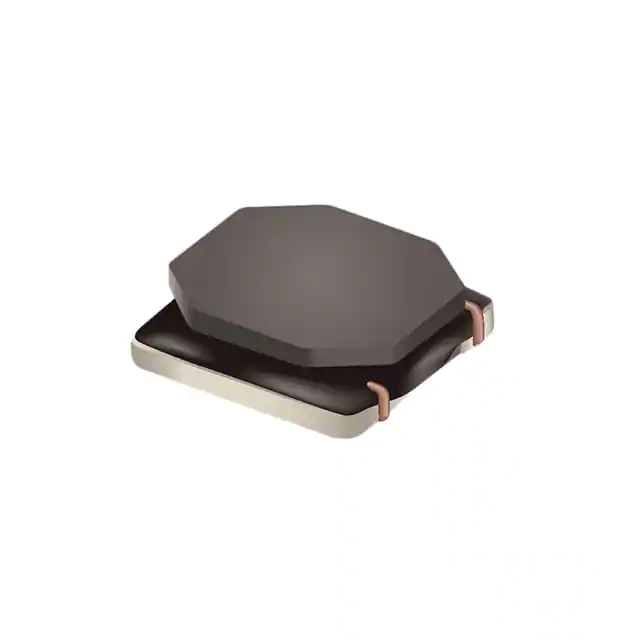

SRN4012TA-2R2MFIXED IND 2.2UH 1.9A 60 MOHM SMD |
1,769 | 0.09 |
|
Datasheet |
SRN4012TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 1.65A | Shielded | 60mOhm | 6 @ 100kHz | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
B78148E1151M000FIXED IND 150NH 6.5A 17 MOHM TH |
1,724 | 0.09 |
|
Datasheet |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 6.5 A | 14.5A | Unshielded | 17mOhm Max | 50 @ 7.96MHz | 650MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
AISM-1210-R10M-TFIXED IND 100NH 450MA 440MOHM SM |
1,574 | 0.09 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 100 nH | ±20% | 450 mA | - | Unshielded | 440mOhm Max | 28 @ 100MHz | 700MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
RLB0608-821KLFIXED IND 820UH 120MA 9.6 OHM TH |
1,574 | 0.09 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 120 mA | - | Unshielded | 9.6Ohm Max | 55 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
RLB0608-1R0MLFIXED IND 1UH 1.03A 100 MOHM TH |
1,479 | 0.09 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.03 A | - | Unshielded | 100mOhm Max | 60 @ 7.96MHz | 105MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
SDCH1V6028-100M-RIND 10 UH 2.80A SMT |
1,393 | 0.09 |
|
Datasheet |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2 A | 2.8A | Shielded | 83mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
RLB0812-153KLFIXED IND 15MH 30MA 54 OHM TH |
1,130 | 0.09 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 30 mA | - | Unshielded | 54Ohm Max | 60 @ 79.6kHz | 300kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
