Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

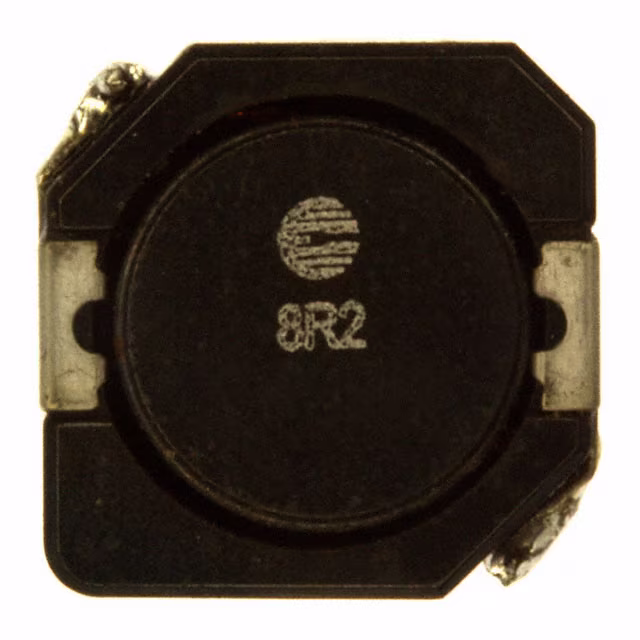

DR1040-8R2-RFIXED IND 8.2UH 3.98A 29MOHM SMD Eaton - Electronics Division |
3,279 | 0.10 |
|
Datasheet |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 3.98 A | 4.6A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
DR74-470-TRWFIXED IND 47UH Eaton - Electronics Division |
1,849 | - |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | 47 µH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|
RL1011-330-RFIXED IND 33.2UH 2.13A 70MOHM TH Eaton - Electronics Division |
3,706 | 0.08 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33.2 µH | ±10% | 2.13 A | 2.6A | Unshielded | 70mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|
|
RL1011-470-RFIXED IND 47.1UH 1.91A 85MOHM TH Eaton - Electronics Division |
1,960 | 0.08 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47.1 µH | ±10% | 1.91 A | 2.18A | Unshielded | 85mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|
|
RL1011-6R8-RFIXED IND 7.04UH 4.03A 23MOHM TH Eaton - Electronics Division |
1,685 | 0.08 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.04 µH | ±10% | 4.03 A | 5.64A | Unshielded | 23mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|
HCM1A0703V2-R22-RFIXED IND 220NH 18A 2.3 MOHM SMD Eaton - Electronics Division |
1,675 | 0.14 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 18 A | 32A | Shielded | 2.3mOhm Max | - | 150MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1A0703V2-1R0-RFIXED IND 1UH 10A 7.8 MOHM SMD Eaton - Electronics Division |
2,736 | 0.14 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 10 A | 9A | Shielded | 7.8mOhm Max | - | 48MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-1R2-RFIXED IND 1.2UH 7.8A 10.2MOHM SM Eaton - Electronics Division |
3,655 | 0.15 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.2 µH | ±20% | 7.8 A | 11A | Shielded | 10.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-R82-RFIXED IND 820NH 8.5A 8 MOHM SMD Eaton - Electronics Division |
1,070 | 0.15 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±20% | 8.5 A | 14A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
LD1-2R2-RFIXED IND 2.2UH 2.22A 47MOHM SMD Eaton - Electronics Division |
4,968 | 0.15 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.22 A | 2.76A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
