Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG1005SR20JTD25FIXED IND 200NH 100MA 4.2OHM SMD |
4,179 | 0.12 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 200 nH | ±5% | 100 mA | - | Unshielded | 4.2Ohm Max | 8 @ 100MHz | 420MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
MLF1608C220KTD25FIXED IND 22UH 2MA 1.7 OHM SMD |
4,000 | 0.05 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 2 mA | - | Shielded | 1.7Ohm Max | 20 @ 1MHz | 18MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

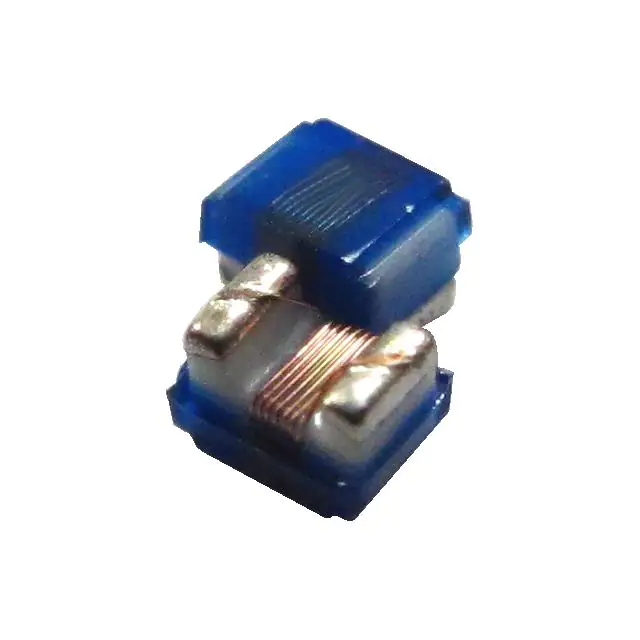

BWCM00120707R12J00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
BWCM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 110 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.047" L x 0.028" W (1.19mm x 0.70mm) | 0.026" (0.66mm) |
|
BWCS00161008R27J00INDUCTOR RF |
3,995 | 0.01 |
|
Datasheet |
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 170 mA | - | Unshielded | 2.8Ohm Max | 24 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS0016100851NJ00INDUCTOR RF |
3,990 | 0.01 |
|
Datasheet |
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±5% | 600 mA | - | Unshielded | 310mOhm Max | 38 @ 200MHz | 1.9GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCM001207075N1H00INDUCTOR RF |
3,985 | 0.01 |
|
- |
BWCM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±3% | 600 mA | - | Unshielded | 120mOhm Max | 25 @ 250MHz | 8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.047" L x 0.028" W (1.19mm x 0.70mm) | 0.026" (0.66mm) |
|
MHQ0603P2N3BTD25FIXED IND 2.3NH 700MA 150MOHM SM |
3,955 | 0.11 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.3 nH | ±0.1nH | 700 mA | - | Unshielded | 150mOhm Max | 16 @ 500MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
BWCS00231715R68G00FIXED IND 680NH 190MA 2.2OHM SMD |
3,955 | 0.04 |
|
Datasheet |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±2% | 190 mA | - | Unshielded | 2.2Ohm Max | 23 @ 50MHz | 188MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS0016100836NG00INDUCTOR RF |
3,950 | 0.01 |
|
Datasheet |
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±2% | 600 mA | - | Unshielded | 250mOhm Max | 38 @ 250MHz | 2.08GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS0023171547NJ00INDUCTOR RF |
3,945 | 0.01 |
|
Datasheet |
BWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 310mOhm Max | 60 @ 500MHz | 1.65GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS00161008R16G00INDUCTOR RF |
3,932 | 0.01 |
|
Datasheet |
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 160 nH | ±2% | 240 mA | - | Unshielded | 1.25Ohm Max | 25 @ 100MHz | 990MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS00231715R18J00INDUCTOR RF |
3,845 | 0.01 |
|
Datasheet |
BWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 400 mA | - | Unshielded | 640mOhm Max | 50 @ 250MHz | 870MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS00231715R12G00FIXED IND 120NH 400MA 510MOHM SM |
3,782 | 0.04 |
|
Datasheet |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±2% | 400 mA | - | Unshielded | 510mOhm Max | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS0023171568NG00FIXED IND 68NH 500MA 380MOHM SMD |
3,750 | 0.04 |
|
Datasheet |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±2% | 500 mA | - | Unshielded | 380mOhm Max | 60 @ 500MHz | 1.45GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS0023171533NG00FIXED IND 33NH 500MA 270MOHM SMD |
3,735 | 0.04 |
|
Datasheet |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 500 mA | - | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.05GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS0016100830NJ00INDUCTOR RF |
3,705 | 0.01 |
|
Datasheet |
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±5% | 600 mA | - | Unshielded | 144mOhm Max | 37 @ 250MHz | 2.25GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS0023171522NG00FIXED IND 22NH 500MA 220MOHM SMD |
3,575 | 0.04 |
|
Datasheet |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS00231715R10G00FIXED IND 100NH 400MA 460MOHM SM |
3,453 | 0.04 |
|
Datasheet |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 400 mA | - | Unshielded | 460mOhm Max | 65 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
MHQ0603P2N6BTD25FIXED IND 2.6NH 500MA 250MOHM SM |
2,880 | 0.11 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.6 nH | ±0.1nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
-2,00mm.jpg)
|
CBC2518T330MFIXED IND 33UH 320MA 1.95OHM SMD |
2,000 | 0.04 |
|
Datasheet |
CB, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 320 mA | 270mA | Unshielded | 1.95Ohm Max | - | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
