Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443556082FIXED IND 820NH 41.5A 0.54 MOHM |
239 | 1.14 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±20% | 41.5 A | 65A | Shielded | 0.54mOhm | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
HCM1A1305-6R8-RFIXED IND 6.8UH 8.3A 15MOHM SMD |
252 | 1.03 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 8.3 A | 13A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1A1307-120-RFIXED IND 12UH 6.1A 19 MOHM SMD |
747 | 1.15 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 12 µH | ±20% | 6.1 A | 11A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-220-RFIXED IND 22UH 4.8A 35 MOHM SMD |
250 | 1.09 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 4.8 A | 8A | Shielded | 35mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
IHTH0750IZEBR47M5AFIXED IND 470NH 83A 0.52 MOHM TH |
107 | 1.25 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 470 nH | ±20% | 83 A | 44A | Shielded | 0.52mOhm Max | - | 67MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
SPD125R-103MFIXED IND 10UH 4A 55 MOHM SMD |
1,803 | 1.11 |
|
Datasheet |
SPD125R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125R-104MFIXED IND 100UH 1.3A 210MOHM SMD |
548 | 1.11 |
|
Datasheet |
SPD125R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | 1.3A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
ER1840-17JSFIXED IND 3UH 945MA 140 MOHM TH |
371 | 1.14 |
|
Datasheet |
Military, MIL-PRF-39010/05, ER1840 | Axial | Tape & Reel (TR) | Active | - | Iron | 3 µH | ±5% | 945 mA | - | Unshielded | 140mOhm Max | 30 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
B82559B9153A019FIXED IND 15UH 10.7A 11 MOHM SMD |
423 | 1.37 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 10.7 A | 14.7A | Shielded | 11mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.354" (9.00mm) |
.jpg)
|
IHLP7575GZER330M51FIXED IND 33UH 10.2A 0.027OHM SM |
418 | 1.21 |
|
Datasheet |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.2 A | 14.3A | Shielded | 27mOhm Max | - | 4.4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|

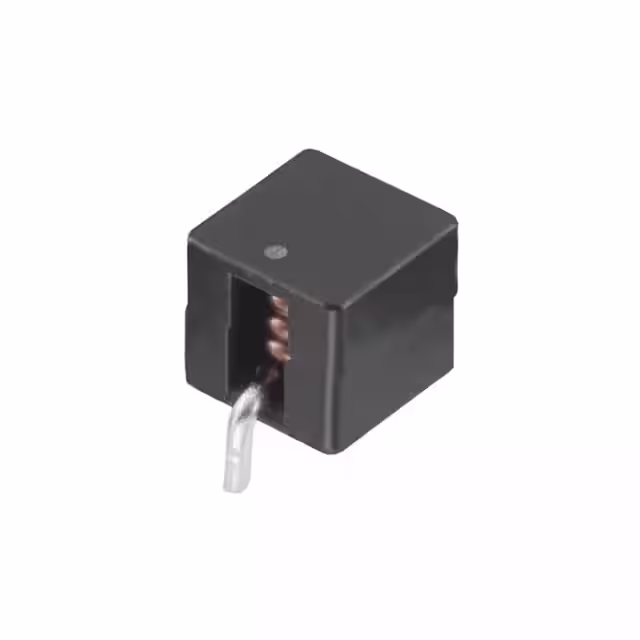

78432010005WE-HCIT HIGH CURRENT INDUCTOR TH |
294 | 1.19 |
|
Datasheet |
WE-HCIT | Radial, Vertical | Tape & Reel (TR) | Active | - | - | 500 nH | ±20% | 25.1 A | 25A | Unshielded | 0.88mOhm | - | 250MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | Radial Lead | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.382" (9.70mm) |
|
SH50C-3.0-150FIXED IND 150UH 3A 100 MOHM TH |
576 | 1.13 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 3 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
4590R-225KFIXED IND 2.2MH 615MA 1.76OHM TH |
1,019 | 1.13 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 615 mA | 380mA | Unshielded | 1.76Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-155KFIXED IND 1.5MH 750MA 1.18OHM TH |
500 | 1.13 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 750 mA | 460mA | Unshielded | 1.18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590-686KFIXED IND 68MH 110MA 52.8 OHM TH |
387 | 1.13 |
|
Datasheet |
4590 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 110 mA | 70mA | Unshielded | 52.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-106KFIXED IND 10MH 300MA 7.3 OHM TH |
269 | 1.13 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 300 mA | 180mA | Unshielded | 7.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-565KFIXED IND 5.6MH 395MA 4.24OHM TH |
241 | 1.13 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 395 mA | 240mA | Unshielded | 4.24Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
.jpg)
|
AIRD-03-4R7MFIXED IND 4.7UH 21A 3 MOHM TH |
397 | 1.21 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 21 A | 54A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
B82559B0203A019FIXED IND 20UH 9.5A 13.5MOHM SMD |
102 | 1.43 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 20 µH | ±10% | 9.5 A | 13.5A | Shielded | 13.5mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.378" (9.60mm) |
|
4922R-37LFIXED IND 1MH 240MA 6.9 OHM SMD |
11,583 | 1.15 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±15% | 240 mA | 240mA | Unshielded | 6.9Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
