Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9132TFIXED IND 1MH 460MA 1.75 OHM SMD |
4,170 | 1.76 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 460 mA | 460mA | Shielded | 1.75Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
059KM2502VVERTICAL TOROIDAL INDUCTOR |
4,988 | - |
|
Datasheet |
KM | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 9.8 A | 8.3A | Shielded | 11mOhm Max | - | 8MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia x 0.475" W (27.94mm x 12.06mm) | - |
|
|
PL8302NLFIXED IND 20.4UH 13.5A 10.1 MOHM |
3,433 | 1.81 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 20.4 µH | - | 13.5 A | - | Unshielded | 10.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8141NLTFIXED IND 25.9UH 5.1A 32MOHM SMD |
1,200 | 1.78 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25.9 µH | - | 5.1 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
PL8141TFIXED IND 25.9UH 5.1A 32MOHM SMD |
2,700 | 1.78 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25.9 µH | - | 5.1 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
CTX03-12357-2FIXED IND 1.8UH |
4,902 | - |
|
- |
- | - | Bulk | Obsolete | - | - | 1.8 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
050AT1002VSMVERTICAL MOUNT TOROIDAL INDUCTOR |
3,409 | - |
|
Datasheet |
ATVSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10 µH | ±10% | 7.36 A | 8.7A | Shielded | 10mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.625" L x 0.550" W (15.87mm x 13.97mm) | 0.550" (13.97mm) |
|

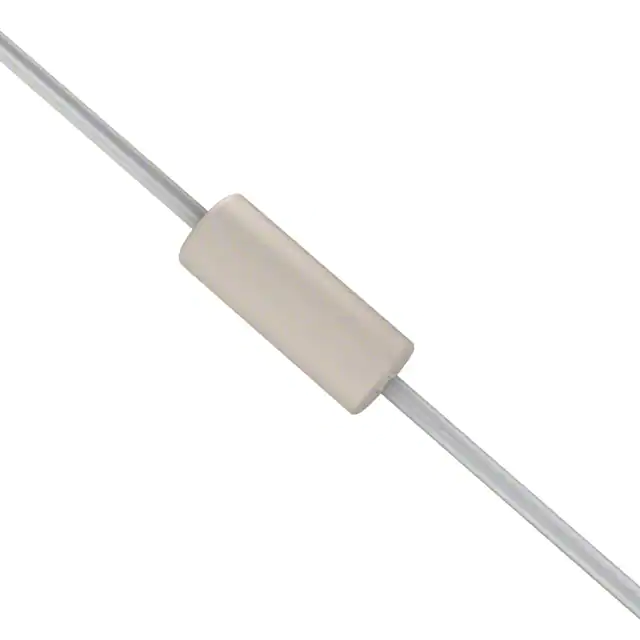

0819-76FFIXED IND 150UH 51MA 18 OHM TH |
1,341 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±1% | 51 mA | - | Unshielded | 18Ohm Max | 35 @ 790kHz | 7.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-78FFIXED IND 180UH 49MA 20 OHM TH |
3,480 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±1% | 49 mA | - | Unshielded | 20Ohm Max | 35 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-80FFIXED IND 220UH 42.5MA 26.5 OHM |
4,375 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±1% | 42.5 mA | - | Unshielded | 26.5Ohm Max | 35 @ 790kHz | 7.1MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-82FFIXED IND 270UH 39MA 30.5 OHM TH |
2,438 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±1% | 39 mA | - | Unshielded | 30.5Ohm Max | 35 @ 790kHz | 6.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-84FFIXED IND 330UH 34MA 40.5 OHM TH |
2,066 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±1% | 34 mA | - | Unshielded | 40.5Ohm Max | 35 @ 790kHz | 6.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-86FFIXED IND 390UH 33MA 43 OHM TH |
2,017 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±1% | 33 mA | - | Unshielded | 43Ohm Max | 35 @ 790kHz | 5.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-88FFIXED IND 470UH 31.5MA 48 OHM TH |
2,885 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±1% | 31.5 mA | - | Unshielded | 48Ohm Max | 35 @ 790kHz | 5.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-90FFIXED IND 560UH 28MA 60 OHM TH |
3,376 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±1% | 28 mA | - | Unshielded | 60Ohm Max | 35 @ 790kHz | 5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-92FFIXED IND 680UH 27MA 66 OHM TH |
3,227 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±1% | 27 mA | - | Unshielded | 66Ohm Max | 35 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-94FFIXED IND 820UH 25.5MA 72 OHM TH |
1,005 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±1% | 25.5 mA | - | Unshielded | 72Ohm Max | 35 @ 790kHz | 3.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-96FFIXED IND 1MH 24.5MA 79 OHM TH |
2,344 | 2.46 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±1% | 24.5 mA | - | Unshielded | 79Ohm Max | 35 @ 790kHz | 3.3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
SMP5022-561MLFMOLDED UNSHIELDED INDUCTOR |
3,706 | - |
|
Datasheet |
SMP5022 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 µH | ±20% | 5.3 A | 15A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
PL9208NLTFIXED IND 10UH 3.6A 35 MOHM SMD |
2,498 | 1.81 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.6 A | 4A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
