Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108-V-RCFIXED IND 39UH 4.8A 32 MOHM TH Bourns Inc. |
2,277 | 0.64 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 39 µH | ±15% | 4.8 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2115-V-RCFIXED IND 180UH 2.6A 110 MOHM TH Bourns Inc. |
2,315 | 0.64 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 180 µH | ±15% | 2.6 A | - | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2106-H-RCFIXED IND 27UH 5.3A 26 MOHM TH Bourns Inc. |
3,796 | 0.64 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 27 µH | ±15% | 5.3 A | - | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2200HT-271-V-RCFIXED IND 270UH 3.3A 160 MOHM TH Bourns Inc. |
2,877 | 0.84 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 270 µH | ±15% | 3.3 A | - | Shielded | 160mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
PM2110-180K-RCFIXED IND 18UH 10.2A 9 MOHM SMD Bourns Inc. |
1,007 | 0.67 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 18 µH | ±10% | 10.2 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.570" (14.48mm) |
|
|
PM2110-271K-RCFIXED IND 270UH 3.4A 82 MOHM SMD Bourns Inc. |
2,962 | 0.67 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 270 µH | ±10% | 3.4 A | - | Unshielded | 82mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
PM2120-681K-RCFIXED IND 680UH 3A 142 MOHM SMD Bourns Inc. |
3,817 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 680 µH | ±10% | 3 A | - | Unshielded | 142mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.850" (21.59mm) |
|

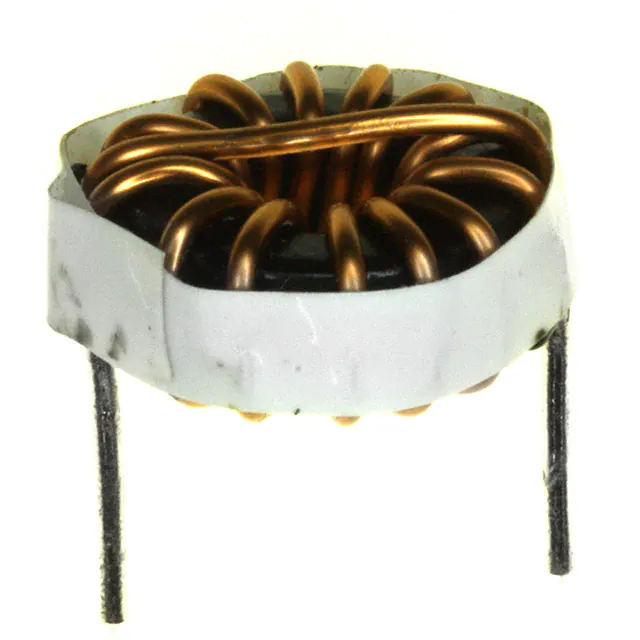

2100LL-150-H-RCFIXED IND 15UH 10.5A 6 MOHM TH Bourns Inc. |
3,582 | 0.81 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 15 µH | ±15% | 10.5 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
PQ2614BLA-1R5KFIXED IND 1.5UH 30A 1.6 MOHM SMD Bourns Inc. |
2,943 | 0.75 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 30 A | - | Shielded | 1.6mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BHA-3R3KFIXED IND 3.3UH 30A 1.9 MOHM SMD Bourns Inc. |
2,969 | 0.76 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 30 A | 66.9A | Shielded | 1.9mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
