Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS1608MT2R2FIXED IND 2.2UH 1.8A 50 MOHM SMD Viking Tech |
4,000 | 0.06 |
|
Datasheet |
PS | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.8 A | 920mA | Shielded | 50mOhm Max | 40 @ 200kHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.179" W (6.60mm x 4.54mm) | 0.115" (2.92mm) |
|
ML03KT4R7FIXED IND 4.7UH 15MA 2.1 OHM SMD Viking Tech |
12,000 | 0.00 |
|
Datasheet |
ML | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 15 mA | - | Unshielded | 2.1Ohm Max | 35 @ 10MHz | 33MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
PCD0302MT4R7FIXED IND 4.7UH 1A 170 MOHM SMD Viking Tech |
2,000 | 0.01 |
|
Datasheet |
PCD | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
VLH322515-2R2MFIXED IND 2.2UH 790MA 126MOHM SM Viking Tech |
2,000 | 0.02 |
|
Datasheet |
VLH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 790 mA | - | Unshielded | 126mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|

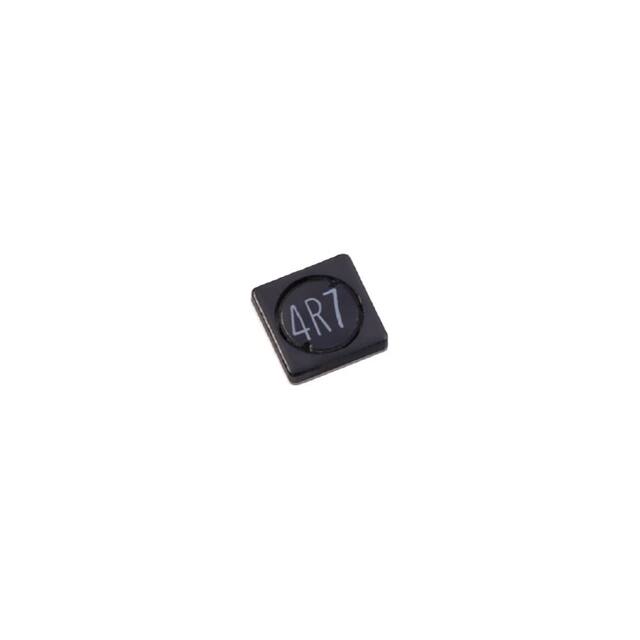

PCF4020NT4R7FIXED IND 4.7UH 1.1A 146MOHM SMD Viking Tech |
10,500 | 0.03 |
|
Datasheet |
PCF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.1 A | - | Shielded | 146mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
PCS125MT180FIXED IND 18UH 3A 34 MOHM SMD Viking Tech |
800 | 0.03 |
|
Datasheet |
PCS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 3 A | - | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
PCS125MT6R8FIXED IND 6.8UH 5.9A 23 MOHM SMD Viking Tech |
400 | 0.04 |
|
Datasheet |
PCS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 5.9 A | - | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|

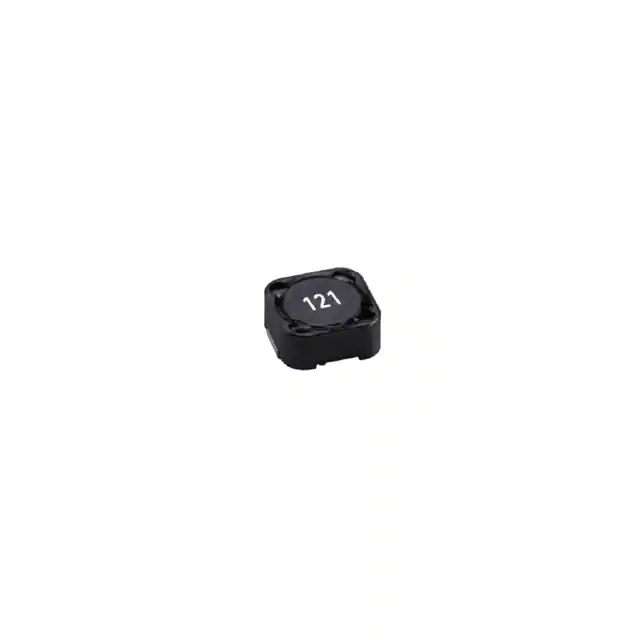

PCSH127MT6R8FIXED IND 6.8UH 13.3A 21MOHM SMD Viking Tech |
1,000 | 0.06 |
|
Datasheet |
PCS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 13.3 A | - | Shielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
ML05KT2R2FIXED IND 2.2UH 30MA 650MOHM SMD Viking Tech |
4,000 | 0.00 |
|
Datasheet |
ML | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 30 mA | - | Unshielded | 650mOhm Max | 45 @ 10MHz | 50MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ML05KT220FIXED IND 22UH 5MA 1.1 OHM SMD Viking Tech |
3,000 | 0.00 |
|
Datasheet |
ML | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Unshielded | 1.1Ohm Max | 30 @ 1MHz | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
