Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1210R-103JFIXED IND 10UH 291MA 1.9 OHM SMD |
400 | 0.32 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 291 mA | - | Shielded | 1.9Ohm Max | 40 @ 2.5MHz | 28MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
784373865150Power Inductor 15 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 9.7 A | 11.45A | Shielded | 28mOhm Max | - | 8.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865100Power Inductor 10 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 11.4 A | 15.9A | Shielded | 17.8mOhm Max | - | 8.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865056Power Inductor 5.6 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 14.5 A | 23.1A | Shielded | 10mOhm Max | - | 15.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865022Power Inductor 2.2 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 24.4 A | 33.35A | Shielded | 4.5mOhm Max | - | 24.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865068Power Inductor 6.8 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 13.2 A | 23.3A | Shielded | 11.5mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865010Power Inductor 1 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 33.7 A | 44.8A | Shielded | 2.3mOhm Max | - | 48MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865082Power Inductor 8.2 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 12.7 A | 20.2A | Shielded | 13.8mOhm Max | - | 11.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865015Power Inductor 1.5 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 28.6 A | 32.1A | Shielded | 2.5mOhm Max | - | 30.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865220Power Inductor 22 H 20 |
400 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 7.8 A | 10.75A | Shielded | 39.5mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
784373865330Power Inductor 33 H 20 |
395 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 6.3 A | 8.45A | Shielded | 69mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
FP1012V2-R150-RIND FLAT PAC 150NH 83A 2 PADS |
205 | 0.42 |
|
Datasheet |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 84 A | 83A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
CMLB177T-3R3MSIND SMD 3.3UH MOLDING CHOKE |
200 | - |
|
Datasheet |
CMLB177T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 26 A | 26A | Unshielded | 3.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
CMLB177T-220MSIND SMD 22.0UH MOLDING CHOKE |
200 | - |
|
Datasheet |
CMLB177T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 8.7 A | 10.5A | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
CMLB177T-330MSIND SMD 33.0UH MOLDING CHOKE |
200 | - |
|
Datasheet |
CMLB177T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 8 A | 8.6A | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
CMLB177T-150MSIND SMD 15.0UH MOLDING CHOKE |
200 | - |
|
Datasheet |
CMLB177T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 11 A | 13.5A | Unshielded | 15.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
7687709472WE-PDHV SMT POWER INDUCTOR SIZE |
220 | - |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Molded | Nickel Zinc Ferrite (NiZn) | 4.7 mH | ±20% | 300 mA | 480mA | Unshielded | 7.8Ohm Max | - | 500kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
|
7687709682WE-PDHV SMT POWER INDUCTOR SIZE |
213 | - |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Molded | Nickel Zinc Ferrite (NiZn) | 6.8 mH | ±20% | 280 mA | 380mA | Shielded | 9.6Ohm Max | - | 450kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|

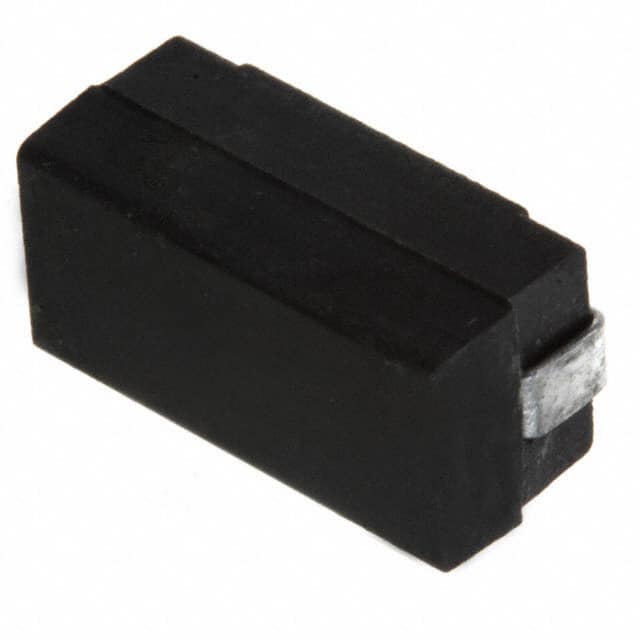

5022-102JFIXED IND 1UH 1.125A 290MOHM SMD |
200 | 0.46 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±5% | 1.125 A | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
PA2050.273NLFIXED IND 27UH 7.8A 14.9MOHM SMD |
350 | 0.54 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 27 µH | ±10% | 7.8 A | 9A | Shielded | 14.9mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
