Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBUC9664120R15LF3IND,150NH,58A,0.135M,-40~+125C |
600 | - |
|
Datasheet |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±15% | 70 A | 58A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.472" (12.00mm) |
|
|
HTTI-10-9.9TOROIDAL IND HI TEMP 10UH 9.9ADC |
480 | - |
|
Datasheet |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 10 µH | ±15% | 9.9 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-18-8.6TOROIDAL IND HI TEMP 18UH 8.6ADC |
480 | - |
|
Datasheet |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 18 µH | ±15% | 8.6 A | - | Shielded | 16mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
VLBUC9664120R12LF3IND,120NH,82A,0.135M,-40~+125C |
600 | - |
|
Datasheet |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±15% | 70 A | 82A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.472" (12.00mm) |
|
7847229020FIXED IND 1.96UH 15A 2.4MOHM SMD |
592 | - |
|
Datasheet |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.96 µH | ±20% | 15 A | 39A | Unshielded | 2.4mOhm | - | 134MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Surface Mount | - | 0.713" L x 0.354" W (18.10mm x 9.00mm) | 0.394" (10.00mm) |
|
|
VLBUC9664120R10LF3IND,100NH,100A,0.135M,-40~+125C |
536 | - |
|
Datasheet |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 nH | ±15% | 70 A | 100A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.472" (12.00mm) |
|
7847227027FIXED IND 2.72UH 10A 6.4MOHM SMD |
472 | - |
|
Datasheet |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.72 µH | ±20% | 10 A | 17.5A | Unshielded | 6.4mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.587" L x 0.354" W (14.90mm x 9.00mm) | 0.276" (7.00mm) |
|
1537-26KFIXED IND 3.9UH 310MA 2.3 OHM TH |
499 | 0.16 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.9 µH | ±10% | 310 mA | - | Unshielded | 2.3Ohm Max | 33 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-24KFIXED IND 3.3UH 335MA 2 OHM TH |
405 | 0.16 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.3 µH | ±10% | 335 mA | - | Unshielded | 2Ohm Max | 33 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

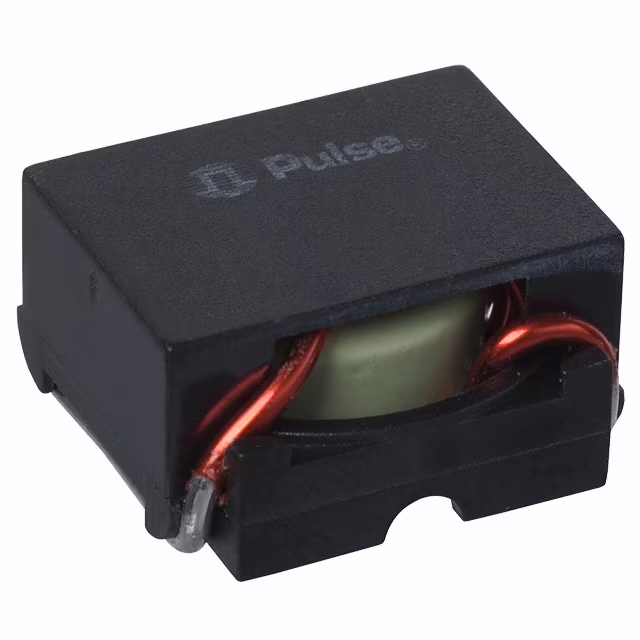

PE-53682NLFIXED IND 4.7UH 10.4A 8.3MOHM SM |
1,699 | 0.32 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 4.7 µH | - | 10.4 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.390" (9.91mm) |
|
|
784373680100Power Inductor 10 H 20 |
800 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 8.6 A | 12.2A | Shielded | 32mOhm Max | - | 11.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
784373680220Power Inductor 22 H 20 |
796 | - |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5.7 A | 7.5A | Shielded | 68mOhm Max | - | 7.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
1210R-123JFIXED IND 12UH 272MA 2.5 OHM SMD |
500 | 0.33 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±5% | 272 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.5MHz | 28MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-472JFIXED IND 4.7UH 352MA 1.5OHM SMD |
215 | 0.33 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 352 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.9MHz | 45MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
P1330R-472KFIXED IND 4.7UH 1.33A 125MOHM SM |
1,000 | 0.34 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 1.33 A | 720mA | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
UP2-680-RFIXED IND 68UH 1.7A 189.8MOHM SM |
600 | 0.35 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.7 A | 1.2A | Unshielded | 189.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
PG0926.113NLTFIXED IND 11.5UH 9.5A 12MOHM SMD |
493 | 0.67 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11.5 µH | ±20% | 9.5 A | 10.5A | Unshielded | 12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PE-53813SNLTFIXED IND 55UH 560MA 500MOHM SMD |
304 | 0.32 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 55 µH | ±20% | 560 mA | - | Shielded | 500mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PG0926.223NLFIXED IND 22UH 7A 21 MOHM SMD |
1,761 | - |
|
Datasheet |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 7 A | 7.5A | Unshielded | 21mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
ASPIAIG-Q1030-1R0M-TFIXED IND 1UH 23A 4.95 MOHM SMD |
2,000 | - |
|
Datasheet |
ASPIAIG-Q1030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 23 A | 30A | Shielded | 4.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
