Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
511-34JFIXED IND 3.6UH 325MA 2.15OHM TH |
989 | 0.25 |
|
Datasheet |
511 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.6 µH | ±5% | 325 mA | - | Unshielded | 2.15Ohm Max | 33 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
74431012007FIXED IND 70NH 37A 0.000125OHM |
300 | 0.40 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 70 nH | ±15% | 37 A | 125A | Shielded | 0.125mOhm | - | 149MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1012 | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
74431012010FIXED IND 100NH 37A 0.000125OHM |
300 | 0.40 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±15% | 37 A | 125A | Shielded | 0.125mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1012 | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
74431012012FIXED IND 120NH 37A 0.000125OHM |
300 | 0.40 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±15% | 37 A | 125A | Shielded | 0.125mOhm | - | 75MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1012 | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
1025R-50KFIXED IND 18UH 149MA 3.1 OHM TH |
1,000 | 0.19 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 18 µH | ±10% | 149 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-48KFIXED IND 15UH 157MA 2.8 OHM TH |
950 | 0.19 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±10% | 157 mA | - | Unshielded | 2.8Ohm Max | 45 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-02KFIXED IND 180NH 1.12A 120MOHM TH |
360 | 0.20 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±10% | 1.12 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
FP1012V3-R070-RIND FP1012V3-R070-R FLAT-PAC |
319 | 0.32 |
|
Datasheet |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±10% | 84 A | 190A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
7843330033FIXED IND 330NH 26A 1.7MOHM SMD |
195 | 0.46 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 26 A | 54.5A | Shielded | 1.7mOhm Max | - | 230MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
7843330180FIXED IND 1.8UH 16A 4.7MOHM SMD |
178 | 0.46 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 16 A | 25.9A | Shielded | 4.7mOhm Max | - | 67MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
0819R-24KFIXED IND 1UH 435MA 250 MOHM TH |
485 | 0.30 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 µH | ±10% | 435 mA | - | Unshielded | 250mOhm Max | 40 @ 25MHz | 190MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
1210-221KFIXED IND 220NH 805MA 320MOHM SM |
268 | 0.21 |
|
Datasheet |
1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 805 mA | - | Unshielded | 320mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
VLBU10060120T-R07M-1FIXED IND 70NH 83A 0.12MOHM SMD |
245 | - |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 70 nH | ±20% | 83 A | 160A | Unshielded | 0.132mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
74457233WE-PD4 SMT POWER INDUCTOR SIZE T |
226 | - |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±10% | 1 A | 1.9A | Unshielded | 564mOhm Max | - | 2.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
GP3125-101MLFSHIELDED POWER CHOKE |
2,922 | - |
|
Datasheet |
GP3125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.3 A | - | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

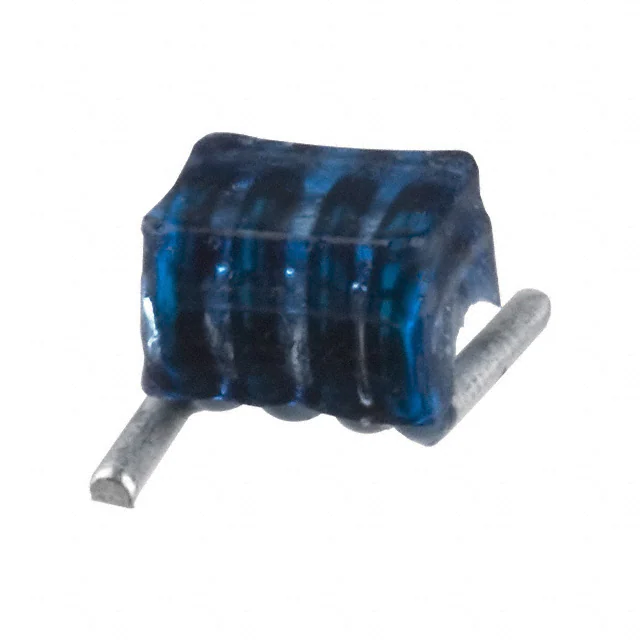

4426-7NCFIXED IND 22NH 3A SMD |
250 | - |
|
Datasheet |
4426 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 3 A | - | Unshielded | - | 102 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
1468507CFIXED IND 6.8MH 700MA 2.3 OHM TH |
1,404 | 0.51 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 6.8 mH | ±10% | 700 mA | - | Unshielded | 2.3Ohm Max | 47 @ 50kHz | 400kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.787" (20.00mm) |
|
|
LESM0103R5P1FV0EChoke 10 A |
265 | - |
|
Datasheet |
SM | Radial | Bulk | Active | Molded | Iron | 3.7 µH | - | 10 A | - | Unshielded | 0.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 130°C | 20 kHz | - | Through Hole | Radial | 0.945" L x 0.512" W (24.00mm x 13.00mm) | 1.024" (26.00mm) |
|
SD20-2R2-RFIXED IND 2.2UH 2.45A 42.9 MOHM |
2,400 | 0.28 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.45 A | 1.87A | Shielded | 42.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
VAMV06077E-8R2MM2IND SMD 8.2UH AUTO GRADE CHOKE |
600 | - |
|
Datasheet |
VAMV06077E | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 3.3 A | 6.6A | Unshielded | 45.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.272" L x 0.299" W (6.90mm x 7.60mm) | 0.295" (7.50mm) |
