Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1265CC-1R5MIND SMD 1.5UH 31A |
1,222 | - |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 31 A | 45A | Shielded | 2.8mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRP1265CC-3R3MIND SMD 3.3UH 22A |
740 | - |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 22 A | 35A | Shielded | 6.8mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRP1265CC-2R2MIND SMD 2.2UH 25A |
362 | - |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 25 A | 40A | Shielded | 4.8mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRP1265CC-1R0MIND SMD 1UH 35A |
304 | - |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1 µH | ±20% | 35 A | 50A | Shielded | 2.3mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
30900DCIND 90NH 40A SM BEAD 11X10X8 |
300 | - |
|
Datasheet |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±10% | 40 A | 80A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
|
30111DCIND 105NH 40A SM BEAD 11X10X8 |
300 | - |
|
Datasheet |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 105 nH | ±10% | 40 A | 72A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
|
30131DCIND 125NH 40A SM BEAD 11X10X8 |
300 | - |
|
Datasheet |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 125 nH | ±10% | 40 A | 60A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
|
30161DCIND 155NH 40A SM BEAD 11X10X8 |
300 | - |
|
Datasheet |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 155 nH | ±10% | 40 A | 46A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
|
SRP1265CC-6R8MIND SMD 6.8UH 15A |
298 | - |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 15 A | 25A | Shielded | 13.2mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

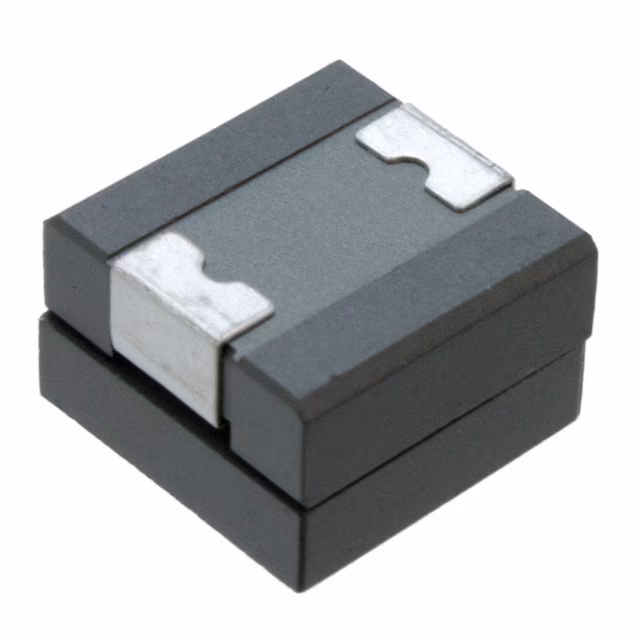

PA1513.441NLTFIXED IND 440NH 30A 0.53MOHM SMD |
1,588 | 0.37 |
|
Datasheet |
PA1513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 440 nH | ±20% | 30 A | 35A | Shielded | 0.53mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
RL110-331K-RCFIXED IND 330UH 930MA 520MOHM TH |
1,013 | 0.39 |
|
Datasheet |
RL110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 930 mA | - | Unshielded | 520mOhm Max | 20 @ 796kHz | 2.8MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
SRP1265CC-8R2MIND SMD 8.2UH 13A |
897 | - |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 13 A | 22A | Shielded | 15.5mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
74477724FIXED IND 470UH 290MA 3.01OHM SM |
890 | 0.47 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 290 mA | 340mA | Shielded | 3.01Ohm Max | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777218FIXED IND 180UH 510MA 980MOHM SM |
709 | 0.47 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 510 mA | 560mA | Shielded | 980mOhm Max | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744777156FIXED IND 56UH 930MA 350MOHM SMD |
702 | 0.33 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 930 mA | 1.05A | Shielded | 350mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744777926FIXED IND 680UH 230MA 4.63OHM SM |
580 | 0.50 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 230 mA | 280mA | Shielded | 4.63Ohm Max | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SRP1265CC-100MIND SMD 10UH 12A |
455 | - |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 10 µH | ±20% | 12 A | 20A | Shielded | 18mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
CWP3230A-470MIND 47UH 500MA SHLD |
365 | - |
|
Datasheet |
CWP3230A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 100 mA | 150mA | Unshielded | 1.2Ohm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" (3.20mm) |
|
|
IHLP5050FDER6R8MA1IHLP-5050FD-A1 6.8 20% ER E3 |
161 | - |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 11.5 A | 16.5A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
P1812-473KFIXED IND 47UH 260MA 2.064OHM SM |
500 | 0.36 |
|
Datasheet |
P1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 260 mA | 366mA | Unshielded | 2.064Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
