Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAXHG6060YEL470MMRINDUCTOR WIRE WOUND 47UH SMD |
2,995 | - |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.55A | Unshielded | 272mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
B82144B1106J000FIXED IND 10MH 85MA 42 OHM TH |
2,974 | 0.08 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 85 mA | - | Unshielded | 42Ohm Max | 50 @ 79.6kHz | 750kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|

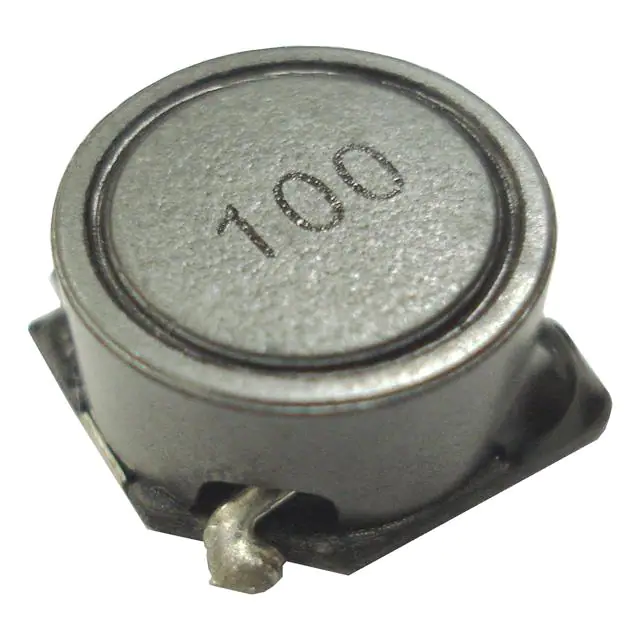

BPSF00070745100M00INDUCTOR POWER |
2,965 | 0.07 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.78 A | 1.3A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LAXHG6060YEL1R5NMRINDUCTOR WIRE WOUND 1.5UH SMD |
2,940 | - |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 5.5 A | 10A | Unshielded | 19mOhm Max | - | 77MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
L06031R2BGSTRTHIN FILM, ACCU-L INDUCTOR - 060 |
2,739 | - |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.2 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 49 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
ASPI-0428S-560M-TFIXED IND 56UH 410MA 624.5 MOHM |
1,998 | 0.08 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 410 mA | - | Shielded | 624.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
LAXHG6060YEL150MMRINDUCTOR WIRE WOUND 15UH SMD |
1,400 | - |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 2.15 A | 3.1A | Unshielded | 105mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ASPI-0630HI-1R0M-T15FIXED IND 1UH 11A 10 MOHM SMD |
5,951 | 0.06 |
|
Datasheet |
ASPI-0630HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 11 A | 20.5A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
PA5402.682NLTFIXED IND 6.8UH 2.1A 172MOHM SMD |
3,000 | 0.08 |
|
Datasheet |
PA5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2.1 A | 2.8A | Shielded | 172mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
PA4338.682NLTFIXED IND 6.8UH 3.6A 24 MOHM SMD |
2,910 | 0.18 |
|
Datasheet |
PA4338.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±20% | 3.6 A | 4.55A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
ASPI-0315FS-1R0N-T2FIXED IND 1UH 2.3A 28 MOHM SMD |
2,000 | 0.08 |
|
Datasheet |
ASPI-0315FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.35 A | 2.32A | Shielded | 39mOhm Max | - | 150MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
SRU2009-1R0YFIXED IND 1UH 1.45A 110 MOHM SMD |
1,500 | 0.08 |
|
Datasheet |
SRU2009 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.45 A | 1.3A | Shielded | 110mOhm Max | 7 @ 7.96MHz | 200MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.039" (1.00mm) |
|
SRU3011-2R2YFIXED IND 2.2UH 920MA 80MOHM SMD |
1,400 | 0.08 |
|
Datasheet |
SRU3011 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 920 mA | 900mA | Shielded | 80mOhm | 7 @ 7.96MHz | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.047" (1.20mm) |
.jpg)
|
74479775147AFIXED IND 470NH 1.4A 100MOHM SMD |
1,175 | 0.12 |
|
Datasheet |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±20% | 1.4 A | 1A | Shielded | 100mOhm | 10 @ 1MHz | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.058" (1.48mm) |
|
B82432T1182K000FIXED IND 1.8UH 1.05A 130MOHM SM |
6,412 | 0.19 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 1.05 A | - | Unshielded | 130mOhm Max | 10 @ 7.96MHz | 70MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
TMS322512ALM-3R3MTAAFIXED IND 3.3UH 2.3A 0.113OHM SM |
3,892 | - |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 3.3 µH | ±20% | 2.3 A | 2.5A | Shielded | 113mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMS322512ALM-R68MTAAFIXED IND 680NH 4.4A 0.03OHM SMD |
3,140 | - |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 680 nH | ±20% | 4.4 A | 5.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
LAXHG6060YEL3R3MMRINDUCTOR WIRE WOUND 3.3UH SMD |
2,992 | - |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 4 A | 7A | Unshielded | 28mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LAXHG6060YEL6R8MMRINDUCTOR WIRE WOUND 6.8UH SMD |
2,985 | - |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 3.1 A | 5.1A | Unshielded | 52mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LAXHG6060YEL221MMRINDUCTOR WIRE WOUND 220UH SMD |
2,960 | - |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 570 mA | 700mA | Unshielded | 1.32Ohm Max | - | 3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
