Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS80404R7N-10FIXED IND 4.7UH 4.1A 19 MOHM SMD |
2,945 | 0.06 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.9A | Shielded | 19mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS8040220M-10FIXED IND 22UH 2.1A 69 MOHM SMD |
2,875 | 0.06 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.1 A | 2.4A | Shielded | 69mOhm Max | - | 9.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
82332CFIXED IND 3.3UH 950MA 138MOHM SM |
2,450 | 0.15 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 950 mA | - | Unshielded | 138mOhm Max | 18 @ 1MHz | 67MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
82474CFIXED IND 470UH 70MA 16.8OHM SMD |
2,415 | 0.06 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | 70 mA | - | Unshielded | 16.8Ohm Max | 50 @ 800kHz | 9MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
ASPI-0704S-330M-TFIXED IND 33UH 960MA 170MOHM SMD |
2,075 | 0.26 |
|
Datasheet |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 960 mA | - | Shielded | 170mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
KLZ2012MHR3R3ATD69IND,AUTO A2B,3.3UH,0.1MA,~150 |
2,000 | - |
|
Datasheet |
KLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 µH | ±20% | 350 mA | 350mA | Unshielded | 200mOhm | - | - | - | -55°C ~ 150°C | 2 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
744032470WE-LQ SMT INDUCTOR SIZE 1210; L |
1,760 | - |
|
Datasheet |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 146 mA | 400mA | Unshielded | 3Ohm Max | 40 @ 1MHz | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
B82498F3470G001FIXED IND 47NH 600MA 130MOHM SMD |
11,986 | 0.07 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 600 mA | - | Unshielded | 130mOhm Max | 65 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F3221G001FIXED IND 220NH 320MA 700MOHM SM |
11,260 | 0.07 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 320 mA | - | Unshielded | 700mOhm Max | 45 @ 320MHz | 950MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F3821G000FIXED IND 820NH 180MA 1.9OHM SMD |
5,560 | 0.07 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±2% | 180 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
IMC2220ER1R0KFIXED IND 1UH 1.8A 30 MOHM SMD |
3,000 | 0.06 |
|
Datasheet |
IMC-2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±10% | 1.8 A | - | Unshielded | 30mOhm Max | 10 @ 7.96MHz | 95MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.221" L x 0.197" W (5.61mm x 5.00mm) | 0.165" (4.20mm) |
|
|
B82498F1562J000FIXED IND 5.6UH 85MA 4.3 OHM SMD |
2,545 | 0.07 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 85 mA | - | Unshielded | 4.3Ohm Max | 20 @ 7.96MHz | 180MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
IMC2220ER103JFIXED IND 10MH 25MA 150 OHM SMD |
2,457 | 0.06 |
|
Datasheet |
IMC-2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | - | 10 mH | ±5% | 25 mA | - | Unshielded | 150Ohm Max | 15 @ 79.6kHz | 500kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.221" L x 0.197" W (5.61mm x 5.00mm) | 0.165" (4.20mm) |
|
P0751.682NLFIXED IND 6.8UH 4.4A 44 MOHM SMD |
3,140 | - |
|
Datasheet |
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 4.4 A | 4.6A | Unshielded | 44mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0751.472NLFIXED IND 4.7UH 4.8A 33 MOHM SMD |
3,140 | - |
|
Datasheet |
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 4.8 A | 5.4A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

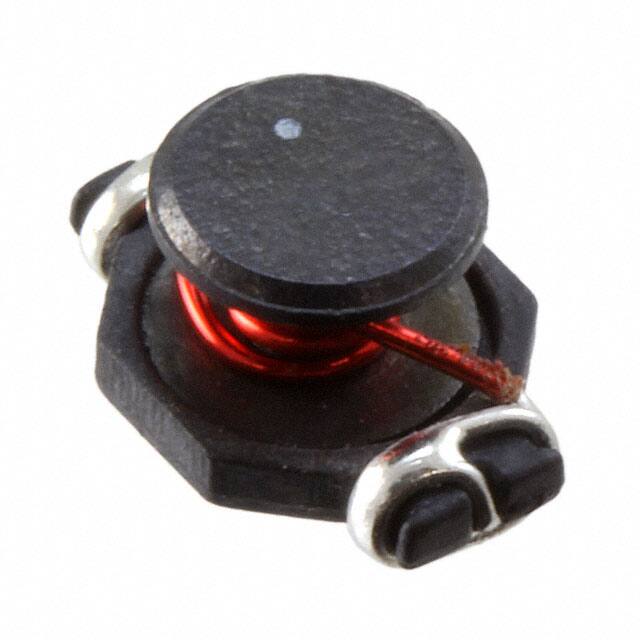

PA0390.471NLFIXED IND 600NH 6A 9.7 MOHM SMD |
3,510 | - |
|
Datasheet |
PA0390NL | Nonstandard | Tray | Active | Wirewound | - | 600 nH | ±20% | 6 A | 7.7A | Unshielded | 9.7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.200" (5.08mm) |
|
|
2176639-5FIXED IND 4.7UH 650MA 0.195OHM |
5,000 | - |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 650 mA | - | Unshielded | 195mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
L04024R7BHNTRFIXED IND 4.7NH 250MA 450MOHM SM |
4,079 | 0.05 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 4.7 nH | ±0.1nH | 250 mA | - | Unshielded | 450mOhm Max | 13 @ 450MHz | 7.5GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
1-2176636-3FIXED IND 10UH 190MA 1.8OHM SMD |
3,000 | - |
|
Datasheet |
3627, Sigma Inductors | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 190 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
LAXHG6060YEL330MMRNDUCTOR WIRE WOUND 33UH SMD |
1,500 | - |
|
- |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 900 mA | 1.75A | Unshielded | 216mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
