Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ1005P22NGT000FIXED IND 22NH 230MA 1.1 OHM SMD |
12,450 | 0.01 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 22 nH | ±2% | 230 mA | - | Unshielded | 1.1Ohm Max | 20 @ 250MHz | 2.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P82NGT000FIXED IND 82NH 160MA 2.3 OHM SMD |
9,500 | 0.01 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 82 nH | ±2% | 160 mA | - | Unshielded | 2.3Ohm Max | 22 @ 250MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQW15AN1N8D0ZDFIXED IND 1.8NH 460MA 0.16OHM SM |
9,470 | 0.01 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 1.8 nH | ±0.5nH | 460 mA | - | Unshielded | 160mOhm Max | 10 @ 250MHz | 16GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P1N3BT000FIXED IND 1.3NH 1.2A 30 MOHM SMD |
8,510 | 0.01 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.3 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 12GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
36550603JR10T3655 0603 R10 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 700MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603JR12T3655 0603 R12 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 120 nH | ±5% | 200 mA | - | Unshielded | 1.4Ohm Max | 8 @ 50MHz | 600MHz | AEC-Q200 | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW15AN47NJ0ZDFIXED IND 47NH 210MA 1.08OHM SMD |
7,840 | 0.01 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 47 nH | ±5% | 210 mA | - | Unshielded | 1.08Ohm Max | 25 @ 200MHz | 2.9GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LQW18AN39NJ80DFIXED IND 39NH 1A 0.16OHM SMD |
7,775 | 0.01 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 39 nH | ±5% | 1 A | - | Unshielded | 160mOhm Max | 40 @ 250MHz | 3.28GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18ANR12J80DFIXED IND 120NH 450MA 0.72OHM SM |
6,196 | 0.01 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 120 nH | ±5% | 450 mA | - | Unshielded | 720mOhm Max | 32 @ 150MHz | 1.65GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18ANR18J80DFIXED IND 180NH 310MA 1.65OHM SM |
4,175 | 0.01 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 180 nH | ±5% | 310 mA | - | Unshielded | 1.65Ohm Max | 25 @ 100MHz | 1.38GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|

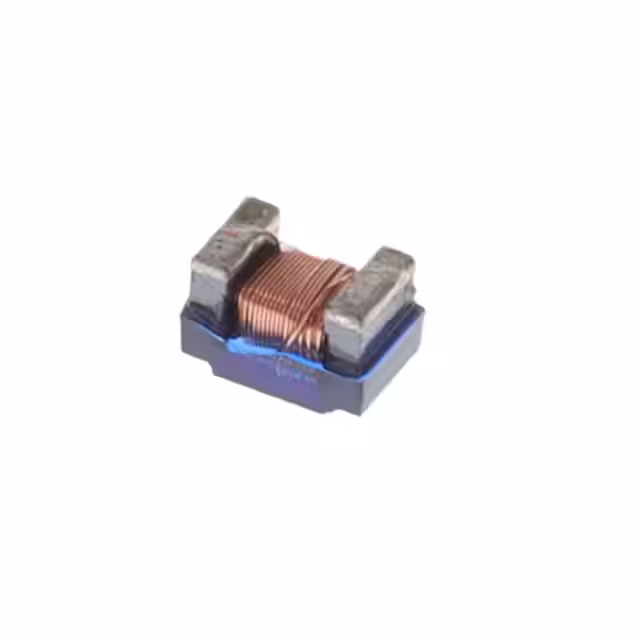

CWF1610-150KIND,1.6X1X1MM,15UH10%,0.24A,NON- |
4,000 | 0.04 |
|
Datasheet |
CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 240 mA | 240mA | Unshielded | 2.6Ohm | 14 @ 2.5MHz | 29MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.043" (1.10mm) |
|
BWCM001207072N7D00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
BWCM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.5nH | 850 mA | - | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.047" L x 0.028" W (1.19mm x 0.70mm) | 0.026" (0.66mm) |
|
LSQPA251818T680KFIXED IND 68UH 200MA 3.64OHM SMD |
3,999 | 0.02 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 200 mA | 200mA | Unshielded | 3.64Ohm Max | - | 9.5MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
|
LQW18AN25NJ80DFIXED IND 25NH 1.2A 0.098OHM SMD |
3,915 | 0.01 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 25 nH | ±5% | 1.2 A | - | Unshielded | 98mOhm Max | 40 @ 250MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
BWCM001207072N4C00INDUCTOR RF |
3,900 | 0.01 |
|
Datasheet |
BWCM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.4 nH | ±0.2nH | 850 mA | - | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.047" L x 0.028" W (1.19mm x 0.70mm) | 0.026" (0.66mm) |
|
|
LQW18AN56NJ80DFIXED IND 56NH 770MA 0.26OHM SMD |
3,862 | 0.01 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 56 nH | ±5% | 770 mA | - | Unshielded | 260mOhm Max | 38 @ 200MHz | 2.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN18NJ80DFIXED IND 18NH 1.4A 0.075OHM SMD |
3,840 | 0.01 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 18 nH | ±5% | 1.4 A | - | Unshielded | 75mOhm Max | 40 @ 250MHz | 4.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
LSQPA251818T221KFIXED IND 220UH 110MA 10.92 OHM |
2,580 | 0.02 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±10% | 110 mA | 115mA | Unshielded | 10.92Ohm Max | - | 5.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSXNE2424KKT3R3MNFIXED IND 3.3UH 770MA 264MOHM SM |
2,497 | 0.02 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 770 mA | 1A | Shielded | 264mOhm Max | - | 56MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LSQPA251818T330KFIXED IND 33UH 320MA 1.95OHM SMD |
2,000 | 0.02 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 320 mA | 270mA | Unshielded | 1.95Ohm Max | - | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
