FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
ZVP2106ASTOAMOSFET P-CH 60V 280MA E-LINE Diodes Incorporated |
5,699 | - |
|
Datasheet |
- | E-Line-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 10V | 5Ohm @ 500mA, 10V | 3.5V @ 1mA | - | ±20V | 100 pF @ 18 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZVP4105ASTOAMOSFET P-CH 50V 175MA E-LINE Diodes Incorporated |
9,895 | - |
|
Datasheet |
- | E-Line-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 175mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | - | ±20V | 40 pF @ 25 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
ZXMN0545G4TAMOSFET N-CH 450V 140MA SOT-223 Diodes Incorporated |
6,658 | 0.26 |
|
- |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 140mA (Ta) | 10V | 50Ohm @ 100mA, 10V | 3V @ 1mA | - | ±20V | 70 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
ZXMP2120G4TAMOSFET P-CH 200V 200MA SOT223 Diodes Incorporated |
7,062 | 0.19 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 200mA (Ta) | 10V | 25Ohm @ 150mA, 10V | 3.5V @ 1mA | - | ±20V | 100 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|

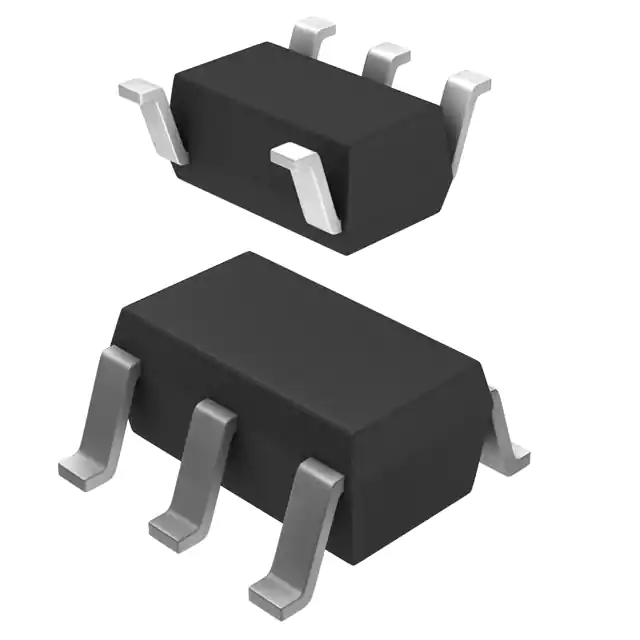

ZXMP2120E5TAMOSFET P-CH 200V 122MA SOT25 Diodes Incorporated |
3,369 | - |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 122mA (Ta) | 10V | 28Ohm @ 150mA, 10V | 3.5V @ 1mA | - | ±20V | 100 pF @ 25 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-25 |
|

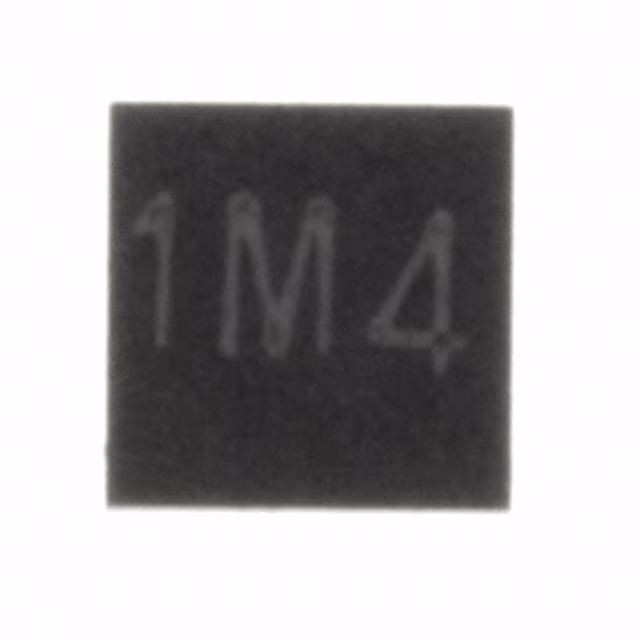

ZXMN2F34MATAMOSFET N-CH 20V 4A DFN322 Diodes Incorporated |
6,401 | - |
|
Datasheet |
- | 3-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 60mOhm @ 2.5A, 4.5V | 1.5V @ 250µA | 2.8 nC @ 4.5 V | ±12V | 277 pF @ 10 V | - | 1.35W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN322 |
|
DMP57D5UFB-7MOSFET P-CH 50V 200MA 3DFN Diodes Incorporated |
8,564 | - |
|
Datasheet |
- | 3-UFDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 200mA (Ta) | 2.5V, 4V | 6Ohm @ 100mA, 4V | 1V @ 250µA | - | ±8V | 29 pF @ 4 V | - | 425mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-3 |
|
DMN3007LSS-13MOSFET N-CH 30V 16A 8SOP Diodes Incorporated |
3,448 | 0.04 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 7mOhm @ 15A, 10V | 2.1V @ 250µA | 64.2 nC @ 10 V | ±20V | 2714 pF @ 15 V | - | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
DMN3112SSS-13MOSFET N-CH 30V 6A 8SOP Diodes Incorporated |
6,843 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 57mOhm @ 5.8A, 10V | 2.2V @ 250µA | - | ±20V | 268 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
DMN2027LK3-13MOSFET N-CH 20V 11.6A TO252-3 Diodes Incorporated |
8,353 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 11.6A (Ta) | 2.5V, 10V | 21mOhm @ 20A, 10V | 2V @ 250µA | 9.1 nC @ 4.5 V | ±12V | 857 pF @ 10 V | - | 2.14W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252-3 |
