FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA120N04T2MOSFET N-CH 40V 120A TO263 Littelfuse Inc. |
6,049 | 0.50 |
|
Datasheet |
TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 6.1mOhm @ 25A, 10V | 4V @ 250µA | 58 nC @ 10 V | ±20V | 3240 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTP80N12T2MOSFET N-CH 120V 80A TO220AB Littelfuse Inc. |
4,350 | 0.58 |
|
Datasheet |
TrenchT2™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 80A (Tc) | 10V | 17mOhm @ 40A, 10V | 4.5V @ 100µA | 80 nC @ 10 V | ±20V | 4740 pF @ 25 V | - | 325W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IXTA1R4N100PTRLMOSFET N-CH 1000V 1.4A TO263 Littelfuse Inc. |
2,480 | 0.41 |
|
- |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.4A (Tc) | 10V | 11.8Ohm @ 700mA, 10V | 4.5V @ 50µA | 17.8 nC @ 10 V | ±20V | 450 pF @ 25 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IXTY1R4N100PMOSFET N-CH 1000V 1.4A TO252 Littelfuse Inc. |
7,480 | 0.52 |
|
Datasheet |
Polar | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.4A (Tc) | 10V | 11Ohm @ 500mA, 10V | 4.5V @ 50µA | 17.8 nC @ 10 V | ±20V | 450 pF @ 25 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
IXTP1R4N100PMOSFET N-CH 1000V 1.4A TO220AB Littelfuse Inc. |
4,678 | 0.52 |
|
Datasheet |
Polar | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.4A (Tc) | 10V | 11Ohm @ 500mA, 10V | 4.5V @ 50µA | 17.8 nC @ 10 V | ±20V | 450 pF @ 25 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|

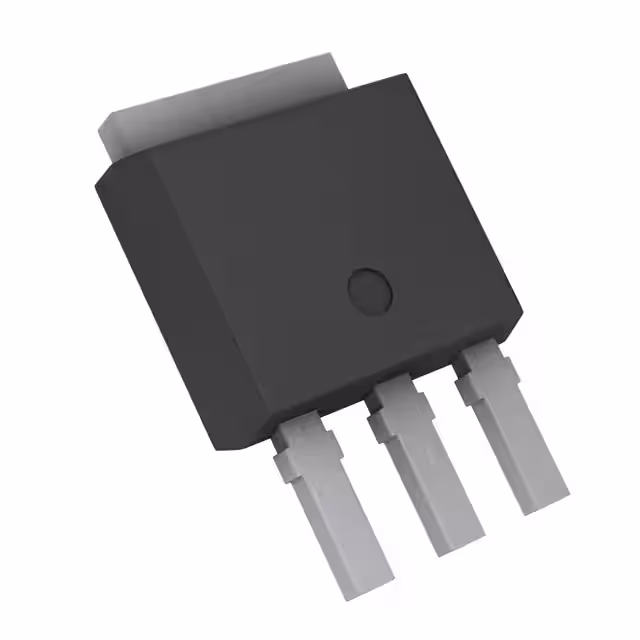

IXTU4N70X2MOSFET N-CH 700V 4A TO251 Littelfuse Inc. |
9,336 | 0.53 |
|
Datasheet |
Ultra X2 | TO-251-3 Stub Leads, IPAK | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 4A (Tc) | 10V | 850mOhm @ 2A, 10V | 4.5V @ 250µA | 11.8 nC @ 10 V | ±30V | 386 pF @ 25 V | - | 80W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-251-3 |
|
IXTY90N055T2-TRLMOSFET N-CH 55V 90A TO252 Littelfuse Inc. |
7,797 | 0.34 |
|
- |
TrenchT2™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 90A (Tc) | 10V | 8.4mOhm @ 25A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±20V | 2770 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IXTY2N100P-TRLMOSFET N-CH 1000V 2A TO252 Littelfuse Inc. |
5,676 | 0.35 |
|
- |
Polar | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Tc) | 10V | 7.5Ohm @ 1A, 10V | 4.5V @ 100µA | 24.3 nC @ 10 V | ±20V | 655 pF @ 25 V | - | 86W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IXTA90N075T2-TRLMOSFET N-CH 75V 90A TO263 Littelfuse Inc. |
5,251 | 0.42 |
|
- |
TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 90A (Tc) | 10V | 10mOhm @ 45A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 3290 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IXTA140N055T2MOSFET N-CH 55V 140A TO263 Littelfuse Inc. |
6,418 | 0.54 |
|
Datasheet |
TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 140A (Tc) | 10V | 5.4mOhm @ 50A, 10V | 4V @ 250µA | 82 nC @ 10 V | ±20V | 4760 pF @ 25 V | - | 250W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
