FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCMT250N65S3MOSFET N-CH 650V 12A POWER88 |
3,000 | 0.25 |
|
Datasheet |
SuperFET® III | 4-PowerTSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 250mOhm @ 6A, 10V | 4.5V @ 1.2mA | 24 nC @ 10 V | ±30V | 1010 pF @ 400 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power88 |
|

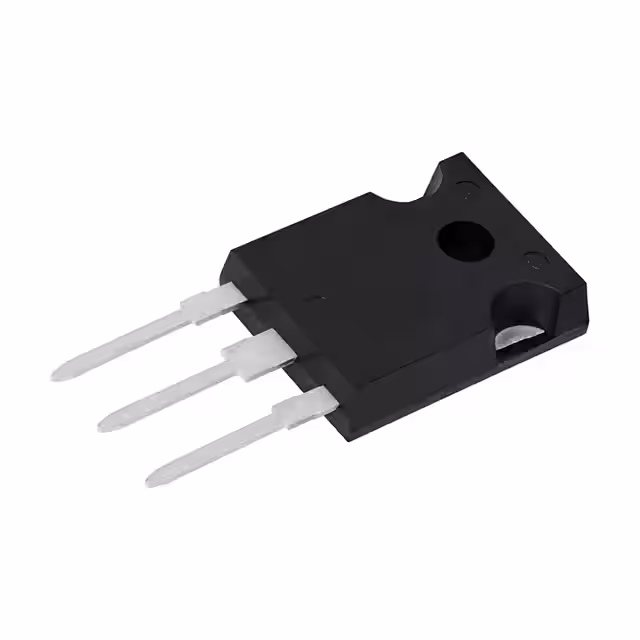

SIHG24N80AE-GE3MOSFET N-CH 800V 21A TO247AC |
460 | 0.86 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 21A (Tc) | - | 184mOhm @ 10A, 10V | 4V @ 250µA | 89 nC @ 10 V | ±30V | 1836 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
R6020JNZ4C13MOSFET N-CH 600V 20A TO247G |
355 | 1.77 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 15V | 234mOhm @ 10A, 15V | 7V @ 3.5mA | 45 nC @ 15 V | ±30V | 1500 pF @ 100 V | - | 252W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247G |
|
IXFP22N65X2MMOSFET N-CH 650V 22A TO220 |
296 | 1.00 |
|
Datasheet |
HiPerFET™, Ultra X2 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 145mOhm @ 11A, 10V | 5V @ 1.5mA | 37 nC @ 10 V | ±30V | 2190 pF @ 25 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
R8005ANJGTLNCH 800V 5A POWER MOSFET : R8005 |
1,984 | 0.86 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 2.1Ohm @ 2.5A, 10V | 5V @ 1mA | 20 nC @ 10 V | ±30V | 500 pF @ 25 V | - | 120W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263S |
|
IXTA75N10PMOSFET N-CH 100V 75A TO263 |
844 | 1.01 |
|
Datasheet |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 10V | 25mOhm @ 500mA, 10V | 5.5V @ 250µA | 74 nC @ 10 V | ±20V | 2250 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
NTP095N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE |
785 | 1.06 |
|
Datasheet |
SuperFET® III | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 95mOhm @ 15A, 10V | 4V @ 2.8mA | 58 nC @ 10 V | ±30V | 2833 pF @ 400 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTA50N20PMOSFET N-CH 200V 50A TO263 |
297 | 1.01 |
|
Datasheet |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 50A (Tc) | 10V | 60mOhm @ 50A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±20V | 2720 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTQ36N30PMOSFET N-CH 300V 36A TO3P |
165 | 1.09 |
|
Datasheet |
PolarHT™ | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 36A (Tc) | 10V | 110mOhm @ 18A, 10V | 5.5V @ 250µA | 70 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
STF15N95K5MOSFET N-CH 950V 12A TO220FP |
991 | 0.98 |
|
Datasheet |
SuperMESH5™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 12A (Tc) | 10V | 500mOhm @ 6A, 10V | 5V @ 100µA | 40 nC @ 10 V | ±30V | 900 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STP19NM50NMOSFET N-CH 500V 14A TO220AB |
972 | 0.87 |
|
Datasheet |
MDmesh™ II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4V @ 250µA | 34 nC @ 10 V | ±25V | 1000 pF @ 50 V | - | 110W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|

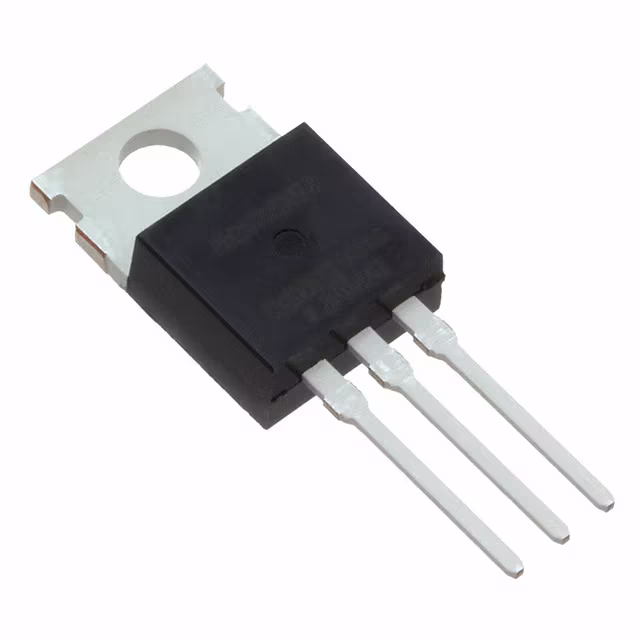

IXFP4N85XMOSFET N-CH 850V 3.5A TO220AB |
300 | 0.81 |
|
Datasheet |
HiPerFET™, Ultra X | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 3.5A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 5.5V @ 250µA | 7 nC @ 10 V | ±30V | 247 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (IXFP) |
|
NVB150N65S3FMOSFET N-CH 650V 24A D2PAK-3 |
1,483 | 0.87 |
|
Datasheet |
SuperFET® III, FRFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 150mOhm @ 12A, 10V | 5V @ 540µA | 43 nC @ 10 V | ±30V | 1999 pF @ 400 V | - | 192W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|

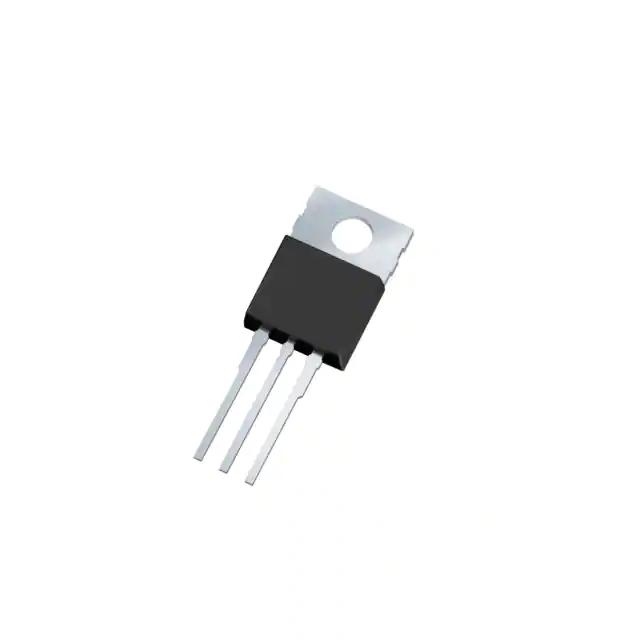

IPP60R105CFD7XKSA1MOSFET N CH |
157 | 1.33 |
|
Datasheet |
CoolMOS™ CFD7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 105mOhm @ 9.3A, 10V | 4.5V @ 470µA | 42 nC @ 10 V | ±20V | 1752 pF @ 400 V | - | 106W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
STF33N60DM6MOSFET N-CH 600V 25A TO220FP |
505 | 1.12 |
|
Datasheet |
MDmesh™ M6 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 128mOhm @ 12.5A, 10V | 4.75V @ 250µA | 35 nC @ 10 V | ±25V | 1500 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
IXFP18N65X2MOSFET N-CH 650V 18A TO220AB |
298 | 1.02 |
|
Datasheet |
HiPerFET™, Ultra X2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 200mOhm @ 9A, 10V | 5V @ 1.5mA | 29 nC @ 10 V | ±30V | 1520 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
FCP110N65FMOSFET N-CH 650V 35A TO220-3 |
793 | 0.91 |
|
Datasheet |
FRFET®, SuperFET® II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 110mOhm @ 17.5A, 10V | 5V @ 3.5mA | 145 nC @ 10 V | ±20V | 4895 pF @ 100 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STL31N65M5MOSFET N-CH 650V 15A PWRFLAT88 |
2,862 | 0.58 |
|
Datasheet |
MDmesh™ V | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 2.8A (Ta), 15A (Tc) | 10V | 162mOhm @ 11A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±25V | 1865 pF @ 100 V | - | 2.8W (Ta), 125W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|
AUIRFR4620TRLMOSFET N-CH 200V 24A DPAK |
5,650 | 0.75 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 200 V | 24A (Tc) | 10V | 78mOhm @ 15A, 10V | 5V @ 100µA | 38 nC @ 10 V | ±20V | 1710 pF @ 50 V | - | 144W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
R6018JNJGTLMOSFET N-CH 600V 18A LPTS |
502 | 0.89 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 15V | 286mOhm @ 9A, 15V | 7V @ 4.2mA | 42 nC @ 15 V | ±30V | 1300 pF @ 100 V | - | 220W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LPTS |
