FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SK303100LMOSFET N-CH 100V 15A U-G1 Panasonic Electronic Components |
2,618 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 4V, 10V | 135mOhm @ 8A, 10V | 2.5V @ 1mA | - | ±20V | 300 pF @ 10 V | - | 1W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-G1 |
|
SK8603170LMOSFET N-CH 30V 20A/59A 8HSO Panasonic Electronic Components |
7,322 | 0.24 |
|
- |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 59A (Tc) | 4.5V, 10V | 4.1mOhm @ 14A, 10V | 3V @ 2.56mA | 17 nC @ 4.5 V | ±20V | 2940 pF @ 10 V | - | 2.8W (Ta), 24W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|

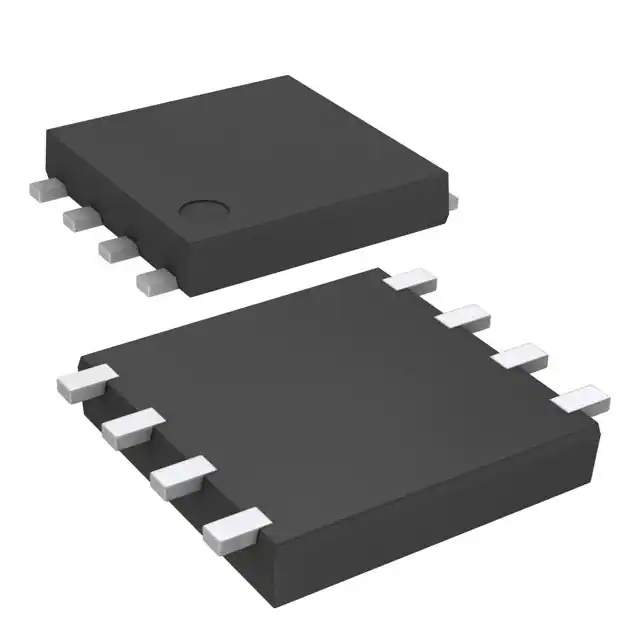

MTMF82310BBFMOSFET N-CH 30V 18A SO8-F1-B Panasonic Electronic Components |
8,332 | 0.33 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 4.2mOhm @ 5A, 10V | 2.5V @ 1mA | - | ±20V | 6000 pF @ 10 V | - | - | 150°C (TJ) | - | - | Surface Mount | SO8-F1-B |
|
SK8403160LMOSFET N-CH 30V 18A 8HSSO Panasonic Electronic Components |
9,519 | 0.25 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 70A (Tc) | 4.5V, 10V | 3.3mOhm @ 14.5A, 10V | 3V @ 3.35mA | 22 nC @ 4.5 V | ±20V | 3920 pF @ 10 V | - | 2W (Ta), 28W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSSO8-F1-B |
|
|
SK8603160LMOSFET N-CH 30V 22A/70A 8HSO Panasonic Electronic Components |
8,971 | 0.23 |
|
- |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 70A (Tc) | 4.5V, 10V | 3.3mOhm @ 17A, 10V | 3V @ 3.35mA | 22 nC @ 4.5 V | ±20V | 3920 pF @ 10 V | - | 2.8W (Ta), 28W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
FK8V03040LMOSFET N CH 33V 10A WMINI8-F1 Panasonic Electronic Components |
8,788 | 0.24 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 33 V | 10A (Ta) | 4.5V, 10V | 10mOhm @ 5A, 10V | 2.5V @ 1.12mA | 7.2 nC @ 4.5 V | ±20V | 750 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
|
SK8603150LMOSFET N-CH 30V 26A/89A 8HSO Panasonic Electronic Components |
3,780 | 0.28 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Ta), 89A (Tc) | 4.5V, 10V | 2.5mOhm @ 20A, 10V | 3V @ 4.38mA | 28 nC @ 4.5 V | ±20V | 5180 pF @ 10 V | - | 2.9W (Ta), 34W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|

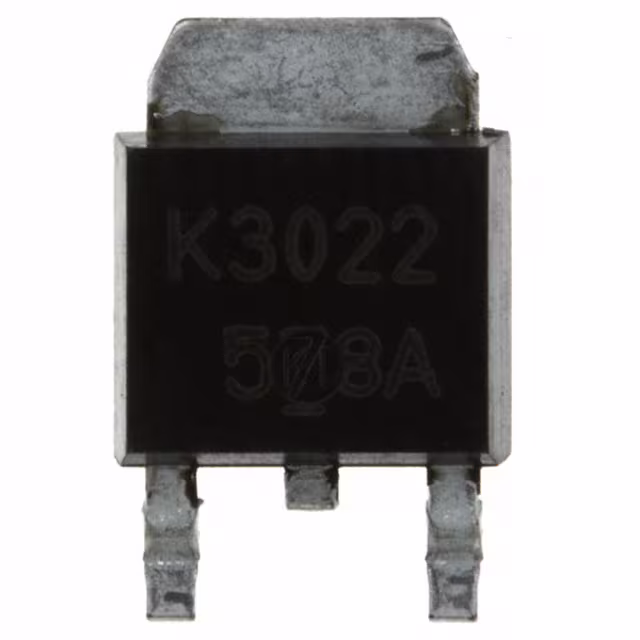

2SK302200LMOSFET N-CH 60V 5A U-G2 Panasonic Electronic Components |
4,928 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 5A (Tc) | 4V, 10V | 130mOhm @ 3A, 10V | 2.5V @ 1mA | - | ±20V | 220 pF @ 10 V | - | 1W (Ta), 10W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-G2 |
|
2SK326800LMOSFET N-CH 100V 15A U-DL Panasonic Electronic Components |
6,666 | - |
|
Datasheet |
- | TO-252-4, DPAK (3 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 10V | 100mOhm @ 12A, 10V | 4V @ 1mA | - | ±20V | 960 pF @ 10 V | - | 1W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-DL |
|
2SK302500LMOSFET N-CH 60V 30A U-DL Panasonic Electronic Components |
7,920 | - |
|
Datasheet |
- | TO-252-4, DPAK (3 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 4V, 10V | 40mOhm @ 15A, 10V | 2.5V @ 1mA | - | ±20V | 1200 pF @ 10 V | - | 1W (Ta), 25W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-DL |
