FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSMN1R0-30YLC,115MOSFET N-CH 30V 100A LFPAK56 Nexperia USA Inc. |
25,561 | 0.47 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 1.15mOhm @ 25A, 10V | 1.95V @ 1mA | 103.5 nC @ 10 V | ±20V | 6645 pF @ 15 V | - | 272W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
BUK966R5-60E,118MOSFET N-CH 60V 75A D2PAK Nexperia USA Inc. |
4,765 | 0.20 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 5V | 5.9mOhm @ 25A, 10V | 2.1V @ 1mA | 48 nC @ 5 V | ±10V | 6900 pF @ 25 V | - | 182W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|

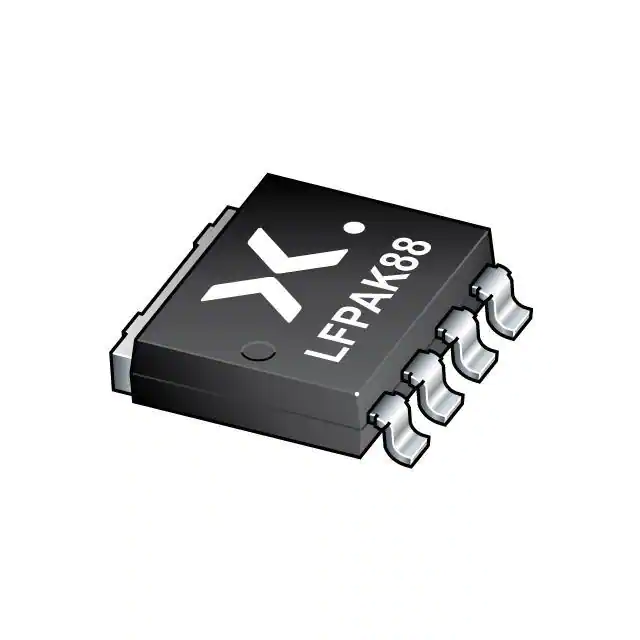

BUK7S2R5-40HJBUK7S2R5-40H/SOT1235/LFPAK88 Nexperia USA Inc. |
844 | 0.47 |
|
Datasheet |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 140A (Tc) | 10V | 2.51mOhm @ 25A, 10V | 3.6V @ 1mA | 54 nC @ 10 V | +20V, -10V | 3793 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK88 (SOT1235) |
|
|
PSMN1R5-40YSDXMOSFET N-CH 40V 240A LFPAK56 Nexperia USA Inc. |
4,067 | 0.48 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 1.5mOhm @ 25A, 10V | 3.6V @ 1mA | 99 nC @ 10 V | ±20V | 7752 pF @ 20 V | Schottky Diode (Body) | 238W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PSMN3R4-30BLE,118MOSFET N-CH 30V 120A D2PAK Nexperia USA Inc. |
3,542 | 0.20 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 4.5V, 10V | 3.4mOhm @ 25A, 10V | 2.15V @ 1mA | 81 nC @ 10 V | ±20V | 4682 pF @ 15 V | - | 178W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
PSMN0R9-25YLDXMOSFET N-CH 25V 300A LFPAK56 Nexperia USA Inc. |
5,070 | 0.50 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 300A (Tc) | 4.5V, 10V | 0.85mOhm @ 25A, 10V | 2.2V @ 1mA | 89.8 nC @ 10 V | ±20V | 6721 pF @ 12 V | - | 238W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PSMN6R5-80BS,118MOSFET N-CH 80V 100A D2PAK Nexperia USA Inc. |
3,845 | 0.50 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 10V | 6.9mOhm @ 15A, 10V | 4V @ 1mA | 71 nC @ 10 V | ±20V | 4461 pF @ 40 V | - | 210W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
PSMN1R2-25YL,115MOSFET N-CH 25V 100A LFPAK56 Nexperia USA Inc. |
29,817 | 0.55 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 100A (Tc) | 4.5V, 10V | 1.2mOhm @ 15A, 10V | 2.15V @ 1mA | 105 nC @ 10 V | ±20V | 6380 pF @ 12 V | - | 121W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK56; Power-SO8 |
|
|
BUK7Y2R0-40HXMOSFET N-CH 40V 120A LFPAK56 Nexperia USA Inc. |
4,477 | 0.54 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2mOhm @ 25A, 10V | 3.6V @ 1mA | 90.5 nC @ 10 V | +20V, -10V | 5450 pF @ 25 V | - | 217W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
BUK9Y7R0-60ELXSINGLE N-CHANNEL 60 V, 4.5 MOHM Nexperia USA Inc. |
2,558 | 0.52 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 125A (Tc) | 4.5V, 10V | 4.5mOhm @ 25A, 10V | 2.1V @ 1mA | 152 nC @ 10 V | ±10V | 8327 pF @ 25 V | - | 238.4W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
