DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4715KL-07W-B29-P50FAN AXIAL 119X38.4MM 48VDC WIRE |
3,018 | - |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB | 5.28 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B39-P50FAN AXIAL 119X38.4MM 48VDC WIRE |
2,001 | - |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.274 in H2O (68.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.5dB | 7.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
4715KL-07W-B49-P00FAN AXIAL 119X38.4MM 48VDC WIRE |
3,950 | - |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.327 in H2O (81.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB | 9.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B49-P50FAN AXIAL 119X38.4MM 48VDC WIRE |
4,749 | - |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.327 in H2O (81.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.5dB | 9.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
EF80252BX-1000U-S9924VDC FAN 80X25MM TACH/PWM |
2,896 | - |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.1dB(A) | 1.71 W | 3600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80251BX-1000U-S9912VDC FAN 80X25MM TACH/PWM |
3,235 | - |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.1dB(A) | 1.47 W | 3600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-8038S-130-387-22FAN AXIAL 80X37.6MM 12VDC WIRE |
2,484 | 2.42 |
|
Datasheet |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.7dB(A) | 2.88 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|

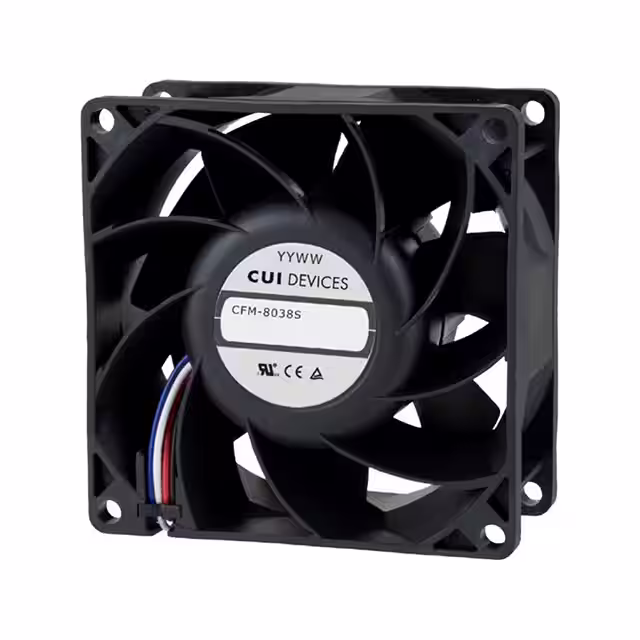

CFM-8038S-230-387-22FAN AXIAL 80X37.6MM 24VDC WIRE |
1,716 | 2.42 |
|
Datasheet |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.7dB(A) | 3.6 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038S-240-449-22FAN AXIAL 80X37.6MM 24VDC WIRE |
4,130 | 2.42 |
|
Datasheet |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 5.76 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038S-140-449-22FAN AXIAL 80X37.6MM 12VDC WIRE |
2,504 | 2.42 |
|
Datasheet |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 4.56 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BG-115-281-22DC AXIAL FAN, 120 MM SQUARE, 25 |
3,128 | - |
|
Datasheet |
CFM-A2BG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 51.8 CFM (1.45m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.7dB(A) | 1.44 W | 1500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
BG1203-B04-300-0FAN BLOWER 120X32MM 12VDC WIRE |
3,129 | - |
|
Datasheet |
12032GA | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.582 in H2O (145.0 Pa) | Ball | Blower | - | 46.5dB | 5.78 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B04-500-0FAN BLOWER 120X32MM 12VDC WIRE |
1,263 | - |
|
Datasheet |
12032GA | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.2 CFM (0.930m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Blower | - | 54.0dB | 11.2 W | 2650 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B05-200-0FAN BLOWER 120X32MM 24VDC WIRE |
3,929 | - |
|
Datasheet |
12032GA | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 22.2 CFM (0.622m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | - | 46.0dB | 4.08 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B05-300-0FAN BLOWER 120X32MM 24VDC WIRE |
2,855 | - |
|
Datasheet |
12032GA | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.582 in H2O (145.0 Pa) | Ball | Blower | - | 50.5dB | 6 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B05-400-0FAN BLOWER 120X32MM 24VDC WIRE |
1,491 | - |
|
Datasheet |
12032GA | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.2 CFM (0.790m³/min) | 0.702 in H2O (175.0 Pa) | Ball | Blower | - | 52.0dB | 7.2 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
DC0402812V2B-3T0FAN AXIAL 40X28MM 12VDC WIRE |
1,889 | 2.89 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.5 CFM (0.826m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 13.2 W | 21000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0402812W2B-3T0FAN AXIAL 40X28MM 12VDC WIRE |
3,971 | 2.58 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 16.8 W | 23000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0922548U2B-3T3FAN 92X25MM 48VDC TACH MOLEX 22- |
1,188 | - |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 14.4 W | 3800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
109P0412A3D01340X28MM 12V,GROOVE FOR LEAD DC L |
1,028 | - |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
