DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

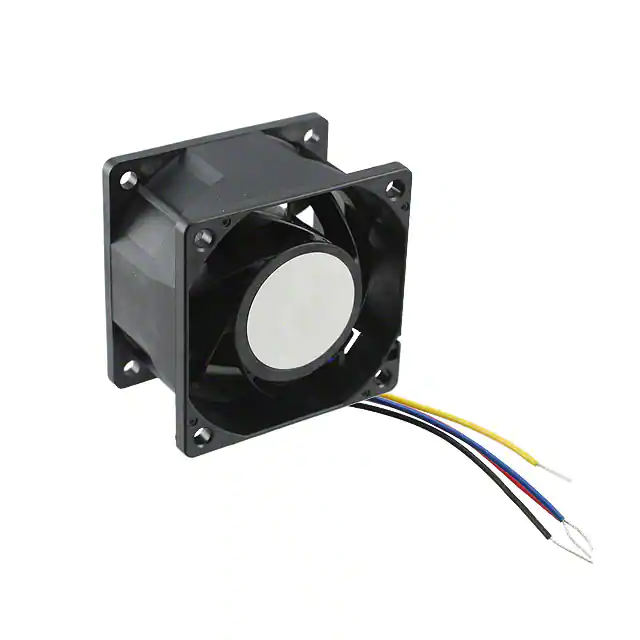

THB0648BEFAN AXIAL 60X38MM 48VDC WIRE Delta Electronics |
2,178 | 4.39 |
|
Datasheet |
THB | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 68.6 CFM (1.92m³/min) | 2.886 in H2O (718.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 16.32 W | 14700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.287 lb (130.18 g) |
|
GFC0624DW-DT48FAN AXIAL DUAL 60X76MM 21VDC Delta Electronics |
2,803 | 6.75 |
|
Datasheet |
GFC | Box | Active | 21VDC | Square - 60mm L x 60mm H | 76.00mm | 69.4 CFM (1.94m³/min) | 3.025 in H2O (753.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.5dB(A) | 31.2 W | 11300 Front, 12500 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.573 lb (260.00 g) |
|
PFB0812UHE-F00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
2,312 | 5.47 |
|
Datasheet |
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 61.0dB(A) | 18.6 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
|
PFB1212SE-00AXIAL 120X38 12VDC PWM Delta Electronics |
4,161 | - |
|
Datasheet |
PFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 260.7 CFM (7.38m³/min) | 2.654 in H2O (661.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 54 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
QFR0624UHP6AXIAL 60X25.4 24V PWM IP68 Delta Electronics |
3,666 | - |
|
Datasheet |
QFR | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 41.3 CFM (1.16m³/min) | 0.742 in H2O (184.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6.24 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
EFB1524HHGFAN AXIAL 172X50.8MM 24VDC WIRE Delta Electronics |
2,542 | 11.79 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 279.7 CFM (7.83m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.5dB(A) | 18.48 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
GFC0812DW-SM00B7PFAN AXIAL DUAL 80X80MM 12VDC Delta Electronics |
2,758 | 9.79 |
|
Datasheet |
GFC - Three-Phase | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 167.0 CFM (4.68m³/min) | 4.170 in H2O (1038.7 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.5dB(A) | 62.4 W | 12000 Front, 10500 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.851 lb (386.01 g) |
|
EFB1724SHGFAN AXIAL 172X50.8MM 24VDC WIRE Delta Electronics |
2,183 | - |
|
Datasheet |
EFB | Box | Active | 24VDC | Round - 172mm Dia | 50.80mm | 325.0 CFM (9.10m³/min) | 1.083 in H2O (269.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 28.08 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
ASB0312HA-AF00FAN AXIAL 30X10MM 12VDC WIRE Delta Electronics |
3,469 | 1.46 |
|
Datasheet |
ASB | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.220 in H2O (54.8 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 960 mW | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.02 lb (9.07 g) |
|
ASB0412VHA-AF0BFAN AXL FRAMELSS 38X10.5MM 12VDC Delta Electronics |
1,314 | 1.24 |
|
Datasheet |
ASB - Frameless | Box | Obsolete | 12VDC | Round - 38mm Dia | 10.50mm | 3.1 CFM (0.087m³/min) | 0.116 in H2O (28.8 Pa) | Sleeve | Tubeaxial, Frameless | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.2 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | 0.025 lb (11.34 g) |
