DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1224VHFAN BLOWER 120X32MM 24VDC WIRE Delta Electronics |
4,006 | 7.22 |
|
Datasheet |
BFB | Bulk | Not For New Designs | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 39.5 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Protection | 56.5dB(A) | 14.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
AFB1524L-AFAN AXIAL 172X25.4MM 24VDC WIRE Delta Electronics |
4,293 | 14.71 |
|
Datasheet |
AFB | Tray | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 7.44 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
SFB0412VH-F00FAN BLOWER CF 196X33MM 12VDC Delta Electronics |
4,213 | 12.74 |
|
Datasheet |
SFB | Bulk | Active | 12VDC | Rectangular/Rounded - 196mm L x 109mm H | 33.00mm | 91.0 CFM (2.55m³/min) | 2.694 in H2O (671.1 Pa) | Ball | Blower, Centrifugal (Dual) | Speed Sensor (Tach) | 67.0dB(A) | 55.2 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.849 lb (385.1 g) |
|
PFB1224UHE-T50FFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
3,380 | 11.21 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|

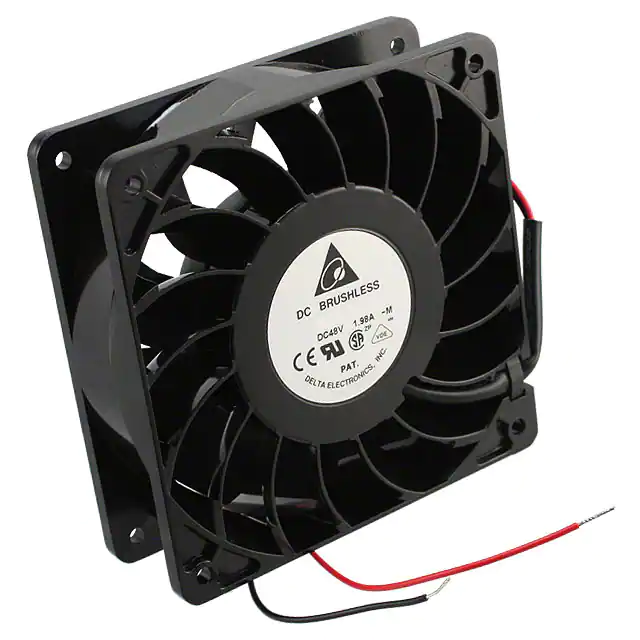

FFB1248XHE-MFAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
3,086 | 14.18 |
|
Datasheet |
FFB | Bulk | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 264.6 CFM (7.41m³/min) | 1.705 in H2O (424.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 73.5dB(A) | 79.2 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
EFB1524SHGFAN AXIAL 172X50.8MM 24VDC WIRE Delta Electronics |
4,282 | 15.60 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 325.0 CFM (9.10m³/min) | 1.083 in H2O (269.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 28.08 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
THD0812VE-00FAN AXIAL 80X80MM 12VDC WIRE Delta Electronics |
4,710 | 22.42 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 195.0 CFM (5.52m³/min) | 7.480 in H2O (1863.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.5dB(A) | 180 W | 15000 Front, 15000 Rear | 4 Wire Leads per Fan | IP51 - Dust Protected | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

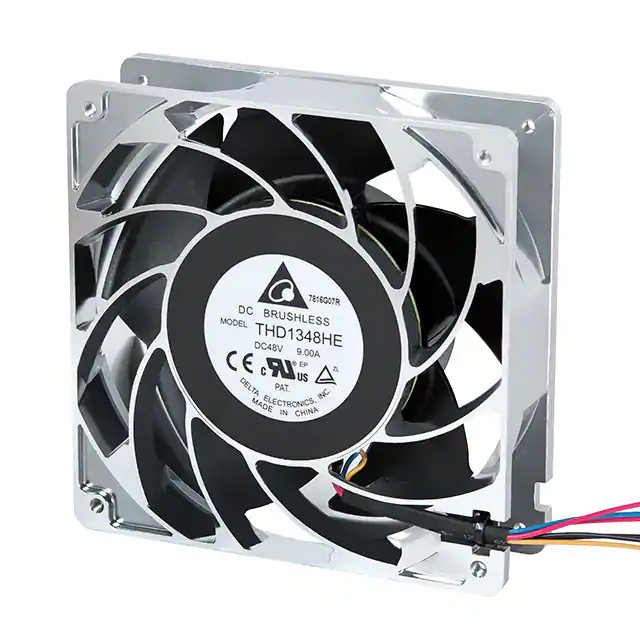

THD1348HEFAN AXIAL 134X38MM 48VDC WIRE Delta Electronics |
3,713 | 15.91 |
|
Datasheet |
THD - Bionic Blade | Bulk | Active | 48VDC | Square - 134mm L x 134mm H | 38.00mm | 490.0 CFM (13.72m³/min) | 7.100 in H2O (1768.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.0dB(A) | 240 W | 12500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.6 lbs (725.7 g) |
|
FFB1424VHG-EPFAN AXIAL 139.7X50.8MM 24VDC Delta Electronics |
4,661 | 25.31 |
|
Datasheet |
FFB | Box | Active | 24VDC | Square - 139.7mm L x 139.7mm H | 50.80mm | 252.1 CFM (7.06m³/min) | 0.644 in H2O (160.4 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 24 W | 3200 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.5 lbs (670.0 g) |
|
|
AUB0812VHB-AF00FAN AXIAL 80X15MM 12VDC WIRE Delta Electronics |
1,065 | 1.54 |
|
Datasheet |
AUB | Box | Not For New Designs | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 42.7 CFM (1.20m³/min) | 0.193 in H2O (48.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.5dB(A) | 3 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UR, VDE | - |
