DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFC0424EN-01EGGFAN AXIAL 40X28MM 24VDC WIRE Delta Electronics |
4,422 | 7.96 |
|
Datasheet |
TFC | Box | Not For New Designs | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 1.979 in H2O (492.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 6 W | 18300 RPM | 4 Wire Leads | IP67 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.115 lb (52.16 g) |
|
QFR1212GHEXUMFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
3,579 | 7.92 |
|
Datasheet |
QFR | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 21.6 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | 0.728 lb (330.22 g) |
|
GFM0812DS-SMB7RFAN AXIAL DUAL 80X56MM 12VDC Delta Electronics |
3,243 | 7.65 |
|
Datasheet |
GFM - Three-Phase | Box | Active | 12VDC | Square - 80mm L x 80mm H | 56.00mm | 93.2 CFM (2.61m³/min) | 4.485 in H2O (1117.2 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.3dB(A) | 28.8 W | 12500 Front, 11000 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.631 lb (286.22 g) |
|

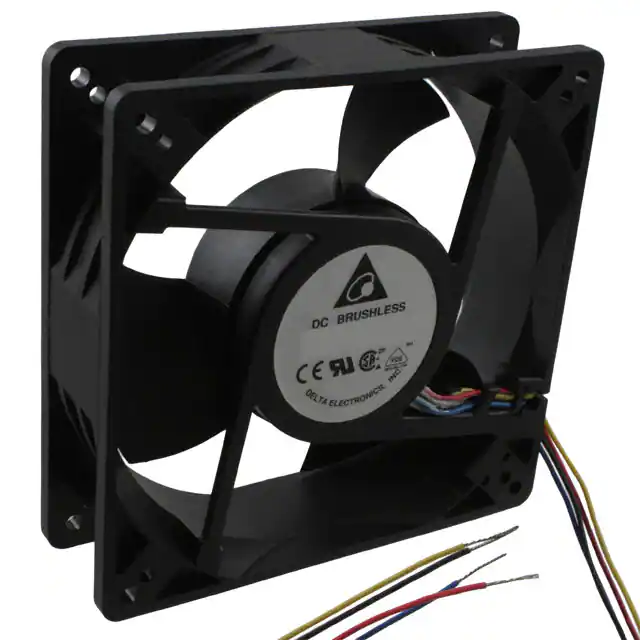

EFB1324SHE-EPFAN AXIAL 127X38MM 24VDC WIRE Delta Electronics |
3,811 | 15.63 |
|
Datasheet |
EFB | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.757 in H2O (188.6 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 18 W | 4600 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
AFB1212M-F00FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
2,931 | 3.99 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.5dB(A) | 2.16 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
AFB0812M-F00FAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
4,480 | 2.00 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 31.4 CFM (0.879m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
AFB1212HHE-R00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
2,495 | 4.25 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 5.52 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1224HHE-F00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
2,325 | 4.42 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 7.2 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
PFB0924GHEFAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
1,632 | 6.17 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 129.3 CFM (3.62m³/min) | 1.015 in H2O (252.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.5dB(A) | 15.12 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|

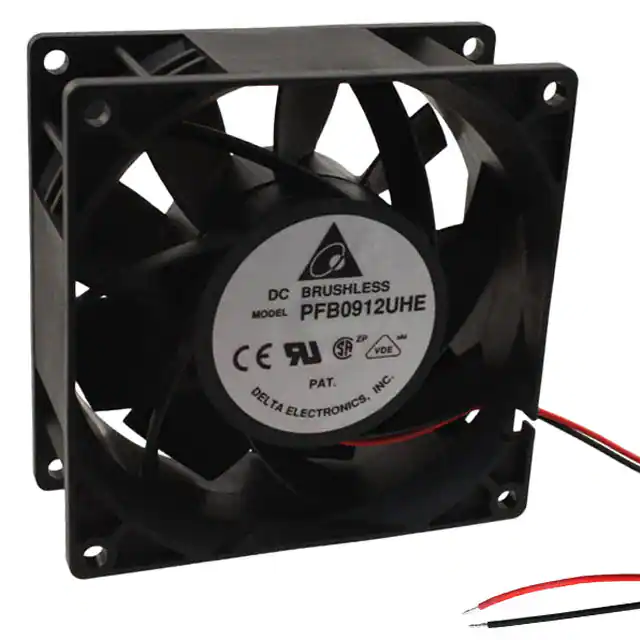

PFB0912UHEFAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
4,712 | 7.66 |
|
Datasheet |
PFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 23.5 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
